Wireless Charging Coils

Explore Wireless Charging Coils parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
2677 QI WIRELESS CHARGING RECEIVER Adafruit Industries LLC	1,883	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	-	-	-	-	3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm)
QPT-0003 Transmitter QST	3,453	42.86	RFQ	Datasheet	-	Bulk	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	35mOhm	100 @ 100kHz	-	-	-	0°C ~ 40°C	2.11" L x 2.11" W x 0.13" H (53.5mm x 53.5mm x 3.3mm)
QPT-0039A Transmitter QST	2,614	42.86	RFQ	Datasheet	-	Box	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	35mOhm	65 @ 100kHz	-	-	-	0°C ~ 40°C	1.97" Dia x 0.09" H (50.0mm x 2.3mm)
WTM905525-12F2-12V-G WIRELESS POWER TRANSFER TX COIL TDK Corporation	1,713	44.13	RFQ	Datasheet	WTM	Box	Obsolete	Transmitter	1 Coil, 1 Layer	-	-	-	-	-	-	-	-	3.43" L x 2.05" W x 0.197" H (87.0mm x 52.0mm x 5.0mm)
IWAS4832FFEB9R7J50 RX 1 COIL 1 LAYER BIFILAR 9.7UH Vishay Dale	3,723	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	9.7µH	±5%	200mOhm	30 @ 200kHz	-	-	-	-	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)
IWAS3827ECEB100J50 RX 1 COIL 1 LAYER 10.7UH Vishay Dale	4,475	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	10.7µH	±5%	183mOhm	30 @ 200kHz	-	-	-	-	1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm)
WT-505060-10K2-A11-G TX 1 COIL 1 LYR 6.3UH TDK Corporation	2,210	13.26	RFQ	Datasheet	WT	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	60mOhm Max	70 @ 100kHz	-	-	-	-30°C ~ 70°C	1.97" Dia x 0.13" H (50.0mm x 3.4mm)
TMX-66-2M7 RX 1 COIL 1 LYR TDK Corporation	4,622	0.00	RFQ	Datasheet	-	Tray	Obsolete	Receiver	1 Coil, 1 Layer	-	-	-	24 @ 100kHz	-	-	-	-	1.46" L x 1.25" W x 0.03" H (38.0mm x 32.0mm x 1.0mm)
WR-483250-15M2-G RX 1 COIL 1 LYR BIFILAR 10.5UH TDK Corporation	3,483	0.00	RFQ	Datasheet	WR	Tray	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	10.5µH	±5%	200mOhm Max	-	-	-	-	-30°C ~ 70°C	1.90" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.1mm)

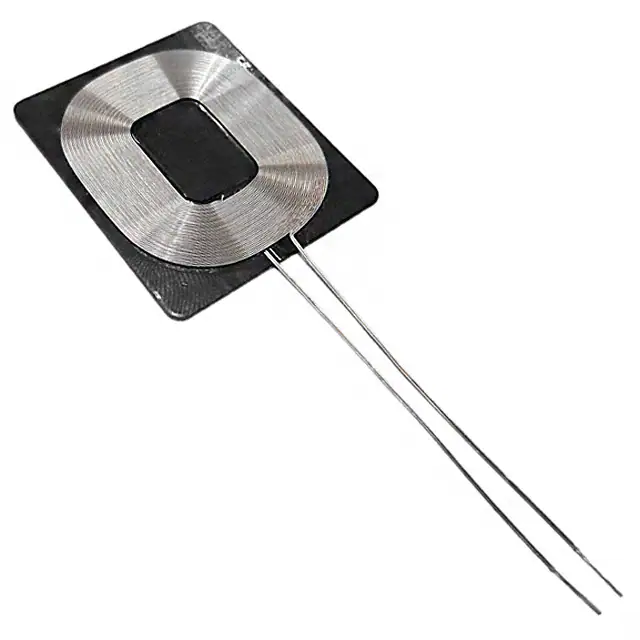

WR-383250-17M2-G RX 1 COIL 1 LYR BIFILAR 11.1UH TDK Corporation	2,546	0.00	RFQ	Datasheet	WR	Tray	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	11.1µH	±5%	270mOhm Max	-	-	-	-	-30°C ~ 70°C	1.50" L x 1.26" W x 0.04" H (38.1mm x 32.0mm x 1.0mm)
AWCCA-48R32H11-C01-B RX 1 COIL 1 LAYER 10.5UH 2.6A Abracon LLC	1,285	0.00	RFQ	Datasheet	AWCCA-48R32	Box	Active	Receiver	1 Coil, 1 Layer	10.5µH	±10%	190mOhm	28 @ 100kHz	2.6A	15A	11MHz	-25°C ~ 85°C	1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm)

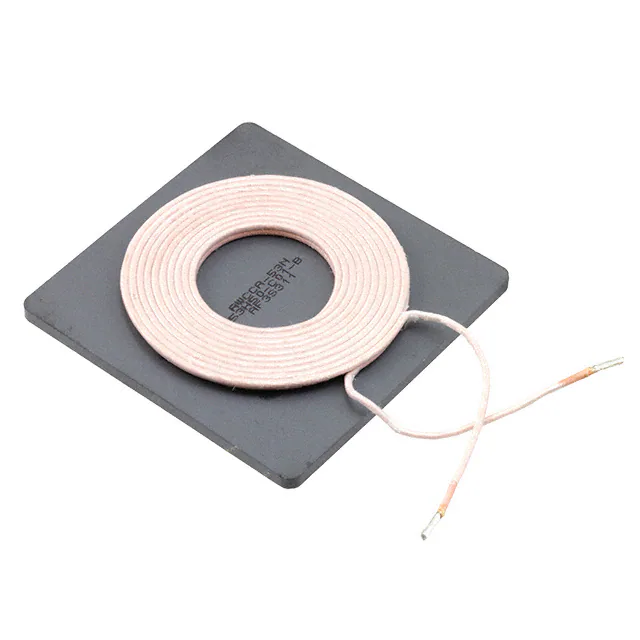

AWCCA-53N53H50-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon LLC	1,788	0.00	RFQ	Datasheet	AWCCA-53N53	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	170 @ 100kHz	5.7A	30A	2.8MHz	-25°C ~ 85°C	2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm)
AWCCA-53N53H50-C02-B RX TX 1 COIL 1 LAYER 6.3UH 11A Abracon LLC	4,086	8.30	RFQ	Datasheet	AWCCA-53N53	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	66 @ 100kHz	11A	40A	6.4MHz	-25°C ~ 85°C	2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm)
AWCCA-107T52H40-C01-B TX 3 COIL 1 LAYER 11.5UH 12UH Abracon LLC	2,065	10.68	RFQ	Datasheet	AWCCA-107T52	Box	Discontinued at Digi-Key	Transmitter	3 Coil, 1 Layer	11.5µH, 12µH	±10%	56mOhm	80 @ 100kHz	7.5A	18A	7MHz	-25°C ~ 85°C	4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm)
IWAS4832ECEB160J50 RX 1 COIL 1 LAYER 16.2UH Vishay Dale	1,069	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	16.2µH	±5%	366mOhm Max	30 @ 200kHz	-	-	-	-	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)
IWAS4832FEEB150J50 RX 1 COIL 1 LAYER 16.2UH Vishay Dale	2,148	0.00	RFQ	Datasheet	-	Bag	Obsolete	Receiver	1 Coil, 1 Layer	16.2µH	±5%	366mOhm	30 @ 200kHz	-	-	-	-	-
SWC4242KB120-100 RX 1 COIL 1 LAYER 12.5UH Laird-Signal Integrity Products	2,536	4.11	RFQ	Datasheet	SWC	Box	Active	Receiver	1 Coil, 1 Layer	12.5µH	±10%	240mOhm Max	20 @ 100kHz	-	-	-	-40°C ~ 85°C	1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm)
WRM483245-15F5-5V-G1 RX 1 COIL 1 LYR 13UH TDK Corporation	1,236	0.00	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm Max	-	-	-	-	-	-
WRM483245-15F5-5V-G2 RX 1 COIL 1 LYR 13UH TDK Corporation	1,573	0.00	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm Max	-	-	-	-	-	-

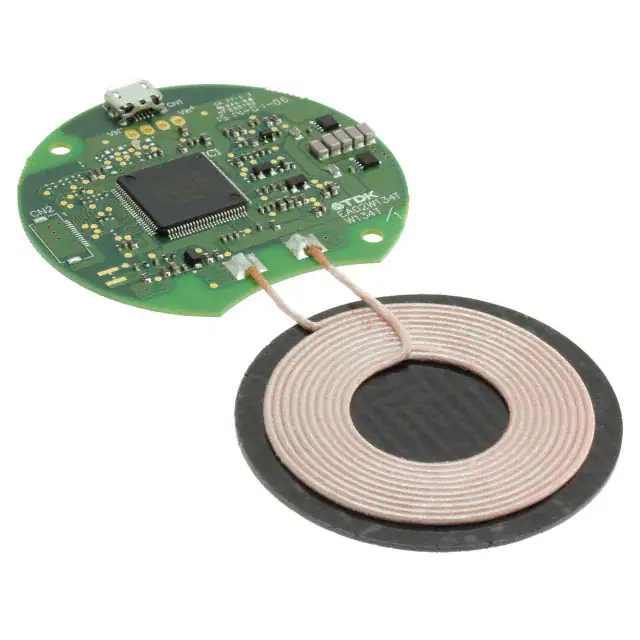

WTM505090-10K2-5V-G1 TX 1 COIL 1 LYR 6.3UH TDK Corporation	3,155	0.00	RFQ	Datasheet	WTM	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm Max	-	-	-	-	-	-

FAQ

Frequently Asked Questions

What are Wireless Charging Coils components used for?

Wireless Charging Coils components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Wireless Charging Coils part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Wireless Charging Coils parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
