TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE91ATVS DIODE 77.8VWM 125VC DO15 |
3,909 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Obsolete | Zener | 1 | - | 77.8V | 86.5V | 125V | 4.8A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
ESD218B102ELSE6327XTSA1TVS DIODE 24VWM 44.5VC TSSLP-2-4 |
3,539 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 24V (Max) | 24.3V | 44.5V | 1.5A (8/20µs) | 67W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-4 |
|
ATV02W120-HFTVS DIODE 12VWM 19.9VC SOD123 |
3,012 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 10.05A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
P6KE100AS_AY_00001TRANSIENT VOLTAGE SUPPRESSOR |
2,984 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-15 |
|
SMFJ18ATVS DIODE 18VWM 29.2VC SOD123FL, |
2,970 |
|
Datasheet | SOD-123F, SMF | SMFJ | Tape & Reel (TR) | Active | - | 1 | - | 18V | 20V | 29.2V | 6.8A | 200W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | SMF/SOD-123FL |
|
P4FL12A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,965 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|

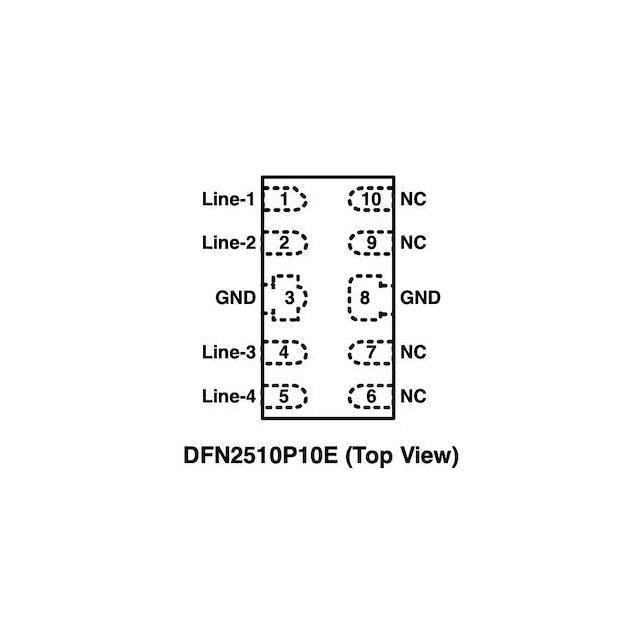

AZ1045-04FLOW CAP ESD HIGH SPEED 4-CH 5V |
2,950 |
|
Datasheet | 10-UFDFN | - | Strip | Active | Zener | 4 | - | 5V (Max) | 6V | 12V (Typ) | - | - | No | HDMI | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
P4HE5.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,940 |
|
Datasheet | SOD-123H | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123HE |
|
|
P4HE13A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,930 |
|
Datasheet | SOD-123H | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123HE |
|
|
P6KE180AS_AY_00001TRANSIENT VOLTAGE SUPPRESSOR |
2,900 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 154V | 171V | 246V | 2.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-15 |
|
|
P4FL30A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,880 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
P4FL14A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
2,789 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|

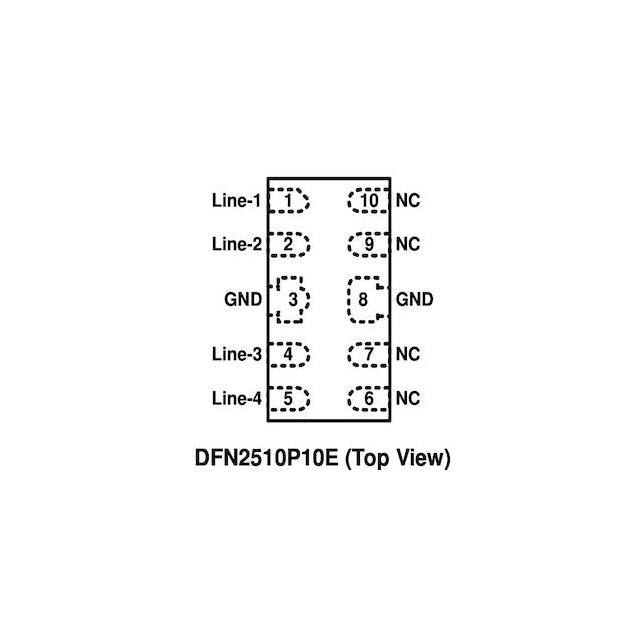

AZ1023-04FLOW CAP ESD HIGH SPEED 4-CH 3.3V |
2,770 |
|
Datasheet | 10-UFDFN | - | Strip | Active | Zener | 4 | - | 3.3V (Max) | 4.5V | 11V (Typ) | - | - | No | HDMI | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
PACDN042YB3RTVS DIODE 5.5VWM 8VC SC70-3 |
7,561 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
|
PJSOT05C-03_R1_00001STANDARD CAPACITANCE TVS ARRAY |
2,310 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 12.6V | 21A (8/20µs) | 250W | No | General Purpose | 250pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
P4FL15A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,805 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
SMBJ48CA-13TVS DIODE 48VWM 77.4VC SMB |
3,000 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 48V | 53.3V | 77.4V | 7.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESD206B102ELE6327XTMA1TVS DIODE 5.5VWM 9.6VC TSLP-2-19 |
3,867 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5.5V (Max) | 6.1V | 9.6V (Typ) | 6A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-19 |
|
ESD207B102ELSE6327XTSA1TVS DIODE 3.3VWM 8.1VC TSSLP-2-3 |
2,652 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 3.65V | 8.1V | 8A (8/20µs) | - | No | General Purpose | 14pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-3 |
.jpg "ESD11B5.0ST5G")
|
ESD11B5.0ST5GTVS DIODE 5VWM 10VC 2DSN |
7,660 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 5.8V | 10V | 2A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DSN (0.60x0.30) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
