TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D5V0M2B3LP10-7TVS DIODE 5VWM 14VC DFN1010-3 |
1,184 |
|
Datasheet | 3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 28pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1010-3 |
|
BZA862AVL,115TVS DIODE 6.2VWM SOT353 |
7,959 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6.2V | - | - | - | 6W | No | General Purpose | 200pF @ 1MHz | - | - | - | Surface Mount | SOT-353 |
|
IP4309CX9,135TVS DIODE 5.5VWM 9-CSP |
8,533 |
|
Datasheet | 9-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V | 6V | - | - | - | Yes | HDMI | - | -35°C ~ 85°C (TA) | - | - | Surface Mount | 9-CSP |
|
PJSD12CW_R1_00001SOD-323, TVS/ESD |
29,833 |
|
Datasheet | SC-90, SOD-323F | PJSD05CW | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
GSECA5B003TVS, SNAPBACK ESD, SINGLE, BI-DI |
15,137 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 6V (Typ) | 10A (8/20µs) | 60W | No | DVI, Ethernet, HDMI, USB | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | ECP0201 |
|
|
PJSD24CW_R1_00001SOD-323, TVS/ESD |
14,225 |
|
Datasheet | SC-90, SOD-323F | PJSD05CW | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.6V | 42V | 4A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

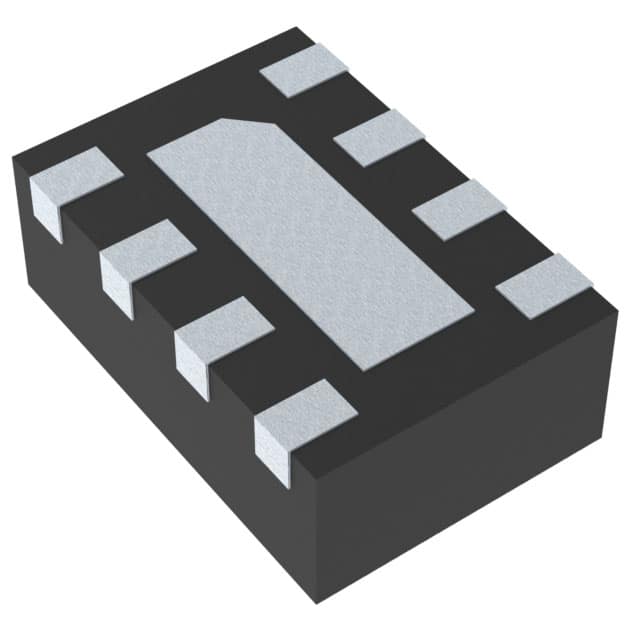

CM1241-04D4TVS DIODE 8.2VWM 9.64VC 8-WDFN |
8,786 |
|
Datasheet | 8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 8.2V | - | 9.64V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-WDFN (1.7x1.35) |
|
BZA968AVL,115TVS DIODE 6.8VWM SOT665 |
8,334 |
|
Datasheet | SOT-665 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6.8V | - | - | - | 6W | No | General Purpose | 16pF @ 1MHz | - | - | - | Surface Mount | SOT-665 |
|
|
SZESD7571MXWT5GTVS DIODE 5.3VWM 15VC 2X2DFNW |
11,307 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 7V | 15V | 1A | - | No | USB | 0.24pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 2-X2DFNW (1x0.6) |
|
|
GSEC12B006TVS, ESD, SINGLE, BI-DIR, LOW CA |
9,062 |
|
Datasheet | SC-76, SOD-323 | GSECxB006 | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.5V | 20V | 12A (8/20µs) | 550W | No | Ethernet, USB | 0.6pF @ 1MHz | -45°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P4FL5.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
8,760 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
NSPU3071N2T5GUNI-DIRECTIONAL SURGE PRO |
8,000 |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1SMC30AT3GTVS DIODE 30VWM 48.4VC SMC |
7,498 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 31A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMBJE120CATVS DIODE 120VWM 193VC SMB |
5,985 |
|
Datasheet | DO-214AA, SMB | SMBJE | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 133V | 193V | 3.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P4SMA170A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
5,390 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 145V | 162V | 234V | 1.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
PJSD08W-AU_R1_000A1SINGLE LINE TVS DIODE FOR ESD PR |
5,000 |
|
Datasheet | SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 8.5V | 13.4V | 1A (8/20µs) | 350W | No | - | 150pF @ 1MHz | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
1.5SMC27AT3TVS DIODE 23.1VWM 37.5VC SMC |
5,313 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 40A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SZESD7272LT1GTVS DIODE 24VWM 40VC SOT23-3 |
4,649 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 24V (Max) | 27V | 40V | 16A | - | No | - | 2pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
P4FL36A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
4,314 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 6.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
P4FL20A_R1_00001SOD-123FL, TVS |
4,185 |
|
Datasheet | SOD-123F | P4FL20A | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
