TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

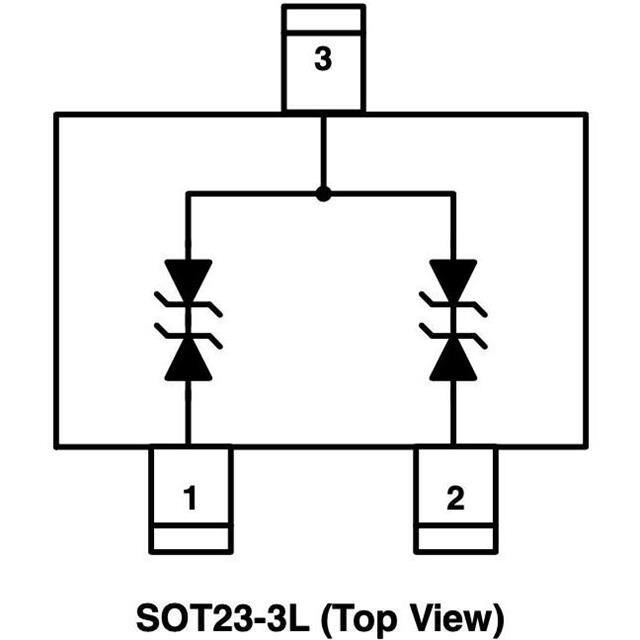

AZ5125-02STVS DEVICE 2-CHANNEL 5V |
2,990 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Strip | Active | Zener | - | 2 | 5V (Max) | 5.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOT-23-3 |
|
AZ4012-01GTVS DEVICE HIGH VOLTAGE 1-CH 12V |
2,980 |
|
Datasheet | SOD-123 | - | Strip | Active | Zener | 1 | - | 12V (Max) | 14.4V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ3005-01GTVS SURGE PROTECTOR 1-CH 5V |
2,970 |
|
Datasheet | SOD-123 | - | Strip | Active | Zener | 1 | - | 5V (Max) | 6V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ4514-01FTVS DEVICE HIGH VOLTAGE 1-CH 14V |
2,950 |
|
Datasheet | 2-UDFN | - | Strip | Active | Zener | 1 | - | 14V (Max) | 15.5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1610P2E |
|

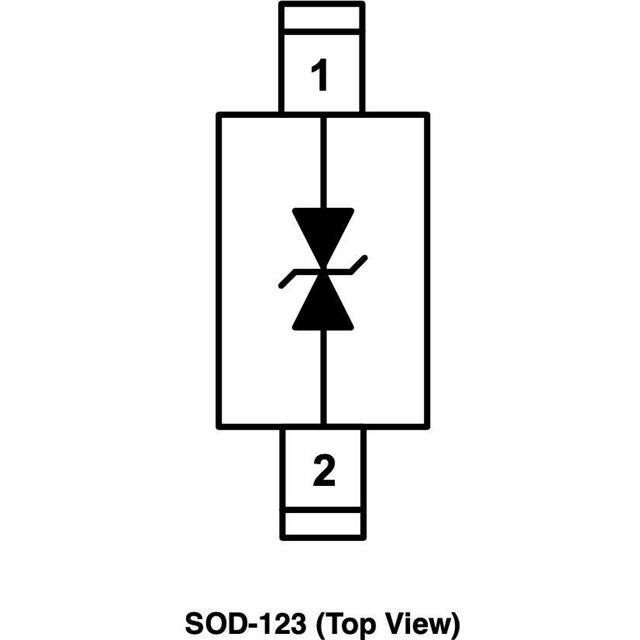

AZ4212-01GTVS DEVICE HIGH VOLTAGE 1-CH 12V |
2,950 |
|
Datasheet | SOD-123 | - | Strip | Active | Zener | - | 1 | 12V (Max) | 13.7V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
AZ5313-02FTVS DEVICE 2-CHANNEL 3.3V |
2,950 |
|
Datasheet | 3-UDFN | - | Strip | Active | Zener | 2 | - | 3.3V (Max) | 4.5V | - | - | - | No | USB | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P3X |
|

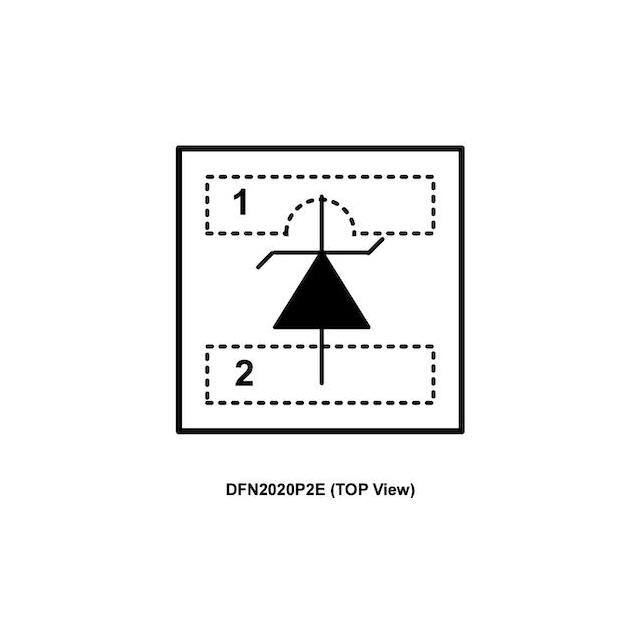

AZ4020-01FTVS DEVICE HIGH VOLTAGE 1-CH 20V |
2,930 |
|
Datasheet | 2-UDFN | - | Strip | Active | Zener | 1 | - | 20V (Max) | 22.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2020P2E |
|

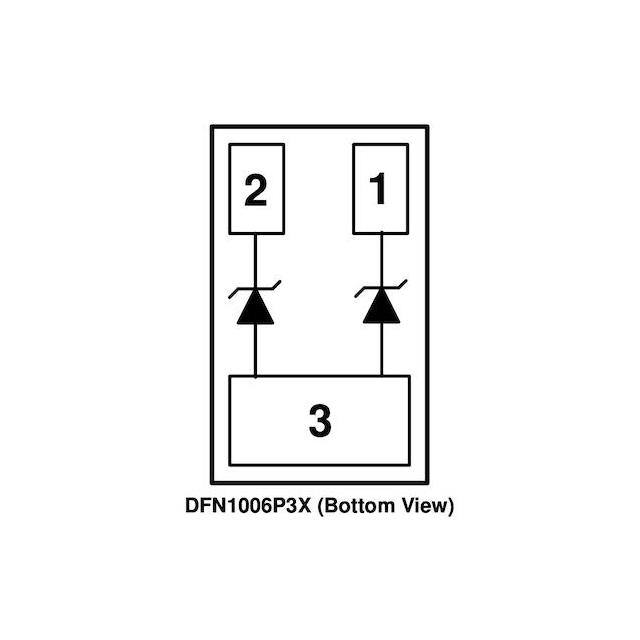

AZ5515-02FTVS DEVICE 2-CHANNEL 5V |
2,910 |
|
Datasheet | 3-UDFN | - | Strip | Active | Zener | 2 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1006P3X |
|
AZ4C36-01BTVS DEVICE 1-CHANNEL 36V |
2,900 |
|
Datasheet | 2-XFBGA, CSPBGA | - | Strip | Active | Zener | - | 1 | 36V (Max) | 40V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | CSP0402P2U |
|
AZ4024-01LTVS DEVICE HIGH VOLTAGE 1-CH 24V |
2,900 |
|
Datasheet | SC-76, SOD-323 | - | Strip | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|
AZ2225-01LTVS DEVICE LOW SPEED 1-CH 5V |
2,800 |
|
Datasheet | SC-76, SOD-323 | - | Strip | Active | Zener | - | 1 | 5V (Max) | 6.1V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|
AZ4615-01LTVS DEVICE HIGH VOLTAGE 1-CH 15V |
2,770 |
|
Datasheet | SC-76, SOD-323 | - | Strip | Active | Zener | - | 1 | 15V (Max) | 17V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
|
AQHV15-01ETGTVS DIODE 15VWM 28VC SOD882 |
2,756 |
|
Datasheet | SOD-882 | AQHV | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | 28V | 5A (8/20µs) | 200W | No | - | 46pF @ 1MHz | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
AZ4524-01FTVS DEVICE HIGH VOLTAGE 1-CH 24V |
2,750 |
|
Datasheet | 2-UDFN | - | Strip | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|
AZ6118-01FTVS DEVICE 1-CHANNEL 1.8V |
2,610 |
|
Datasheet | 0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 1.8V (Max) | 2.2V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2X |
|

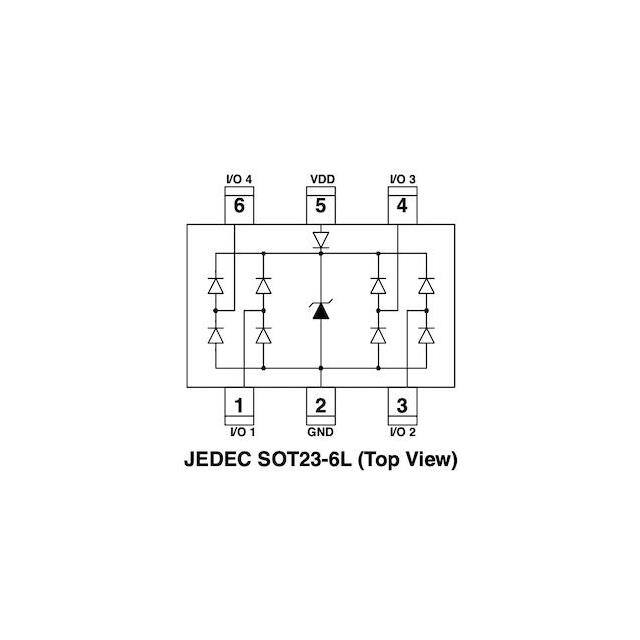

AZC199-04SLOW CAP ESD PROTECTION 4-CH 5V |
2,460 |
|
Datasheet | SOT-23-6 | - | Strip | Active | Zener | 4 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOT-23-6 |
|
AZ5123-01HTVS DEVICE 1-CHANNEL 3.3V |
2,350 |
|
Datasheet | SC-79, SOD-523 | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 4V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-523 |
|
P6KE51CATVS DIODE 43.6VWM 70.1VC DO15 |
2,155 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
P4SMA9.1CA-E3/61TVS DIODE 7.78VWM 13.4VC DO214AC |
1,800 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 29.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PGSMAJ15A R3GTVS DIODE 15VWM 24.4VC DO214AC |
1,619 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
