TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOZ8222DI-05TVS DIODE 5VWM 10VC 3DFN |
6,382 |
|
Datasheet | 3-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 10V | 5.5A (8/20µs) | 50W | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 3-DFN (1.0 x 0.60) |
|
VCAN33A2-03GHE3-18TVS DIODE 33VWM 56VC SOT323 |
4,862 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 33V (Max) | 36V | 56V | 2.5A (8/20µs) | 140W | No | CAN | 8.4pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
ESDH5V0D3BA-TPTVS DIODES |
3,162 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 12V | 30A (8/20µs) | 360W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SMF17A-AQTVS DIODE 17VWM 27.6VC SOD-123FL |
7,225 |
|
Datasheet | SOD-123F | - | Bulk | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 7.25A | 200W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|

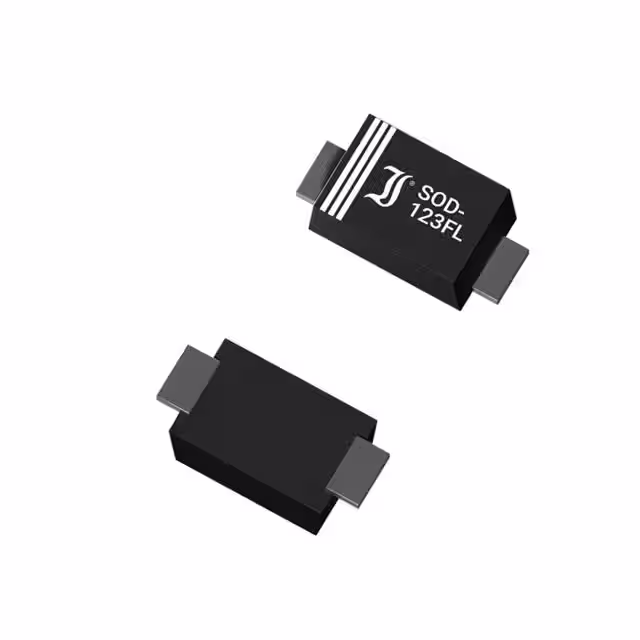

SMF36A-AQTVS DIODE 36VWM 58.1VC SOD-123FL |
8,640 |
|
Datasheet | SOD-123F | - | Bulk | Active | Zener | 1 | - | 36V | 40V | 58.1V | 3.44A | 200W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMF18A-AQTVS DIODE 18VWM 29.2VC SOD-123FL |
3,526 |
|
Datasheet | SOD-123F | - | Bulk | Active | Zener | 1 | - | 18V | 20V | 29.2V | 6.85A | 200W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMF30A-AQTVS DIODE 30VWM 48.4VC SOD-123FL |
5,711 |
|
Datasheet | SOD-123F | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 4.13A | 200W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMF16A-AQTVS DIODE 16VWM 26VC SOD-123FL |
7,978 |
|
Datasheet | SOD-123F | - | Bulk | Active | Zener | 1 | - | 16V | 17.8V | 26V | 7.69A | 200W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMF20A-AQTVS DIODE 20VWM 32.4VC SOD-123FL |
4,758 |
|
Datasheet | SOD-123F | - | Bulk | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 6.17A | 200W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
LBD32C1524L01TVS ESD SOD323 15/24V 44/70V |
5,854 |
|
Datasheet | SC-76, SOD-323 | LBD32C1524L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max), 24V (Max) | 16.5V, 25.4V | 44V, 70V | 5A (8/20µs), 3A (8/20µs) | - | No | - | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P6SMBJ64CATVS DIODE 64VWM 103VC DO-214AA |
4,998 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 64V | 71.1V | 103V | 5.8A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ20ATVS DIODE 20VWM 32.4VC DO-214AA |
5,428 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ75CATVS DIODE 75VWM 121VC DO-214AA |
2,147 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 75V | 83.3V | 121V | 5A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ78ATVS DIODE 78VWM 126VC DO-214AA |
8,450 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 78V | 86.7V | 126V | 4.8A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ75ATVS DIODE 75VWM 121VC DO-214AA |
9,809 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 75V | 83.3V | 121V | 5A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ20CATVS DIODE 20VWM 32.4VC DO-214AA |
5,698 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ110ATVS DIODE 110VWM 177VC DO-214AA |
5,062 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 110V | 122V | 177V | 3.4A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ26ATVS DIODE 26VWM 42.1VC DO-214AA |
6,215 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.3A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ90CATVS DIODE 90VWM 146VC DO-214AA |
5,892 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 90V | 100V | 146V | 4.1A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ64ATVS DIODE 64VWM 103VC DO-214AA |
8,813 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 64V | 71.1V | 103V | 5.8A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
