TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF7.0AHRQGTVS DIODE 7VWM 12VC SOD123W |
9,278 |
|
Datasheet | SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 16.7A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
SMF8.0AHRQGTVS DIODE 8VWM 13.6VC SOD123W |
7,095 |
|
Datasheet | SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 14.7A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
SMF8.5AHRQGTVS DIODE 8.5VWM 14.4VC SOD123W |
5,638 |
|
Datasheet | SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 13.9A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
SD32303TVS DIODE 3.3VWM 7VC SOD323 |
4,906 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4V | 7V | 1A | 300W | No | General Purpose | 800pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
ACPDT-36VEU-HFAUTOMOTIVE DIODE ESD 36VWM 100W |
5,616 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 36V (Max) | 40V | 58V | 1.5A (8/20µs) | 100W | No | - | 20pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
ESD5V0L-TPInterface |
3,365 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Last Time Buy | Zener | 1 | - | 5V (Max) | 6V | 15V | 20A (8/20µs) | 300W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
SM05B-TPInterface |
5,975 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 5V (Max) | 6V | 15V | 20A (8/20µs) | 300W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
CPDF12V0U-HFTVS DIODE 12VWM 24V 1005/SOD323F |
9,782 |
|
Datasheet | 1005 (2512 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 120W | No | General Purpose | 60pF @ 1MHz | - | - | - | Surface Mount | 1005/SOD-323F |
|
|
CPDF5V0TVS DIODE 5VWM 15VC 1005/SOD323F |
4,985 |
|
Datasheet | 1005 (2512 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.1V | 15V | 5A (8/20µs) | 75W | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | 1005/SOD-323F |
|

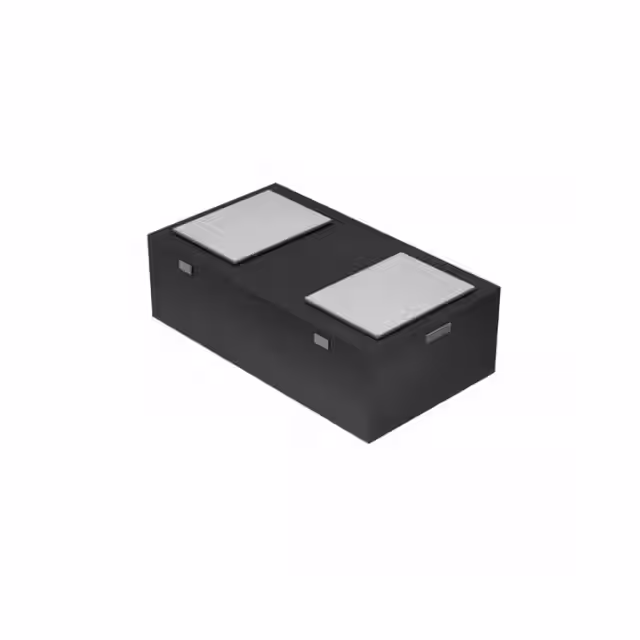

CPDUC36V-HFDIODE ESD 36VWM 58VC 0603C SOD-5 |
9,580 |
|
Datasheet | 0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | 40V | 58V | 1.5A (8/20µs) | 100W | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0603C/SOD-523F |
|
|
P4KE18A-APInterface |
6,947 |
|
Datasheet | DO-204AL, DO-41, Axial | - | Bulk | Active | Zener | 1 | - | 15.3V | 17.1V | 25.5V | 16.1A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
~~2.jpg "SMP11A-E3/85A")
|
SMP11A-E3/85ATVS DIODE 11VWM 18.2VC DO220AA |
3,995 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 11V | 12.2V | 18.2V | 22A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP12-E3/85ATVS DIODE 12VWM 22VC DO220AA |
5,135 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.3V | 22V | 18.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP12A-E3/85ATVS DIODE 12VWM 19.9VC DO220AA |
3,688 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP13-E3/85ATVS DIODE 13VWM 23.8VC DO220AA |
9,038 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 13V | 14.4V | 23.8V | 16.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP13A-E3/85ATVS DIODE 13VWM 21.5VC DO220AA |
8,126 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP14-E3/85ATVS DIODE 14VWM 25.8VC DO220AA |
3,517 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 14V | 15.6V | 25.8V | 15.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP14A-E3/85ATVS DIODE 14VWM 23.2VC DO220AA |
7,207 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP15-E3/85ATVS DIODE 15VWM 26.9VC DO220AA |
7,484 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V | 16.7V | 26.9V | 14.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
|
|
SMP15A-E3/85ATVS DIODE 15VWM 24.4VC DO220AA |
5,801 |
|
Datasheet | DO-220AA | TransZorb®, eSMP® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-220AA (SMP) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
