TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSOT08-HE3-08TVS DIODE 8VWM 19.2VC SOT23 |
4,697 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | - | 160pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT12-HE3-08TVS DIODE 12VWM 26VC SOT23 |
9,244 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | - | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT15-HE3-08TVS DIODE 15VWM 28.8VC SOT23 |
6,127 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 15V (Max) | 16.5V | 28.8V | 8A (8/20µs) | 230W | No | - | 90pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT24-HE3-08TVS DIODE 24VWM 47VC SOT23 |
8,905 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 24V (Max) | 27V | 47V | 5A (8/20µs) | 235W | No | - | 65pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SZESD5Z3.3T5GTVS DIODE 3.3VWM 14.1VC SOD523 |
8,143 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Max) | 5V | 14.1V | 11.2A (8/20µs) | 158W | No | - | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |

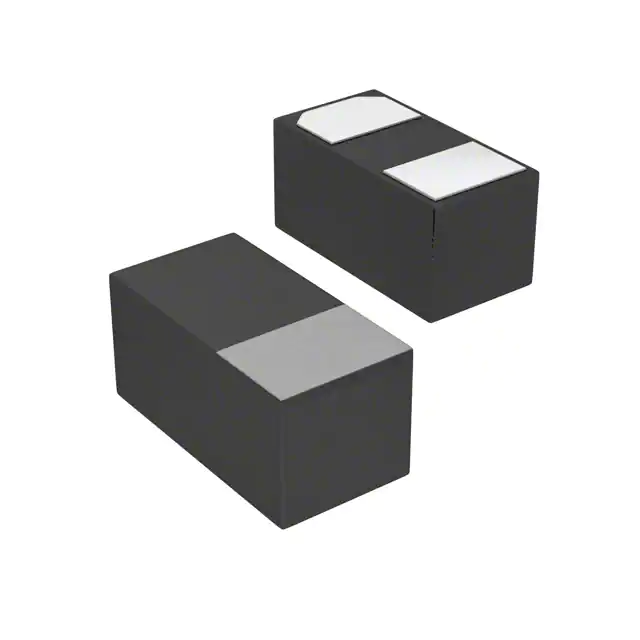

 SC2.jpg "DF2S6.8SC(TPL3)")
|
DF2S6.8SC(TPL3)TVS DIODE 5VWM SC2 |
4,002 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 5V | 6.4V | - | - | - | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | SC2 |
|
ESD3B5V0WS-AQTVS DIODE 5VWM 14.5VC SOD-323F |
9,579 |
|
Datasheet | SC-90, SOD-323F | - | Bulk | Active | Zener | - | 1 | 5V | 6V | 14.5V | 24A (8/20µs) | 350W | No | - | 200pF @ 1MHz | -50°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323F |
|
AOZ8S303BLS-05TVS DIODE 5VWM 6.5VC 2-WLCSP |
9,893 |
|
Datasheet | 0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 6V | 6.5V (Typ) | 9A (8/20µs) | 70W | No | USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
GSOT03-E3-18TVS DIODE 3.3VWM 12.3VC SOT23 |
2,725 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | General Purpose | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT05-E3-18TVS DIODE 5VWM 16VC SOT23 |
5,949 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 5V (Max) | 6V | 16V | 30A (8/20µs) | 480W | No | General Purpose | 260pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT08-E3-18TVS DIODE 8VWM 19.2VC SOT23 |
3,572 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | General Purpose | 160pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT12-E3-18TVS DIODE 12VWM 26VC SOT23 |
6,011 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | General Purpose | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT15-E3-18TVS DIODE 15VWM 28.8VC SOT23 |
9,341 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 15V (Max) | 16.5V | 28.8V | 8A (8/20µs) | 230W | No | General Purpose | 90pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT24-E3-18TVS DIODE 24VWM 47VC SOT23 |
2,673 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 24V (Max) | 27V | 47V | 5A (8/20µs) | 235W | No | General Purpose | 65pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT36-E3-18TVS DIODE 36VWM 71VC SOT23 |
7,340 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 36V (Max) | 39V | 71V | 3.5A (8/20µs) | 248W | No | General Purpose | 52pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
VCAN16A2-03SHE3A18ESD PROTECTION DIODE SOT23 |
2,681 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 16V (Max) | 17.1V | 28V | 5A (8/20µs) | 145W | No | CAN | 16.7pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
CPDH5V0U-HFTVS DIODE 5VWM 12.5VC SOD523 |
5,388 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
NUP1301U-QXNUP1301U-Q/SOT323/SC-70 |
8,895 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | Telecom | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|

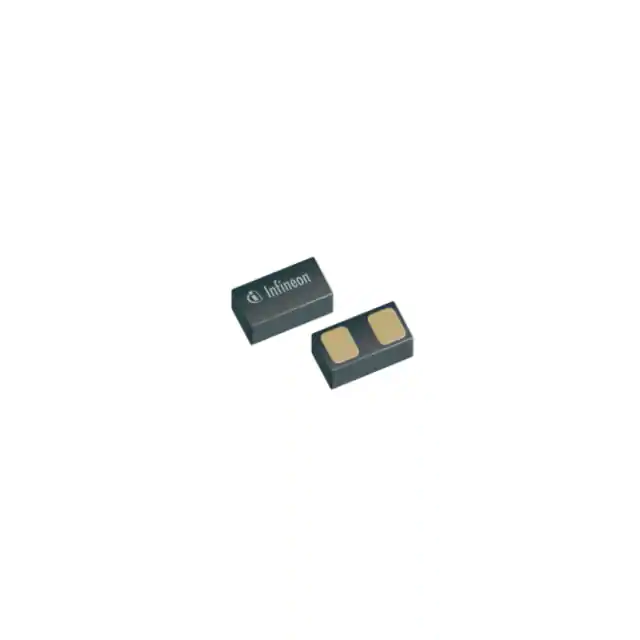

ESD113B102ELE6327XTMA1TVS DIODE 3.6VWM 8VC TSLP-2-20 |
2,311 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 3.6V (Max) | 4V | 8V | 3A (8/20µs) | 36W | No | HDMI | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-20 |
|
|
GSOT03-HG3-08TVS DIODE 3.3VWM 12.3VC SOT23 |
6,870 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | - | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
