RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1513317-1RF ANT 850MHZ/900MHZ PCB TRACE |
1,949 |
|
Datasheet | - | Bulk | Active | 802.15.4, Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | 3 | - | 3dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.798" (20.27mm) | CDMA, GSM, LTE, UMTS, ZigBee™ |
|
2195890-1LTE TERMINAL ANTENNA |
1,663 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Tilt | 2 | 3 | - | 3.2dBi, 3.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.677" (68.00mm) | Bluetooth, CDMA, GSM, ISM, LTE, UMTS, Wi-Fi, ZigBee™ |
|
APAM1368YB13V3.0RF ANT 1.575GHZ CER PATCH IPEX |
624 |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 1dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
|
WCP2400MMCX4RF ANT 2.4GHZ WHIP STR CAB |
698 |
|
Datasheet | WCP | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2.5dBi | 10 W | Cable - 102mm | MMCX | - | - | - | Connector Mount | 2.756" (70.00mm) | Bluetooth, Wi-Fi |
|
W1911RF ANT 850MHZ/900MHZ WHIP STR |
433 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | GSM, WCDMA |
|
W1910-M3G PENTABAND 824-2170MHZ STRAIGH |
345 |
|
Datasheet | Stubby Antenna | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | GSM, WCDMA |
|
PRO-IS-212RF ANT 915MHZ/1.8GHZ PCB TRACE |
296 |
|
Datasheet | Embedded Antenna | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 915MHz, 1.8GHz | 868MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 4 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
|
2-1513472-4UAM ASSEMBLY 500 MM CABLE BLACK |
198 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.5125GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Stamped Metal | 2 | 3 | - | 3dBi | - | Cable - 500mm | MHF4L | - | - | - | - | 0.394" (10.00mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-868-CW-RAH-SMARF ANT 868MHZ WHIP RA SMA MALE |
1,088 |
|
Datasheet | RAH | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 833MHz ~ 903MHz | Whip, Right Angle | 1 | 1.9 | - | 0.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | ISM, LoRa, Sensor Networks, SigFox |
.jpg "CGGP.35.3.A.02")
|

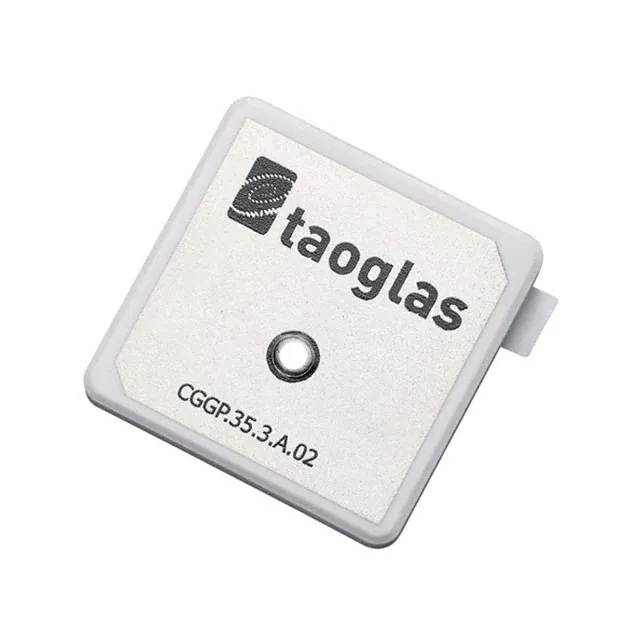

CGGP.35.3.A.02RF ANT 1.575/1.6GHZ CER PATCH |
303 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6GHz | 1.564GHz ~ 1.586GHz, 1.591GHz ~ 1.613GHz | Ceramic Patch | 2 | 1.5 | - | 2dBi | - | - | Pin | - | - | - | Adhesive | 0.138" (3.50mm) | GLONASS, GPS |
|
|
ANT-200421B77RF ANT, 5G/4G/3G/2G/NB-IOT/CAT M |
164 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 3.855GHz | 698MHz ~ 960MHz, 1.71GHz ~ 6GHz | PCB Trace | 2 | 2.7, 2.8 | -6.6dB, -7.2dB | 0.5dBi, 2.1dBi, -2.6dBi, 3.9dBi | 5 W | Cable - 101mm | I-PEX MHF1 | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, 4G, 5G, LPWA |
|
AEACCA115021-S698RF ANT 700/800MHZ BLAD SMA FAKRA |
2,089 |
|
Datasheet | AEAC | Bulk | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.655GHz | Blade | - | 2 | - | 2dBi | 10 W | - | Fakra, SMA | - | - | - | Adhesive | 0.228" (5.80mm) | DCS, GSM, LTE, UMTS |
|
FXUWB20.07.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
111 |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2 | - | 4dBi, 5dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
APAMS-102RF ANT 900MHZ/1.8GHZ FLAT BAR |
288 |
|
Datasheet | APAMS | Bulk | Active | Cellular | Wide Band | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 820MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.9GHz ~ 2.17GHz | Flat Bar | 4 | 2 | - | 1dBi, 2dBi, 2.5dBi, 3dBi | - | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.236" (6.00mm) | CDMA, GPRS, GSM, UMTS |
|
2042870200RF ANT 433MHZ FLAT PATCH CAB ADH |
199 |
|
Datasheet | 204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | ISM |
|

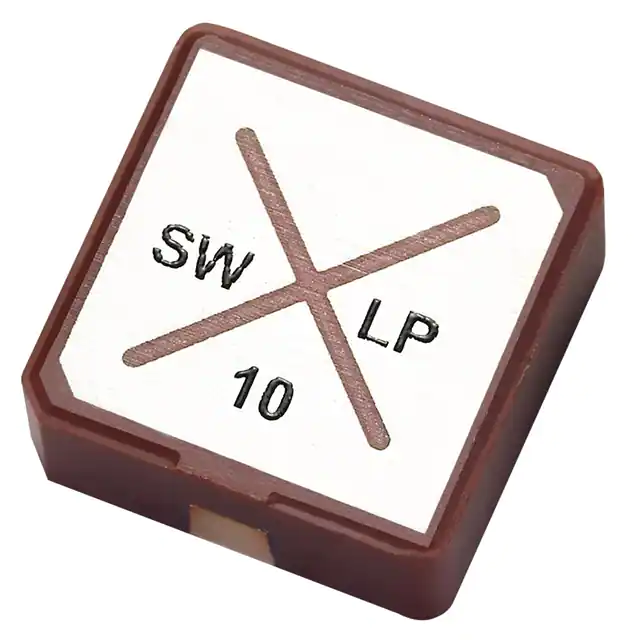

SWLP.2450.10.4.A.02RF ANT 2.4GHZ CER PATCH SLD 10MM |
1,698 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | -1dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
DSGP.1575.25.4.A.02GPS 1575MHZ SMD CERAMIC DIRECT M |
272 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 4.34dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GPS |
|
66089-0406RF ANT 425MHZ WHIP STR U.FL CONN |
798 |
|
Datasheet | 66089 | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 425MHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.047" (179.00mm) | - |
|
RN-SMA4-RPRF ANT 2.4GHZ WHP TILT RP-SMA 4" |
938 |
|
Datasheet | - | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.51GHz | Whip, Tilt | 1 | 1.9 | - | 2.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.560" (90.42mm) | - |
|
APAM0968JL03V2.0RF ANT 1.575GHZ CER PATCH IPEX |
192 |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 1.5 | - | -3dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
