RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

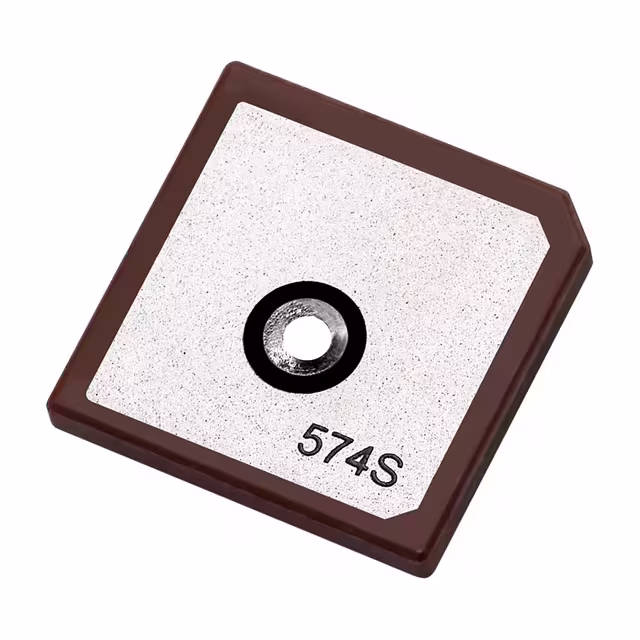

GP.1575.18.2.A.02RF ANT 1.575GHZ CER PATCH PIN |
195 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.079" (2.00mm) | GPS |
|
APAE868R2540JBDB2-TRF ANT 868MHZ CER PATCH PIN ADH |
1,962 |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
W3554B0140TPCB WITH ADHESIVE ANTENNA NPB |
8,082 |
|
Datasheet | Internal PCB Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 5 | - | -4dB, -6dB | 1.9dBi, 3.2dBi | 5 W | Cable - 143mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | General Purpose |
|
W6114B0100ANTENNA FLEX FPC 5G 617-7125 MHZ |
1,742 |
|
Datasheet | W6114 | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.0585GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.5625GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Flat Patch | 6 | - | -5dB, -6dB, -5dB, -6dB, -5dB, -4dB | 1.5dBi, 3.8dBi, 4.6dBi, 5.8dBi, 5dBi, 4.8dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 4G, 5G |
|
PRO-IS-573ANT GSM/NB-IOT 60MM MHF |
352 |
|
Datasheet | Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.795GHz | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | - | -4dB, 5dB | 4dBi | - | Cable - 60mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
ANT-GNFPC-SHL1100M4RF ANT GNSS FPC L1 100MM MHF4 |
794 |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
391 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 2 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|
|
ANT-20287EB56RF ANT, 4G&3G&2G&NB-IOT, OMNI-DI |
109 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 5, 10 | -1.5dB, -3.5dB | -4.5dBi, 4dBi, 0dBi, 4dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 2.028" (51.50mm) | 2G, 3G |
|
ANT-2.4-FPC-SAH50M4ANT 2.4 FPC 12X8 50MM CBL MHF4 |
936 |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
SWDP.2458.15.4.A.02SWDP.2458.15.4.A.02 5DBI 15MM EM |
217 |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.2GHz, 5.675GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.5GHz, 5.5GHz ~ 5.85GHz | Ceramic Patch | 3 | - | - | 5.7dBi, 5.29dBi, 4.03dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Wi-Fi |
|
1052620002RF ANT 866MHZ/915MHZ FLAT 150MM |
697 |
|
Datasheet | 105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.3dBi, 1.3dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
|
ANT-2.4-FPC-SAH100M4ANT 2.4 FPC 12X8 100 CBL MHF4 |
961 |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-W63-FPC-SAH100UFANT WIFI6/6E FPC SQR 100MM UFL |
1,941 |
|
Datasheet | ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|
|
PRO-IS-589INSIDE GSM/NB-IOT ADHESIVE MHF4 |
145 |
|
Datasheet | Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.795GHz | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | PCB Trace | 2 | - | -4dB, 5dB | 4dBi | - | Cable - 60mm | I-PEX MHF4 | - | - | - | Adhesive | 0.031" (0.80mm) | EDGE, GPRS, GSM, LTE, UMTS |
|
|
ANT-190061B77RF ANT, 4G/3G/2G, OMNI-DIRECTION |
213 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 892MHz, 2.2GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 2.8, 4.5 | -4dB, -6.5dB | -3.5dBi, 0.5dBi, 2dBi, 5dBi | 5 W | Cable - 101mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, 4G, LPWA |
|
1003893FT-AA10L0075ANTENNA ASSY, WLANB FT AA10 0075 |
798 |
|
Datasheet | - | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 75mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
|
1003893FT-AA10L0200ANTENNA ASSY, WLANB FT AA10 0200 |
114 |
|
Datasheet | - | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 200mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
W5I-BO-07RF ANT 2.4GHZ PCB TRACE CAB ADH |
270 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | PCB Trace | 1 | 1.9 | -22.36dB | 2.5dBi | - | Cable - 130mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

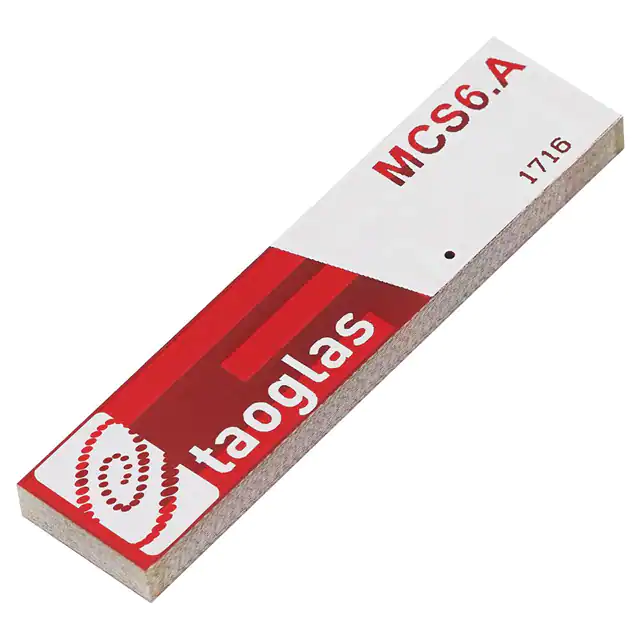

MCS6.ACAT M1 PENTA-BAND CELLULAR LOW P |
7,358 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 6 | - | -10dB | -0.02dBi, -1.05dBi, 2.76dBi, 3.11dBi, 3.26dBi, 3.75dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, EDGE, DCS, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
|
YE0038AATERMINAL ANT DB WIFI SMA MALE |
295 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | 2 | - | 2dBi, 2dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.677" (195.00mm) | Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
