RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3929B0100ANTENNA 0.617-3.9GHZ I-PEXMHF |
207 |
|
Datasheet | GEMINI | Bag | Active | - | Wide Band | 788.5MHz, 2.2GHz, 3.65GHz | 617MHz ~ 3.9GHz | PCB Trace | 3 | - | -6dB | 2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | General Purpose |
|
ANT-2.4-FPC-SAH100UFANT 2.4 FPC 12X8 100MM CBL UFL |
639 |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
AFAC110020-S698RF ANT 4G/LTE FLEX PRINTED |
1,765 |
|
Datasheet | AFAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, LTE |
|
1003468ANTENNA CERAMIC, 2.4GHZ 18X18X4 |
400 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | Ceramic Patch | 1 | 2 | - | 3.83dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

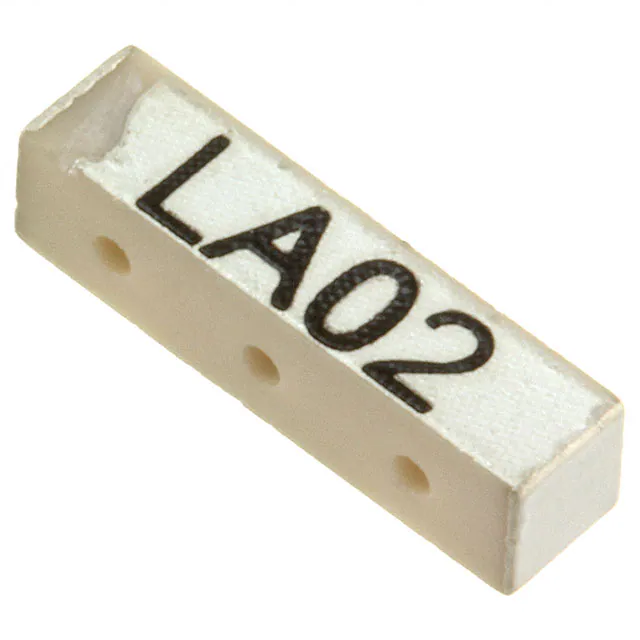

LA.02RF ANT 2.4GHZ CHIP SOLDER SMD |
11,311 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

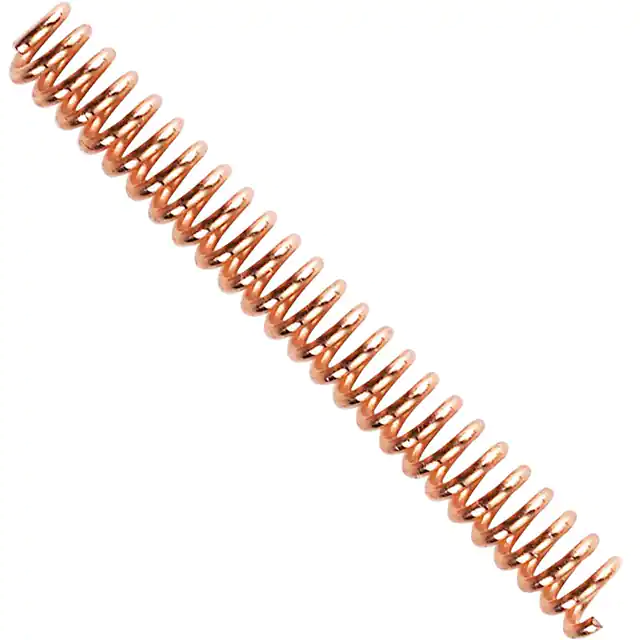

HA.10.ARF ANT 169MHZ HELICAL SOLDER SMD |
148 |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 169MHz | - | Helical | 1 | - | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.004" (25.50mm) | - |
|
W6102B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
500 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 6dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W5100RF ANT 2.4GHZ FLAT PATCH SLDR |
5,187 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Flat Patch | 1 | 3 | - | 1dBi | - | - | Solder | - | - | - | Adhesive | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
|
PRO-OB-572ANT GSM/NB-IOT SMD |
1,406 |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | GSM, UMTS |
|
PA.11RF ANT 2.4GHZ CHIP SOLDER SMD |
9,400 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|
PA.12RF ANT 2.4GHZ CHIP SOLDER SMD |
4,251 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|
WDP.2458.25.4.B.02RF ANT 2.4/5.5GHZ CER PATCH PIN |
822 |
|
Datasheet | - | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -19dB, -5dB | 6dBi, 8dBi | 10 W | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN |
|
ANT-GFPCB1540-UFLRF ANT 830MHZ/2.25GHZ FLAT CAB |
255 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 830MHz, 2.25GHz | 700MHz ~ 960MHz, 1.8GHz ~ 2.7GHz | Flat Patch | 2 | 2 | - | 5dBi | 1 W | Cable - 150mm | - | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
1462340100RF ANT 829MHZ/2.1GHZ FLAT 100MM |
929 |
|
Datasheet | 146234 | Tray | Active | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.8dBi, 2.8dBi, 5.0dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
0600-00057RF ANT 2.4GHZ WHIP STR IPEX MHF |
171 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | -10dB | 2dBi | 1 W | - | U.FL (UMCC), I-PEX MHF4 | - | - | - | Connector Mount | 4.094" (104.00mm) | - |
|
ANT-868-CW-RCSRF ANT 868MHZ WHIP RA RP-SMA MAL |
102 |
|
Datasheet | RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | 3.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
SG901-1066 ANTENNARF ANT 2.4GHZ PCB TRACE IPEX SMD |
13,075 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.49GHz | PCB Trace | 1 | 2 | - | 3.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.087" (2.20mm) | - |
|
ACTPAT154-01-IPRF ANT 1.575GHZ CER PATCH CAB |
138 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | -10dB | 0.5dBi | - | Cable - 63mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
W1037RF ANT 2.4GHZ WHIP TILT 6.5" |
336 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.819" (198.60mm) | Bluetooth, WLAN, Zigbee™ |
|
W5011RF ANT 2.4GHZ WHIP STR SMA MALE |
254 |
|
Datasheet | - | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 5.122" (130.09mm) | ZigBee™ |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
