RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-2.4-FPC-LV100UFANT 2.4 FPC 45X7 100MM CBL UFL |
2,513 |
|
Datasheet | ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
W3P35X8W04-U100D3B0AANT ASSY, WLAN 04 100 D0230 |
1,459 |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.475GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.825GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

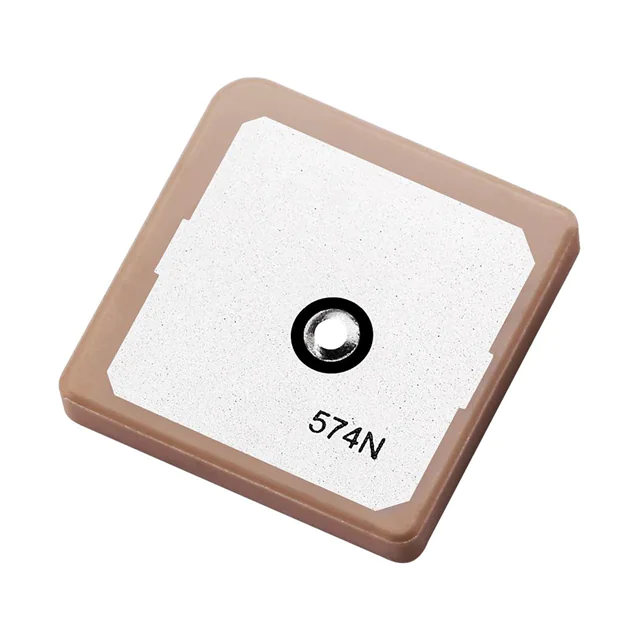

GP.1575.25.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
4,337 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Ceramic Patch | 1 | 1.2 | -10dB | 1.55dBic | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | GPS |
|
1461870200RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
1,862 |
|
Datasheet | 146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 4dBi | - | Cable - 200mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|
ANT-2.4-LPW-125RF ANT 2.4GHZ WHIP PNL-MNT HINGE |
2,232 |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Whip, Tilt | 1 | 1.5 | -14.6dB | 2.8dBi | 10 W | Cable - 125mm | I-PEX MHF1 (U.FL) | - | - | - | Panel Mount | 3.693" (93.79mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
YPR00A0AATERMINAL, HINGE, LTE, SMAM IP66 |
1,089 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Straight | 1 | 4.75 | - | 2dBi | - | - | SMA Male | IP66 | - | - | Connector Mount | 7.650" (194.30mm) | LTE |
|
|
YCGO011AAPATCH ACTIVE GNSS L1 UFL 25X25 |
155 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | Cable - 50mm | I-PEX | - | - | - | Adhesive | 0.256" (6.50mm) | GNSS, GPS |
|
ANT-DB1-LPD-125RF ANT 2.4&5GHZ WHP PNL HING UFL |
765 |
|
Datasheet | LPD | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 1.5 | -14.7dB, -14.2dB | 2.8dB, 4.5dB | 10 W | Cable - 125mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | ISM, U-NII, WiFi, WLAN |
|
1001932FT-AA10L0100RF ANT 2.4GHZ/5GHZ PCB TRACE ADH |
1,012 |
|
Datasheet | Prestta™ | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
EFB2455A3S-20MHF1EMBED,PIFA,200M 2.4/5.5GHZ,MHF1, |
390 |
|
Datasheet | FlexPIFA™ | Bag | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | FlexPIFA | 2 | 2.5, 3 | - | 2.5dBi, 3dBi | - | Cable - 200mm | MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | - |
|
1462200200RF ANT 1.561/1.575GHZ PCB 200MM |
1,091 |
|
Datasheet | 146220 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | PCB Trace | 5 | - | -8dB | 2.1dBi, 2.6dBi, 3dBi, 3.3dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.032" (0.81mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
ANT-2.4-FPC-LH100M4ANT 2.4 FPC 45X7 100 CBL MHF4 |
1,873 |
|
Datasheet | ANT-2.4-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 6.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
1461531300RF ANT 2.4417/5.415GHZ PCB 300MM |
1,882 |
|
Datasheet | 146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 2.4dBi, 3.2dBi | - | Cable - 300mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|

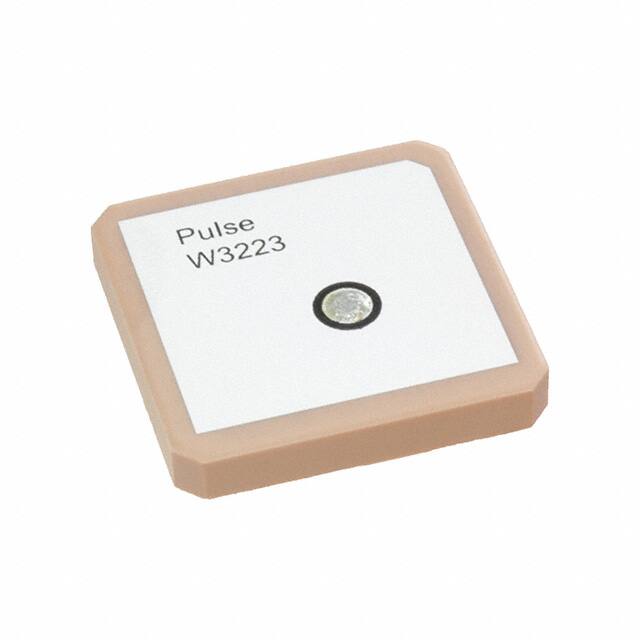

W322325X25X4MM GPS/GLONASSPIN MOUNT |
700 |
|
Datasheet | Ceramic Patch | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
SRFL026-100RF ANT 748MHZ/892MHZ FLAT PATCH |
1,792 |
|
Datasheet | Mitis | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 3.1 | -10dB | 3.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
NN02-220ALL MXTEND MULTIBAND ANTENNA |
32,616 |
|
Datasheet | ALL mXTEND™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 2.69GHz | Chip | 12 | 3 | - | 3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | DCS, GSM, LTE, PCS, UMTS |
|
ANT4005B000RWHEXSRF ANT 829MHZ/2.2GHZ CHIP SLD |
1,800 |
|
Datasheet | 4005 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 3 | - | 3.2dBi, 4dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | General Purpose |
|
|
1005460F0-AA10L02005G/4G WIDE BAND FPC EMBEDDED ANT |
544 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 789MHz, 1.8GHz, 2.5GHz, 3.55GHz, 5.5GHz | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5GHz ~ 6GHz | Flat Patch | 5 | 2, 2.1, 2.4 | - | 3.4dBi, 4dBi, 3dBi, 2.5dBi, 4.2dBi | 2 W | Cable - 200mm | MHF4L, U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | LoRa, LTE, Sigfox |
|
WCP3015W08-U100D3B0AANTENNA ASSY, WIFI STRAIGHT, 100 |
281 |
|
Datasheet | W | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
|
EFF6060A3S-20MHF1REVIE 600 5G CAT M1 NB-IOT ANT |
231 |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
