RF Antennas

Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
SR4G053 RAPTOR GNSS SMD ANTENNA Antenova	4,626	4.48	RFQ	Datasheet	Raptor	Tape & Reel (TR)	Active	Navigation	UHF (1GHz ~ 2GHz)	1.2065GHz, 1.584GHz	1.164GHz ~ 1.249GHz, 1.559GHz ~ 1.609GHz	Chip	2	-	-	-	-	-	Solder	-	-	-	Surface Mount	0.067" (1.70mm)	GNSS
2067600001 RF ANT 829MHZ/2.205GHZ CER PATCH Molex	8,315	3.03	RFQ	Datasheet	206760	Tape & Reel (TR)	Active	-	Wide Band	829MHz, 2.205GHz	698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz	Ceramic Patch	2	-	-5dB	1.3dBi, 4.4dBi	2 W	-	Solder	-	-	-	Surface Mount	0.118" (3.00mm)	General Purpose

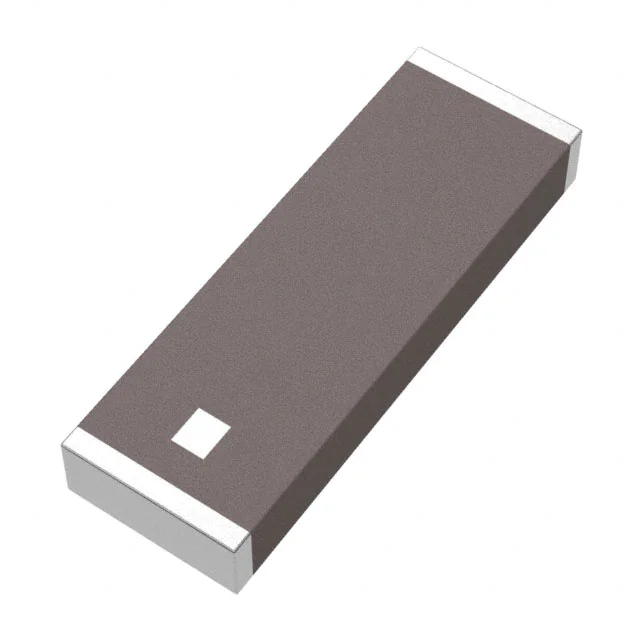

ACAG1204-915-T RF ANT 915MHZ CHIP SOLDER SMD Abracon LLC	33,129	3.09	RFQ	Datasheet	ACAG	Tape & Reel (TR)	Active	General ISM	UHF (300MHz ~ 1GHz)	915MHz	910MHz ~ 925MHz	Chip	1	2	-	3.42dBi	-	-	Solder	-	-	-	Surface Mount	0.063" (1.60mm)	ISM, LoRa, Sigfox
YF0011AA FLEX ANTENNA WIFI DUALB 44MM UFL Quectel	2,673	0.00	RFQ	Datasheet	-	Bag	Not For New Designs	WiFi	Wide Band	2.45GHz, 5.5GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz	Flat Patch	2	2	-	7dBi, 7dBi	-	-	U.FL	-	-	-	Adhesive	0.005" (0.12mm)	Wi-Fi
YGL001AA 5G TERMINAL SMA M HINGE WHITE Quectel	1,247	0.00	RFQ	Datasheet	-	Bag	Active	Cellular	Wide Band	780MHz, 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.15GHz, 4.5GHz, 5.5GHz	600MHz ~ 960MHz, 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz	Whip, Straight	11	5	-	3dBi, 0.63dBi, 1.65dBi, 3dBi, 2.73dBi, 3.08dBi, 3dBi, 3.26dBi	-	-	SMA Male	IP55	-	-	Connector Mount	7.724" (196.20mm)	2G, 3G, 4G, 5G, LPWA
ANT-GHEL2-SMA RF ANT 920MHZ/1.8GHZ WHIP STR RF Solutions	655	3.90	RFQ	Datasheet	-	Bulk	Active	-	UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)	920MHz, 1.8GHz	890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz	Whip, Straight	2	2	-	2dBi	-	-	SMA Male	-	-	-	Connector Mount	2.323" (59.00mm)	General Purpose
YCGO004AA PATCH PASSIVE GNSS L1 10X10 UFL Quectel	472	0.00	RFQ	Datasheet	-	Bag	Active	Navigation	UHF (1GHz ~ 2GHz)	1.582GHz	1.559GHz ~ 1.606GHz	Ceramic Patch	1	-	-	-	-	Cable - 50mm	I-PEX	-	-	-	Adhesive	0.256" (6.50mm)	GNSS, GPS
YCGO006AA GNSS RF ANTENNA Quectel	401	3.16	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.568GHz	1.559GHz ~ 1.577GHz	Ceramic Patch	1	2	-	2dBi	-	Cable - 50mm	I-PEX MHF1	-	-	-	Surface Mount	0.248" (6.30mm)	Beidou, GPS
YCGO007AA GNSS RF ANTENNA Quectel	256	3.16	RFQ	Datasheet	-	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.5805GHz	1.56GHz ~ 1.601GHz	Ceramic Patch	1	3	-	2dBi	-	Cable - 50mm	I-PEX MHF1	-	-	-	Surface Mount	0.248" (6.30mm)	GPS
1461860100 RF ANT 1.561/1.575GHZ FLAT 100MM Molex	7,254	4.12	RFQ	Datasheet	146186	Bulk	Active	Navigation, WiFi	Wide Band	1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz	1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz	Flat Patch	5	-	-10dB	3dBi, 4dBi, 4.7dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	BeiDou, GLONASS, WiMax, WLAN, Wi-Fi
RST-W2-P-110-SMA-H RFANT 2400-2483MHZ 4G SMA RA Raltron Electronics	1,069	3.23	RFQ	Datasheet	RST	Bulk	Active	Cellular	UHF (2GHz ~ 3GHz)	2.4415GHz	2.4GHz ~ 2.483GHz	Whip, Tilt	1	1.5	-	4.15dBi	30 W	-	SMA Male	-	-	-	Connector Mount	4.331" (110.00mm)	4G
2125700200 824~2170MHZ FLEXIBLE ANT SIDE-FE Molex	2,103	3.00	RFQ	Datasheet	212570	Tray	Active	Cellular	UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)	892MHz, 1.94GHz	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	PCB Trace	2	-	-5dB	-0.45dBi, 1.76dBi	-	Cable - 200mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	LTE
EFG2400A3S-10MHF1 ANT 2.4 GHZ,I-FLEXPIFA MHF1 Ezurio	798	0.00	RFQ	Datasheet	i-FlexPIFA™	Bag	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.442GHz	2.4GHz ~ 2.485GHz	Flat Bar	1	-	-	3.4dBi	-	Cable - 100mm	MHF1	-	-	-	Surface Mount	-	Bluetooth, Wi-Fi
1000802 RF ANT 2.4GHZ PCB TRACE CAB ADH KYOCERA AVX	708	2.81	RFQ	Datasheet	Prestta™	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	PCB Trace	1	2.1	-	3.5dBi	-	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.087" (2.20mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
UWC.20 ACCURAUWB UWC.20 3-5GHZ & 6-9GHZ Taoglas Limited	3,175	3.84	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	SHF (f > 4GHz)	4.05GHz, 7.1GHz, 8.5GHz	3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 9GHz	Chip	3	2, 3	-6dB, -10dB	6dBi, 3.5dBi, 2.5dBi	10 W	-	Solder	-	-	-	Surface Mount	0.118" (3.00mm)	UWB
ANT-5GW-FPC-V100UF ANT 5G FPC 120X20 100MM UFL TE Connectivity Linx	1,063	0.00	RFQ	Datasheet	ANT-5GW-FPC-V	Bag	Active	Cellular	Wide Band	657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz	617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz	Flat Patch	9	1.6, 1.8, 2.4, 2.6	-	4.6dBi, 6.6dBi, 7.9dBi, 7.9dBi, 6.2dBi, 4.9dBi, 4.1dBi, 6.3dBi, 7.9dBi	2 W	Cable - 100mm	MHF1, U.FL	-	-	-	Adhesive	0.004" (0.10mm)	2G, 3G, 4G, 5G, LTE
EFH8631A3S-10MH4L ANT, FLEXDIPOLE, 868MHZ-928MHZ, Ezurio	290	0.00	RFQ	Datasheet	-	Bulk	Active	General ISM	UHF (300MHz ~ 1GHz)	866.5MHz, 915MHz	863MHz ~ 870MHz, 902MHz ~ 928MHz	Flat Patch	2	3	-	1.9dBi, 2.4dBi	-	Cable - 100mm	MHF4L	-	-	-	Adhesive	0.004" (0.10mm)	ISM, LoRaWAN
ACAG1204-433-T RF ANT 433MHZ CHIP SOLDER SMD Abracon LLC	11,564	3.09	RFQ	Datasheet	ACAG	Tape & Reel (TR)	Active	General ISM, WiFi	UHF (300MHz ~ 1GHz)	433MHz	428MHz ~ 438MHz	Chip	1	2	-6.5dB	-1.72dBi	-	-	Solder	-	-	-	Surface Mount	0.063" (1.60mm)	ISM, LoRa, Sigfox, Wi-Fi
AFAG2220-SW2 RF ANT DUAL BAND WIFI FPC W/IPEX Abracon LLC	1,678	3.65	RFQ	Datasheet	AFAG	Bulk	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5GHz	2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz	PCB Trace	2	2, 2.5	-	2dBi	3 W	Cable - 220mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	-	Bluetooth, Wi-Fi
2118909-6 WLAN TRIPLE BAND ANT MHF4 CABLE TE Connectivity AMP Connectors	5,502	3.10	RFQ	Datasheet	-	Bag	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5125GHz, 6.525GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	PCB Trace	3	2, 2.5	-	3.3dBi, 3.3dBi, 3.3dBi	-	Cable - 370mm	MHF	-	-	-	Adhesive	0.039" (1.00mm)	802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™

FAQ

Frequently Asked Questions

What are RF Antennas components used for?

RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right RF Antennas part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
