RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-2.4-FPC-SF100UFANT 2.4 FPC 25X20 100 CBL UFL |
1,460 |
|
Datasheet | ANT-2.4-FPC-SF | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | - | 3.9dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
2042811300RF ANT 2.4417/5.415GHZ PCB 300MM |
5,856 |
|
Datasheet | 204281 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 1.2dBi, 2.3dBi | - | Cable - 300mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|
2344656-8WLAN DUAL BAND ANTENNA FPC V 200 |
840 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
SRFG017-100RF ANT 1.561/1.575GHZ FLAT 100MM |
760 |
|
Datasheet | Bentoni | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | 1.45 | -14dB | 4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Beidou, Galileo, GLONASS, GPS |
-.JPG "ANT-DK-WF1DI-2AB(C)-")
|
ANT-DK-WF1DI-2AB(C)-RF ANT 2.45GHZ WHIP/TILT CONN |
495 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.92 | -10dB | 2dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 4.252" (108.00mm) | Wi-Fi |
|
1461530250RF ANT 2.4/5GHZ FLAT PATCH 250MM |
1,711 |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.4dBi, 3.7dBi | 2 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2195846-1FPC ANT, MHF, 50MM, 698-7125 MHZ |
626 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
ANT-W63-FPC-LV100M4ANT WIFI6 FPC 45X7 100MM MHF4 |
1,793 |
|
Datasheet | ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-W63-FPC-LH100M4ANT WIFI6 FPC 45X7 100MM MHF4 |
279 |
|
Datasheet | ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|
2125700150824~2170MHZ FLEXIBLE ANT SIDE-FE |
2,460 |
|
Datasheet | 212570 | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -5dB | -0.45dBi, 1.76dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
AFG4507W2S-0200S2.4/5GHZ WIFI FLEXIBLE ANT |
214 |
|
Datasheet | AFG | Bulk | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | 3 | - | 8.12dBi | - | Cable - 200mm | I-PEX-1(F) | - | - | - | Adhesive | 0.008" (0.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
-.jpg "ANT-DK-DB1DI-2AB(C)-")
|
ANT-DK-DB1DI-2AB(C)-RF ANT 2.45/5.35GHZ WHIP CONN MT |
390 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.35GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 1.92 | -10dB | 2dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 4.252" (108.00mm) | WLAN |
|

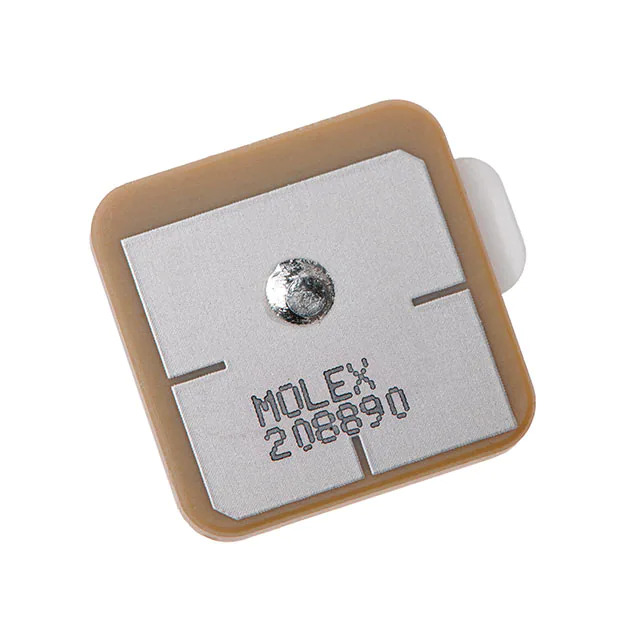

2088900001CERAMIC GPS PATCH ANTENNA |
1,610 |
|
Datasheet | 208890 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -15dB | 2.6dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | GNSS, GPS |
|
W3544BRF ANT 850MHZ/900MHZ CHIP SLD |
4,767 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -6.5dB, -5.7dB, -18.5dB, -13dB | -1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|
001-0034ANT MFLEXPIFA DUAL 2.4/5GHZ MHF1 |
5,011 |
|
Datasheet | mFlexPIFA™ | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | FlexPIFA | 2 | 2.5, 3 | - | 1.9dBi, 5.8dBi | 10 W | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.102" (2.60mm) | General Purpose |
|
2361492-2PCB ANTENNA,CABLE,MHF,698-2700MH |
3,766 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 4 | - | 4dBi, 4dBi, 4dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | LTE, UMTS, WCDMA |
|
|
PCS.55.AWIDEBAND 5G PCB SMD ANTENNA |
9,256 |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 657.5MHz, 722MHz, 773MHz, 840MHz, 920MHz, 1.472GHz, 1.581GHz, 1.932GHz, 2.595GHz | 617MHz ~ 698MHz, 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.56GHz ~ 1.602GHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | Chip | 9 | - | - | -3.3dBi, 0.2dBi, -0.3dBi, -1dBi, -1.8dBi, 0.4dBi, 1.6dBi, 3.7dBi, 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 4G, 5G, BeiDou, Cat-M, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, NB-IoT, NR, WCDMA |
|
2108824-1CHIP ANT., SMD, L1+G1 |
6,910 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Chip | 1 | 1.7 | - | 2.9dBi | - | - | - | - | - | - | Surface Mount | 0.059" (1.50mm) | GNSS |
|
W3918B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
691 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
GW.40.21532DBI 2.4/5.0~5.8GHZ DIPOLE ANT |
123 |
|
Datasheet | - | Bag | Active | Bluetooth | Wide Band | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Whip, Right Angle | 2 | - | - | 3.15dBi, 4.39dBi | 2 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 4.287" (108.90mm) | Bluetooth, WLAN |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
