RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRFI068H-100FERA HORIZONTAL ISM ANTENNA+100M |
531 |
|
Datasheet | FlexiiANT® | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 1.4 | -15dB | 0.7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | ISM, LoRa, Sigfox |
|
2308RF ANT 2.4/5.4GHZ PCB TRACE CAB |
253 |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | - | - | Wi-Fi |
|
W3010RF ANT 1.575GHZ CHIP SOLDER SMD |
42,461 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -18dB | 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|
2108857-4PCB ANT, MHF, 200MM, WI-FI 6E TR |
4,697 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
2081420001868/915MHZ CERAMIC ANTENNA |
11,920 |
|
Datasheet | 208142 | Tape & Reel (TR) | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 869MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | Ceramic Patch | 2 | - | -5dB, -10dB | 1.5dBi, 1.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.025" (0.63mm) | ISM, LoRa, LPWAN, Sigfox, Zigbee™ |
|
1462160001RF ANT 1.575GHZ MOLDED SLDR SMD |
9,312 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Molded | 1 | - | -10dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.234" (5.95mm) | GPS |
|
SR42I010-RANTENNAS 863-870 & 902-928MHZ RI |
1,279 |
|
Datasheet | lamiiANT® | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 2 | 1.2, 1.8, 3.1 | -6dB, -10dB, -18dB | 0.2dBi, 0.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sigfox |
|
W3011ARF ANT 1.575GHZ CHIP SOLDER SMD |
27,509 |
|
Datasheet | Ceramic Chip Antenna | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.5755GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Chip | 3 | - | -7dB, -10dB, -10dB | 1.3dBi, 2dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
W3011RF ANT 1.575GHZ CHIP SOLDER SMD |
8,594 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -12dB | 3.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | GPS |
|
ANT-418-PW-LPRF ANT 418MHZ WHIP STR SCREW-MNT |
742 |
|
Datasheet | LP | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 411MHz ~ 425MHz | Whip, Straight | 1 | 1.9 | - | -1dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 1.988" (50.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
2344656-4WLAN DUAL BAND ANTENNA FPC V 200 |
1,092 |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
ANTX100P111B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
2,060 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 3.3dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
1461531200RF ANT 2.4/5GHZ FLAT PATCH 200MM |
6,495 |
|
Datasheet | 146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Flat Patch | 2 | - | -10dB | 3dBi, 4.5dBi | 2 W | Cable - 200mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
|
ANT000EXTERNAL ANTENNA WITH PANEL MOUN |
181 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Panel Mount | - | - |
|
1461870100RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
4,076 |
|
Datasheet | 146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 4.5dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|

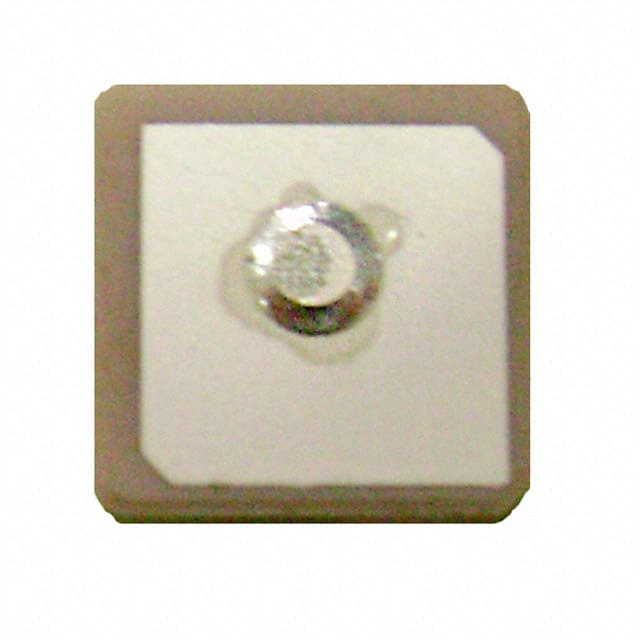

APAE1575R1240ABDD1-TRF ANT 1.575GHZ CER PATCH PIN |
525 |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.591GHz ~ 1.595GHz | Ceramic Patch | 1 | 1.5 | - | 0.6dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|

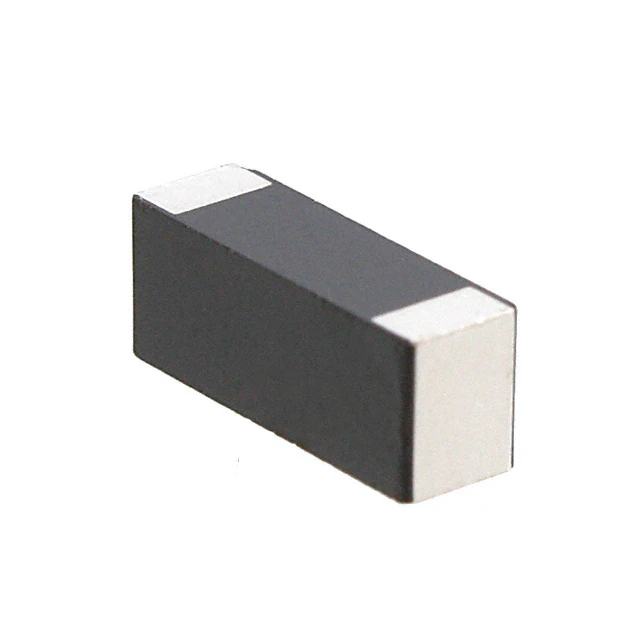

W3013RF ANT 868MHZ CHIP SOLDER SMD |
6,619 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | Chip | 1 | - | -10dB | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
|
2108784-1PCB ANTENNA, SMD, 698-6000MHZ |
4,998 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 839MHz, 1.5945GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.614GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | 3 | - | 4dBi, 0.98dBi, 1.93dBi, 2.3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|
ANTX100P113B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
2,866 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 2.8dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
YEGT001AAGNSS L1 TERMINAL ANT SMA M RA |
1,642 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.555GHz ~ 1.605GHz | Whip, Right Angle | 1 | 2 | - | 3.16dBi | - | - | SMA Male | IP64 | - | - | Connector Mount | 1.969" (50.00mm) | GNSS |
