RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT1204F007R0870ARF ANT 870MHZ CHIP SOLDER SMD |
3,000 |
|
Datasheet | 1204 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 870MHz | - | Chip | 1 | - | 10dB | 1.67dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | General Purpose |
|
2195835-2ISM 868 / 915 MHZ ANTENNA |
1,020 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
ENB2449A1-20UFLEMBED,NBLADE,200L,UFL |
398 |
|
Datasheet | * | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.45GHz, 5.25GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz, 5.6GHz ~ 6GHz | - | 3 | 2 | - | 3.19dBi, 4.1dBi, 4.35dBi | - | Cable - 200mm | I-PEX MHF | - | - | - | - | 0.650" (16.50mm) | Bluetooth, WLAN |
|
7488930245RF ANT 2.4GHZ CHIP SOLDER SMD |
5,992 |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, GSM, WLAN |
|
ANT-915-VHETHRF ANT 915MHZ MON HELICAL SLD TH |
708 |
|
Datasheet | VHETH | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Helical | 1 | 2.3 | -8.1dB | 0.9dBi | 15 W | - | Solder | - | - | - | Through Hole | 0.280" (7.00mm) | ISM, LoRaWAN |
|
1002427RF ANT 868MHZ/915MHZ STAMPED MET |
4,792 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 1.575GHz | 868MHz, 915MHz, 1.561GHz ~ 1.602GHz | Stamped Metal | 5 | 2 | - | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.071" (1.80mm) | Beidou, GLONASS, GPS, ISM, LoRa, LPWAN, Sigfox |
|
2195835-5ISM 868 / 915 MHZ ANTENNA |
2,203 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
WRL-17841WIDE BAND 4G LTE INTERNAL FPC AN |
642 |
|
Datasheet | - | Bulk | Active | Bluetooth, Cellular | UHF (1GHz ~ 2GHz) | 1.7GHz | 700MHz ~ 2.7GHz | Flat Patch | 1 | 1.8 | - | 8dBi | 30 W | Cable - 100mm | I-PEX | - | - | - | Surface Mount | - | 4G, Bluetooth, LTE, LoRa |
|
1461539050WIFI 6E AUTOMOTIVE FLEXIBLE ANTE |
9,706 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 3.2dBi, 4.2dBi | - | Cable - 50mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3139ANTENNA HELIX SMT ISM868/915 |
3,229 |
|
Datasheet | SMD Helical Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | Helical | 2 | - | -8dB, -10dB | -0.5dBi, -1dBi, -2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM |
|
2195835-6ISM 868 / 915 MHZ ANTENNA |
2,662 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | 1.4dBi | 10 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|
2195835-4ISM 868 / 915 MHZ ANTENNA |
215 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 928MHz | PCB Trace | 2 | 2.3 | - | -0.9dBi | 10 W | Cable - 200mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | ISM |
|

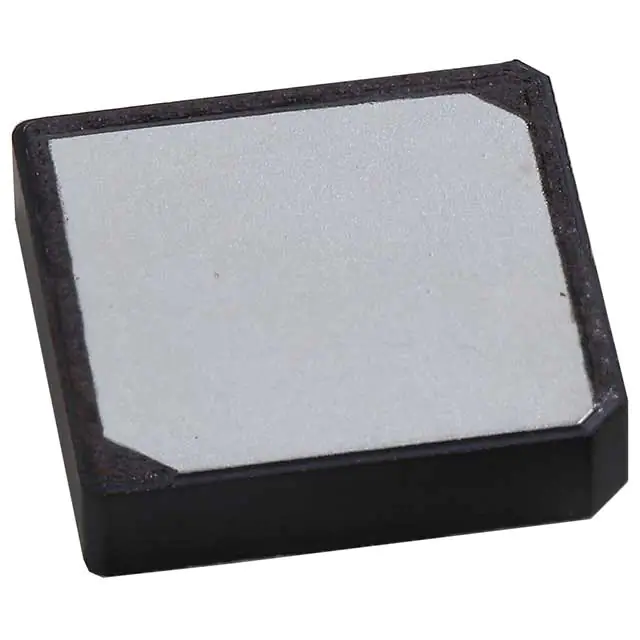

ANT1818B00BT1516SRF ANT 1.575/1.602GHZ CER PATCH |
2,524 |
|
Datasheet | 1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -17.801dB, -17.008dB | 1.89dBi, 2.59dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
H2B1BC4A1B015LUNICTRON WW20D1 - WIFI, 2400~250 |
2,352 |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | PCB Trace | 1 | 2 | - | 4dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Adhesive | 0.020" (0.50mm) | 802.11b/g/n |
|
|
BTPA0061204G0C4A04ANTENNA FPC 698-2700MHZ |
370 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | - | -10dB, -5dB | 4.5dBi, 4.5dBi, 4.5dBi | 1 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | 4G, LTE |
|
|
1461539150WIFI 6E AUTOMOTIVE FLEXIBLE ANT |
9,047 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.4dBi | - | Cable - 150mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
2108792-3FPC ANT, MHF, 100MM, WI-FI 6E TR |
11,758 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SR4I052VELOX ISM 868/915MHZ SMD ANTENNA |
8,147 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 896MHz | 863MHz ~ 928MHz | PCB Trace | 1 | 2.4 | -7.5dB | 1.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | ISM |
|
|
YC0013AAGNSS RF ANTENNA |
6,612 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Chip | 1 | - | -10.2dB | 1.19dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | GNSS |
|
|
YF0022DAEMBEDDED, 700~2690, LTE (4G), PC |
2,117 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.49GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Flat Patch | 3 | - | - | - | - | Cable - 75mm | I-PEX-1 | - | - | - | Adhesive | 0.079" (2.00mm) | 2G, 3G, 4G, LTE |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
