RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-3972-01-10ANTENNA TW3972 SERIES |
1,118 |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | -1.5dBic, 2.5dBic, 4dBic | - | LNA, Filter | TNC Female | IP67 | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
MA1508.AK.001SYNERGY 8-IN-1 GNSS SMA(M):4*5G/ |
161 |
|
Datasheet | Synergy | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 2.45GHz, 3.55GHz, 5.5GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.88GHz, 1.92GHz ~ 1.99GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, | Dome | 15 | 2, 2.5 | - | 0.25dBi, 1.44dBi, 2.93dBi, 3.76dBi, 3.75dBic, 4.44dBic, 4.54dBic, 4.55dBi, 2.93dBi, 3.97dBi, 5.06dBi, 3.12dBi, 5.99dBi, 7.03dBi, 6.28dBi | 2 W | Cable - 300mm, LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.263" (57.47mm) | 4G/5G, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi |
|
2108964-1STAMPING ELEMENT FOR BT WIFI ANT |
4,157 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Stamped Metal | 2 | 2 | - | 2.4dBi, 2.7dBi, 4.3dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.098" (2.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
RFECA3216060A1TRF ANT 2.4GHZ CHIP SOLDER SMD |
12,650 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2.1 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | - |
|

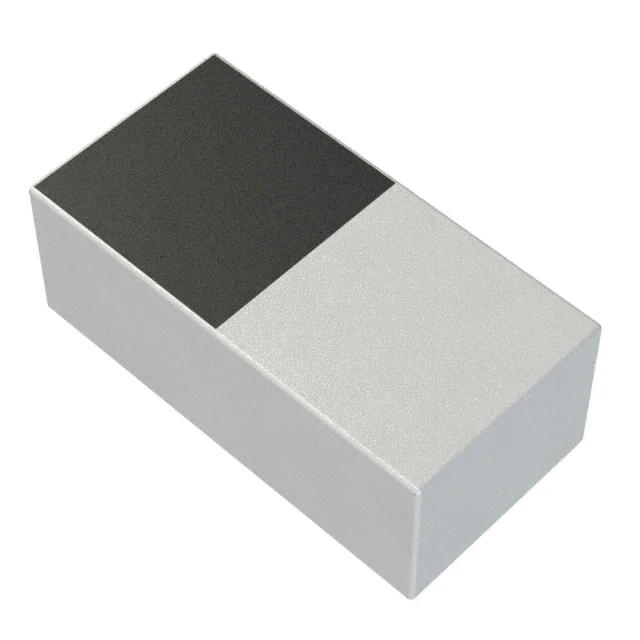

ANT1005LL14R2400ARF ANT 2.442GHZ CHIP SOLDER SMD |
40,360 |
|
Datasheet | 1005 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | 2.21dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
WLA.042.4~2.5GHZ CERAMIC SUBSTRATE LOO |
5,337 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.7dBi | - | - | - | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT2012LL13R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
17,098 |
|
Datasheet | 2012 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.408GHz ~ 2.492GHz | Chip | 1 | - | -22dB | 2.72dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT3216A063R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
11,408 |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.335GHz ~ 2.565GHz | Chip | 1 | - | -10dB | 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, WLAN, Zigbee™ |
|
RFANT5220110A2TRF ANT 2.4GHZ CHIP SOLDER SMD |
4,125 |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | Bluetooth, WLAN |
|
SRCW004RF ANT 2.4GHZ CHIP SOLDER SMD |
70,258 |
|
Datasheet | ceriiANT®, Weii | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.6 | -10dB | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-2.4-MSA-TH1ANTENNA 2.4GHZ STAMPED TH |
1,521 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 1.3 | - | 3.7dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.213" (5.40mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|

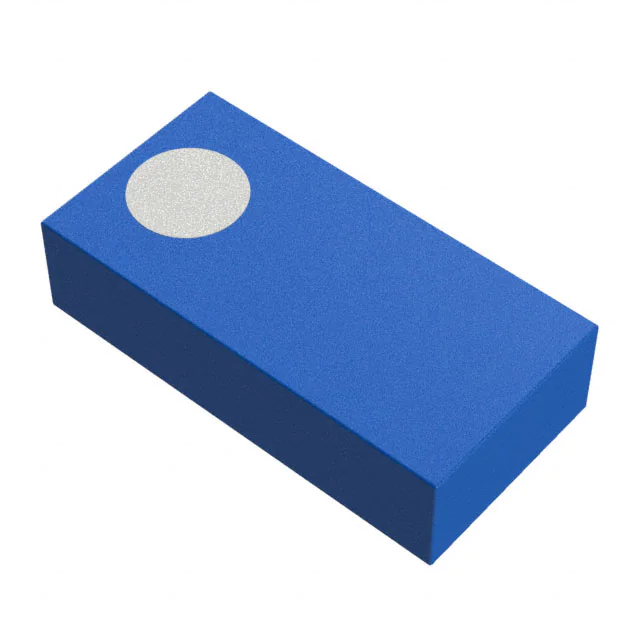

ANT1608LL14R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
22,206 |
|
Datasheet | 1608 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 6 | - | 2dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
2450AD14A5500001TRF ANT 2.4GHZ/5.5GHZ CHIP SLD |
6,886 |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -6dB | 4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | WLAN |
|
ANT8010LL05R1516ARF ANT 1.575GHZ/1.602GHZ CHIP |
8,768 |
|
Datasheet | 8010 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 2 | - | 10dB | 1.53dBi, 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Galileo, GLONASS, GPS |
|
ANT8010LL04R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
16,465 |
|
Datasheet | 8010 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -24.9dB | 5.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
74889302450WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,939 |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
ANT5320LL45R2400AANTENNA CHIP 2.4G HELIX |
14,149 |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 5.22dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT-868-HESM868MHZ HELICAL ANT SURFACE MNT |
3,989 |
|
Datasheet | HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 2.2 | -8.5dB | 5.6dBi | 15 W | - | Solder | - | - | - | Surface Mount | 0.350" (8.90mm) | ISM, LPWA |
|
|
2450AT18D0100002ERF ANT 2.4GHZ CHIP SOLDER SMD |
10,294 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
2450AT14A0100001TRF ANT 2.4GHZ CHIP SOLDER SMD |
24,601 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Chip | 1 | - | 9dB | 0.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
