RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA203W.AB.002RF ANT 850MHZ/900MHZ MOD SMA ADH |
4,709 |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Module | 5 | 1.92 | -10dB | -3dB | - | Cable - 3m, LNA | SMA Male (2) | IP67 | - | - | Adhesive | 0.465" (11.80mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS |
|
PCSD.06.APCS.06.A ON EVALUATION BOARD |
4,757 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 7 | - | - | -0.21dBi, 0.61dBi, 0.77dBi, 2.92dBi, 3.05dBi, 3.17dBi, 3.72dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|

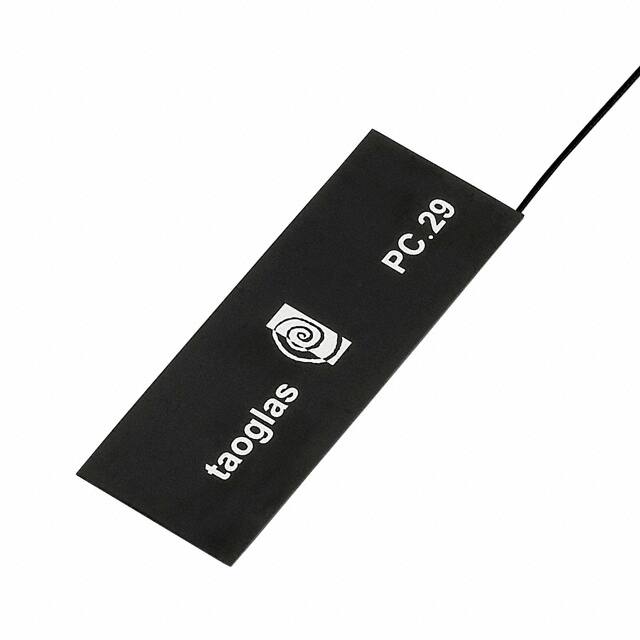

PC29.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
2,598 |
|
Datasheet | TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 1.58, 1.78, 1.51, 1.38, 1.37 | -13dB, -11dB, -14dB, -16dB, -16dB | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | CDMA, GSM, UMTS |
|
FXP523.A.07.A.001RF ANT 2.4GHZ/5.5GHZ FLAT 120MM |
4,414 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | - | 6.69dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
|
FXP543.A.07.A.001RF ANT 2.4GHZ/5.8GHZ FLAT PATCH |
4,743 |
|
Datasheet | Venti | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB, -9dB | 2.96dBi, 5.16dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 (3) | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|

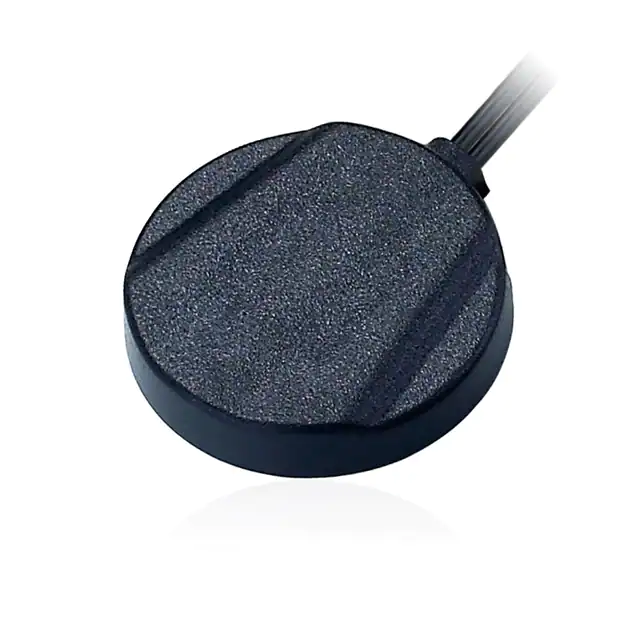

MA206.A.AB.004RF ANT 1.575GHZ/2.4GHZ MOD ADH |
3,806 |
|
Datasheet | Stingray | Bag | Active | Navigation | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.573GHz ~ 1.577GHz, 2.4GHz ~ 2.5GHz | Module | 2 | 1.92 | -26dB | 28dB | - | Cable - 3m, LNA | SMA Male (1), RP-SMA Male (2) | IP65 | - | - | Adhesive | 0.425" (10.80mm) | GPS |
|
MAT.03AMAT.03 MULTI-ANTENNA EVALUATION |
4,005 |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 892MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 960GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Ceramic Patch | 4 | 2 | -5dB | 0.48dBi, 2.13dBi, 2.54dBi, 2.25dBi | - | LNA, Filter | SMA Female | - | - | - | Adhesive | 0.236" (6.00mm) | CDMA, GPRS, GPS, GSM, HSPA |
|
MA412.A.BI.001RF ANT 829MHZ/1.9GHZ DOME FAKRA |
4,782 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 3 | 3.5 | - | 8.1dBi | - | - | SMB, Fakra | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | LTE |
|
|
MA353.A.LBC.0013IN1 MAGNET MNT ANT 3M SMA(M) |
3,481 |
|
Datasheet | Steedan | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 14 | - | -10dB | 1.3dBi, 2.8dBi, 5dBi, 3.4dBi, 1dBi, 1dBi, 1dBi, 6.6dBi, 4.1dBi, 5.9dBi, 5.4dBi, 7.7dBi, 3dBi, 3.5dBi | 10 W | Cable - 3m, LNA, Filter | RP-SMA Male, SMA Male (2) | IP65 | - | - | Magnetic | 2.079" (52.80mm) | 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
|
MPA.257.AWI-FI TRI-BAND 2.4/5.8/7.125GHZ |
4,741 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 3 | - | - | 1.5dBi, 3.78dBi, 4.41dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.193" (4.90mm) | Wi-Fi |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
