RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SXP.22.4.A.021100 1000 1360MM+L3:W3 |
2,301 |
|
Datasheet | - | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.32625GHz, 2.3325GHz, 2.33875GHz | 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz | Ceramic Patch | 3 | - | -10dB | 9dBic, 9.6dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|

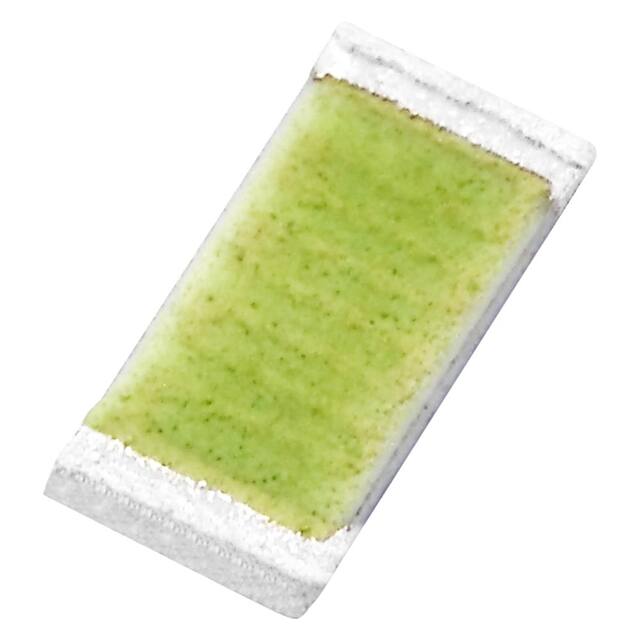

CA.50RF ANT 5.5GHZ CHIP SOLDER SMD |
3,179 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 2 | -17dB | 3.4dBi | 50 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | WLAN |
|

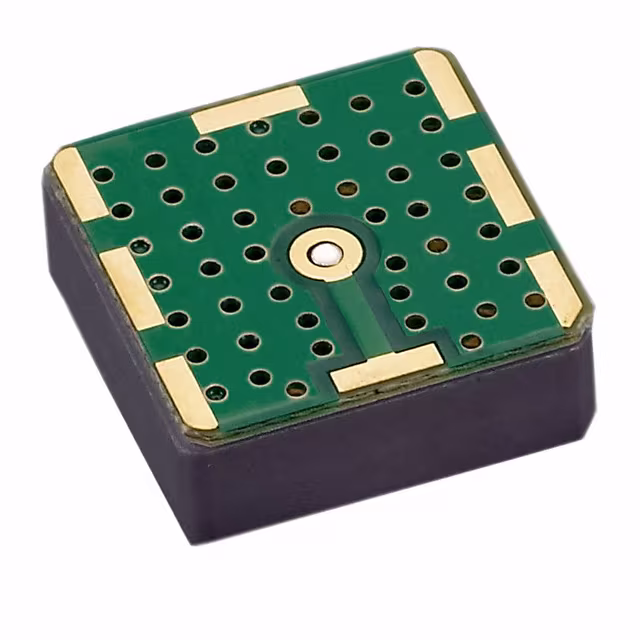

SGP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH SLD |
3,577 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | -1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
PC11.09.0100ARF ANT 2.4GHZ/5.2GHZ FLAT PATCH |
3,351 |
|
Datasheet | TheStripe™ | Bag | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | - | - | 3dBi, 4.5dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
SGGP.18.4.A.02RF ANT 1.6GHZ CER PATCH SLDR SMD |
4,986 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 2 | - | 0.26dBic, 1.25dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
TG.22.0152TG.22 3G/2G CELLULAR CONNECTOR M |
4,918 |
|
Datasheet | - | Bag | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 1 | 2.3 | - | 0dBi | 20 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMA, DCS, EDGE, GPRS, HSPA, PCS, UMTS |
|
GLA.02RF ANT 1.575GHZ CHIP SOLDER SMD |
3,628 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | 2 | -31dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.154" (3.90mm) | GPS |
|
CA.51DSRC 5900MHZ CERAMIC SUBSTRATE C |
2,403 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 5.888GHz | 5.85GHz ~ 5.925GHz | Chip | 1 | 2 | - | 2.87dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.012" (0.30mm) | DSRC, V2V |
|
|
GW.82.5153RF ANT 5.5GHZ WHIP TILT RP-SMA |
2,019 |
|
Datasheet | - | Bag | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | - | - | 5.64dBi, 6.53dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | Wi-Fi |
|
CGGP.35.2.A.08RF ANT 1.575/1.602GHZ CER PATCH |
1,751 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | Ceramic Patch | 2 | - | -10dB | 4.27dBi, 4.63dBi | - | - | Pin | - | - | - | Through Hole | 0.079" (2.00mm) | Galileo, GLONASS, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
