Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
189NQ135DIODE SCHOTTKY 135V 180A D-67 |
8,757 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 135 V | 180A | 1.07 V @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 135 V | 4500pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
181NQ035DIODE SCHOTTKY 35V 180A D-67 |
8,883 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 35 V | 180A | 660 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 35 V | 7800pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

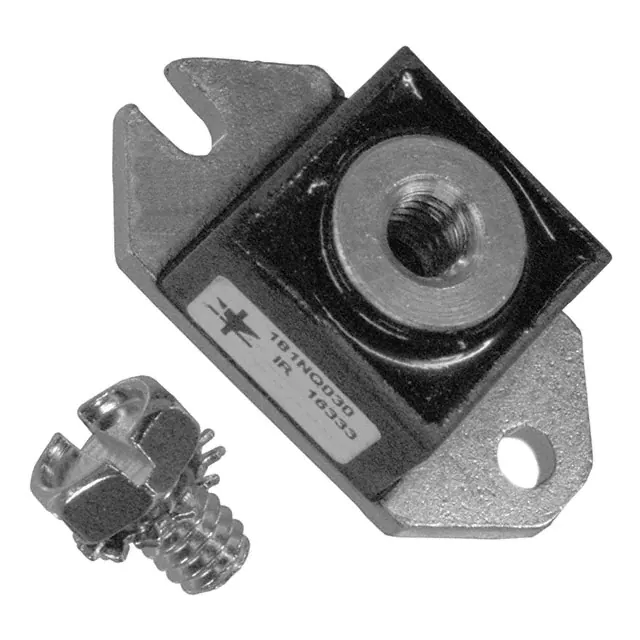

181NQ040DIODE SCHOTTKY 40V 180A D-67 |
7,325 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 40 V | 180A | 660 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 40 V | 7800pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
181NQ045RDIODE SCHOTTKY 45V 180A D-67 |
7,975 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 45 V | 180A | 660 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 45 V | 7800pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

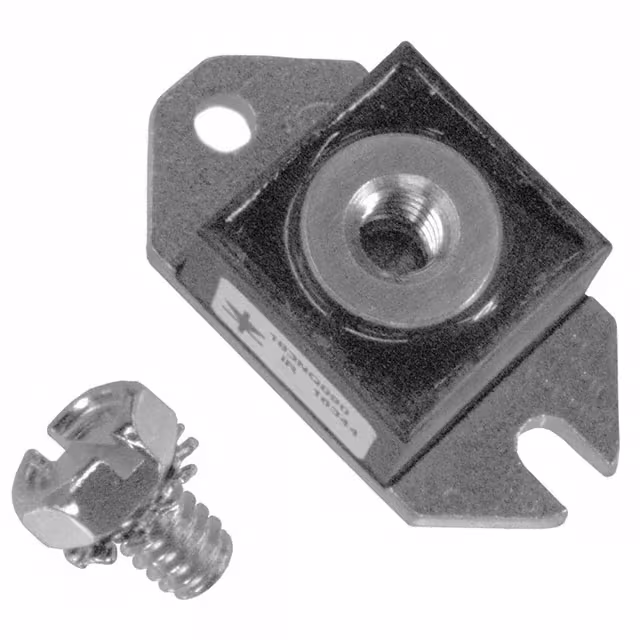

183NQ080DIODE SCHOTTKY 80V 180A D-67 |
7,899 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 80 V | 180A | 950 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 80 V | 4150pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
1N4048RDIODE GEN PURP 250V 275A DO205AB |
5,574 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Obsolete | Standard | 250 V | 275A | 1.35 V @ 275 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 250 V | - | - | - | Stud Mount | DO-205AB (DO-9) | -65°C ~ 190°C |
|
|
IRKE91/04ADIODE GP 400V 100A ADD-A-PAK |
2,170 |
|
Datasheet | - | ADD-A-PAK (2) | Bulk | Obsolete | Standard | 400 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | - | - | - | Chassis Mount | ADD-A-PAK® | - |
|
|
IRKE91/08ADIODE GP 800V 100A ADD-A-PAK |
8,131 |
|
Datasheet | - | ADD-A-PAK (2) | Bulk | Obsolete | Standard | 800 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | - | - | - | Chassis Mount | ADD-A-PAK® | - |
|
|
IRKE91/12ADIODE GP 1.2KV 100A ADD-A-PAK |
8,143 |
|
Datasheet | - | ADD-A-PAK (2) | Bulk | Obsolete | Standard | 1200 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | - | - | - | Chassis Mount | ADD-A-PAK® | - |
|
1N2059DIODE GEN PURP 300V 250A DO205AB |
5,190 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Obsolete | Standard | 300 V | 250A | 1.25 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 300 V | - | - | - | Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
