Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
243NQ080DIODE SCHOTTKY 80V 240A D-67 |
5,888 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 80 V | 240A | 860 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 80 V | 5500pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
VS-T85HF10DIODE GEN PURP 100V 85A D-55 |
6,264 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 100 V | 85A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 100 V | - | - | - | Chassis Mount | D-55 | - |
|
|
VS-T85HF20DIODE GEN PURP 200V 85A D-55 |
6,759 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 200 V | 85A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 200 V | - | - | - | Chassis Mount | D-55 | - |
|
|
VS-T85HF40DIODE GEN PURP 400V 85A D-55 |
8,598 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 400 V | 85A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | - | - | - | Chassis Mount | D-55 | - |
|
|
VS-T85HF60DIODE GEN PURP 600V 85A D-55 |
4,915 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 600 V | 85A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 600 V | - | - | - | Chassis Mount | D-55 | - |
|

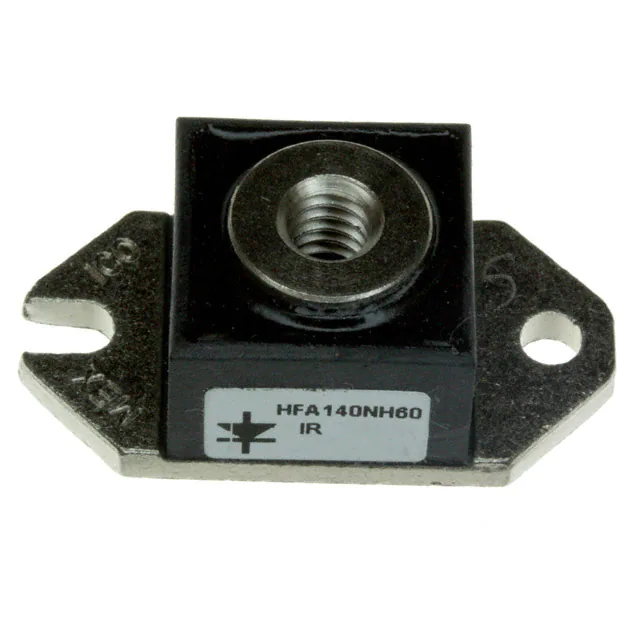

HFA140NH60DIODE GEN PURP 600V 140A D-67 |
2,226 |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 600 V | 140A | 1.6 V @ 140 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 40 µA @ 600 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
HFA140NH60RDIODE GEN PURP 600V 140A D-67 |
2,546 |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 600 V | 140A | 1.6 V @ 140 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 40 µA @ 600 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
VS-T110HF10DIODE GEN PURP 100V 110A D-55 |
4,052 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 100 V | 110A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 100 V | - | - | - | Chassis Mount | D-55 | - |
|
|
VS-T20HF220DIODE GEN PURP 2.2KV 20A D-55 |
2,624 |
|
Datasheet | - | D-55 T-Module | Bulk | Obsolete | Standard | 2200 V | 20A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 18 mA @ 2200 V | - | - | - | Chassis Mount | D-55 | -40°C ~ 150°C |
|
|
VS-T85HF80DIODE GEN PURP 800V 85A D-55 |
6,966 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 800 V | 85A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | - | - | - | Chassis Mount | D-55 | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
