Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
121NQ045RDIODE SCHOTTKY 45V 120A D-67 |
6,170 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 45 V | 120A | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | 5200pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
121NQ035DIODE SCHOTTKY 35V 120A D-67 |
9,230 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 35 V | 120A | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | 5200pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
HFA90NH40DIODE GEN PURP 400V 90A D-67 |
2,514 |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 400 V | 90A | 1.3 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 6 µA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

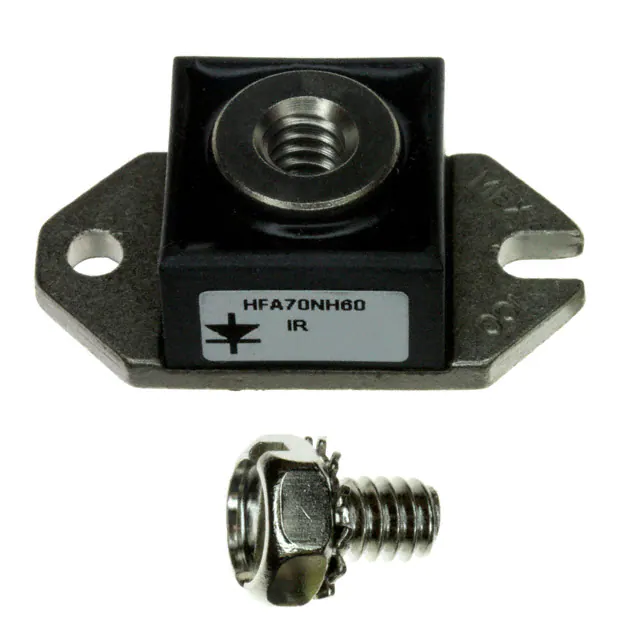

HFA70NH60DIODE GEN PURP 600V 70A D-67 |
3,123 |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 600 V | 70A | 1.5 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 20 µA @ 600 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
VS-40HFL100S05MDIODE GEN PURP 1KV 40A DO203AB |
4,055 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 40A | 1.95 V @ 125.6 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-40HFL80S05MDIODE GEN PURP 800V 40A DO203AB |
6,690 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HFLR100S05MDIODE GP REV 1KV 40A DO203AB |
3,288 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HFLR80S05MDIODE GP REV 800V 40A DO203AB |
2,369 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-70HFL100S05MDIODE GEN PURP 1KV 70A DO203AB |
7,983 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 70A | 1.85 V @ 219.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-70HFLR40S05MDIODE GP REV 400V 70A DO203AB |
6,809 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 70A | 1.85 V @ 219.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
