Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRD3901DIODE GEN PURP 200V 20A DO203AB |
5,196 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 200 V | 20A | 1.65 V @ 62.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 350 ns | 50 µA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
IRD3901RDIODE GEN PURP 200V 20A DO203AB |
9,317 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 200 V | 20A | 1.65 V @ 62.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 350 ns | 50 µA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
V15P22HM3/HDIODE SCHOTTKY 200V 3.3A TO277A |
6,219 |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Discontinued at Digi-Key | Schottky | 200 V | 3.3A | 910 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 200 V | 835pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) | -40°C ~ 175°C |
|
20ETF12SDIODE GEN PURP 1.2KV 20A TO263AB |
3,966 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Standard | 1200 V | 20A | 1.31 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 100 µA @ 1200 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -40°C ~ 150°C |
|

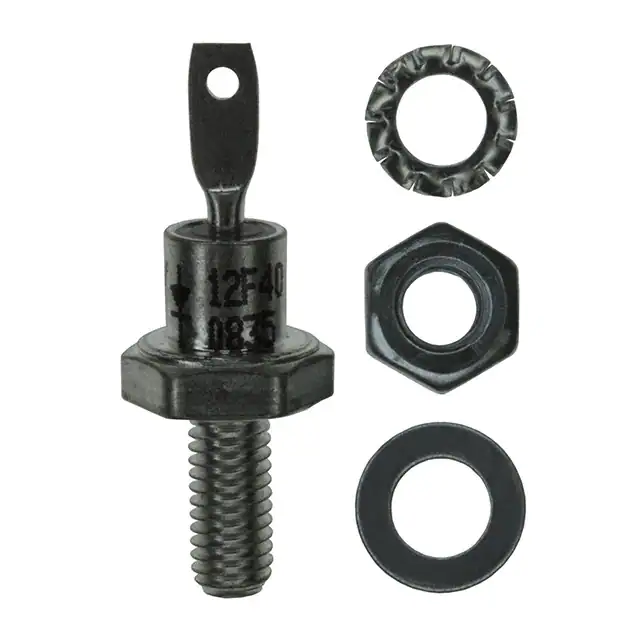

VS-12F40DIODE GEN PURP 400V 12A DO203AA |
5,973 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

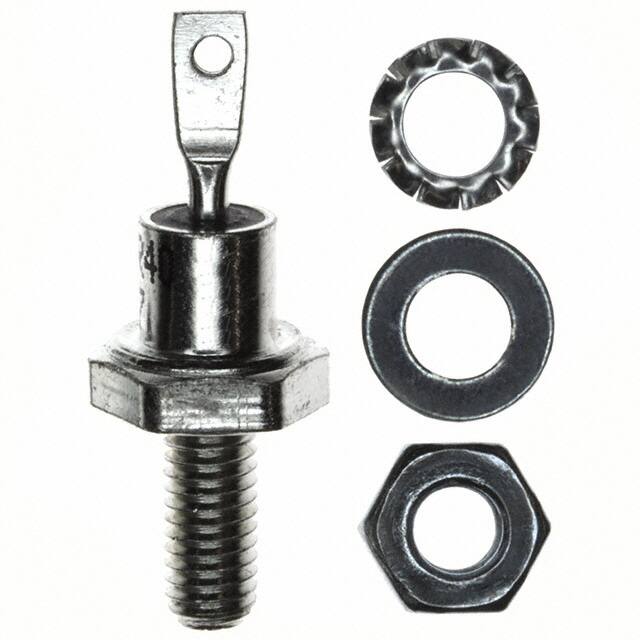

VS-12FR40DIODE GEN PURP 400V 12A DO203AA |
6,341 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
IRD3911DIODE GEN PURP 200V 30A DO203AB |
4,795 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 200 V | 30A | 1.8 V @ 62.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 350 ns | 80 µA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
VS-EPU3006-N3DIODE GP 600V 30A TO247AC |
8,750 |
|
Datasheet | FRED Pt® | TO-247-2 | Bulk | Active | Standard | 600 V | 30A | 2 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-247AC Modified | -65°C ~ 175°C |
|
VS-100BGQ100DIODE SCHOTT 100V 100A POWIRTAB |
6,376 |
|
Datasheet | - | PowerTab™, PowIRtab™ | Bulk | Obsolete | Schottky | 100 V | 100A | 1.04 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | - | - | - | Chassis Mount | PowIRtab™ | -55°C ~ 175°C |
|
|
40EPF04DIODE GP 400V 40A TO247AC |
9,053 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Standard | 400 V | 40A | 1.25 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | 180 ns | 100 µA @ 400 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
