Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60EPS08DIODE GP 800V 60A TO247AC |
8,198 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Standard | 800 V | 60A | 1.1 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 800 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
|
30CPF12DIODE GEN PURP 1.2KV 30A TO247AC |
2,330 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | Standard | 1200 V | 30A | 1.41 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 450 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AC | -40°C ~ 150°C |
|
30EPF10DIODE GP 1KV 30A TO247AC |
9,789 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Standard | 1000 V | 30A | 1.41 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 450 ns | 100 µA @ 1000 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
|
VS-30EPH06HN3DIODE GP 600V 30A TO247AC |
7,953 |
|
Datasheet | FRED Pt® | TO-247-2 | Tube | Active | Standard | 600 V | 30A | 2.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 31 ns | 50 µA @ 600 V | - | - | - | Through Hole | TO-247AC Modified | -65°C ~ 175°C |
|

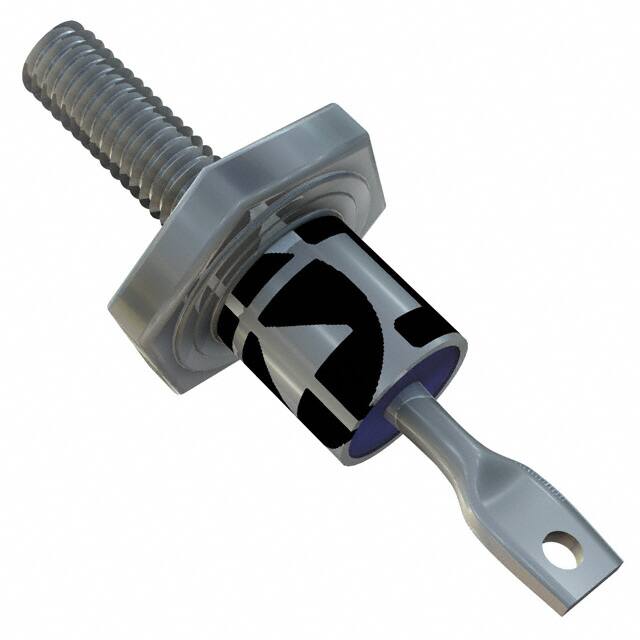

VS-1N3624DIODE GEN PURP 700V 12A DO203AA |
8,399 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 700 V | 12A | 1.35 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 900 µA @ 700 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
|
VS-1N3624RDIODE GP REV 700V 12A DO203AA |
8,136 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 700 V | 12A | 1.35 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 900 µA @ 700 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
|
40EPF06DIODE GP 600V 40A TO247AC |
9,005 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Standard | 600 V | 40A | 1.25 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | 180 ns | 100 µA @ 600 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
|
VSD3913DIODE GEN PURP 400V 30A DO203AB |
6,659 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 400 V | 30A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | - |
|
|
VSD3913RDIODE GEN PURP 400V 30A DO203AB |
2,773 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Discontinued at Digi-Key | Standard | 400 V | 30A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | - |
|
|
30EPF12DIODE GP 1.2KV 30A TO247AC |
6,285 |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | Standard | 1200 V | 30A | 1.41 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
