Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20ETF02SDIODE GEN PURP 200V 20A TO263AB |
5,474 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Standard | 200 V | 20A | 1.3 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 100 µA @ 200 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -40°C ~ 150°C |
|
|
20ETF04SDIODE GEN PURP 400V 20A TO263AB |
8,645 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Standard | 400 V | 20A | 1.3 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 100 µA @ 400 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -40°C ~ 150°C |
|
|
15TQ060SDIODE SCHOTTKY 60V 15A TO263AB |
6,692 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Schottky | 60 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 60 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 150°C |
|
|
VS-HFA08TB120SPBFDIODE GEN PURP 1.2KV 8A TO263AB |
3,326 |
|
Datasheet | HEXFRED® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Standard | 1200 V | 8A | 3.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 10 µA @ 1200 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 150°C |
|
HFA15TB60DIODE GEN PURP 600V 15A TO220AC |
8,545 |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Obsolete | Standard | 600 V | 15A | 1.7 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
20ETF06FPDIODE GP 600V 20A TO220ACFP |
8,502 |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | Standard | 600 V | 20A | 1.3 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 100 µA @ 600 V | - | - | - | Through Hole | TO-220AC Full Pack | -40°C ~ 150°C |
|
|
VS-HFA06TB120PBFDIODE GEN PURP 1.2KV 6A TO220AC |
3,757 |
|
Datasheet | HEXFRED® | TO-220-2 | Tube | Obsolete | Standard | 1200 V | 6A | 3 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 5 µA @ 1200 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
|
20ETF12DIODE GEN PURP 1.2KV 20A TO220AC |
9,723 |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | Standard | 1200 V | 20A | 1.31 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-220AC | -40°C ~ 150°C |
|

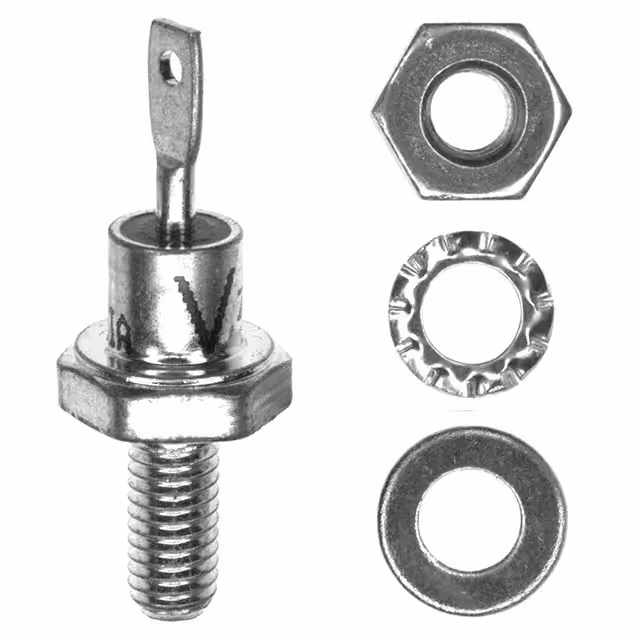

VS-12FR10DIODE GEN PURP 100V 12A DO203AA |
3,748 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
VS-65APF12L-M3DIODE GEN PURP 1.2KV 65A TO247AD |
7,899 |
|
Datasheet | - | TO-247-3 | Tube | Active | Standard | 1200 V | 65A | 1.42 V @ 65 A | Fast Recovery =< 500ns, > 200mA (Io) | 480 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AD | -40°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
