Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-40HFR20DIODE GEN PURP 200V 40A DO203AB |
89 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-16FR80DIODE GEN PURP 800V 16A DO203AA |
89 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 800 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
VS-40HF20DIODE GEN PURP 200V 40A DO203AB |
62 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-80PF80DIODE GEN PURP 800V 80A DO203AB |
43 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
VS-50PF40DIODE GEN PURP 400V 50A DO203AB |
57 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 50A | 1.4 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
|
VS-25FR100DIODE GEN PURP 1KV 25A DO203AA |
96 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
VS-16FLR60S02DIODE GP REV 600V 16A DO203AA |
56 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 16A | 1.4 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 50 µA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
VS-70HFR10DIODE GEN PURP 100V 70A DO203AB |
30 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 70A | 1.35 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
VS-1N3673ADIODE GEN PURP 1KV 12A DO203AA |
98 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1000 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 600 µA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|

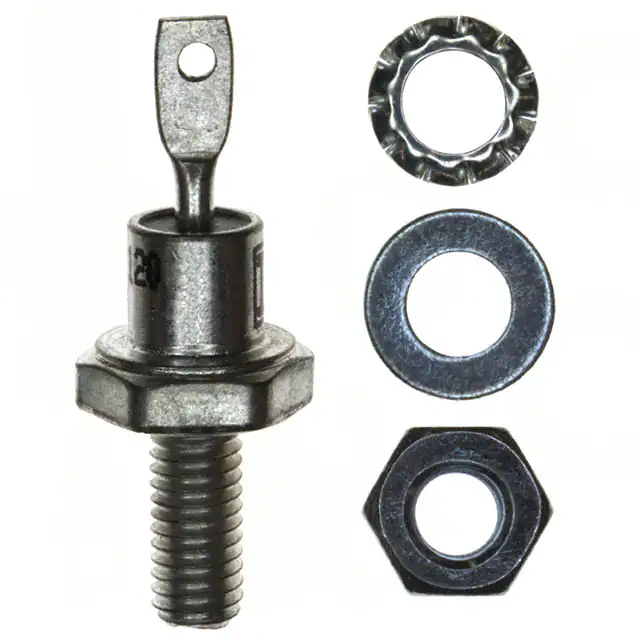

VS-25FR120DIODE GEN PURP 1.2KV 25A DO203AA |
75 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1200 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
