Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

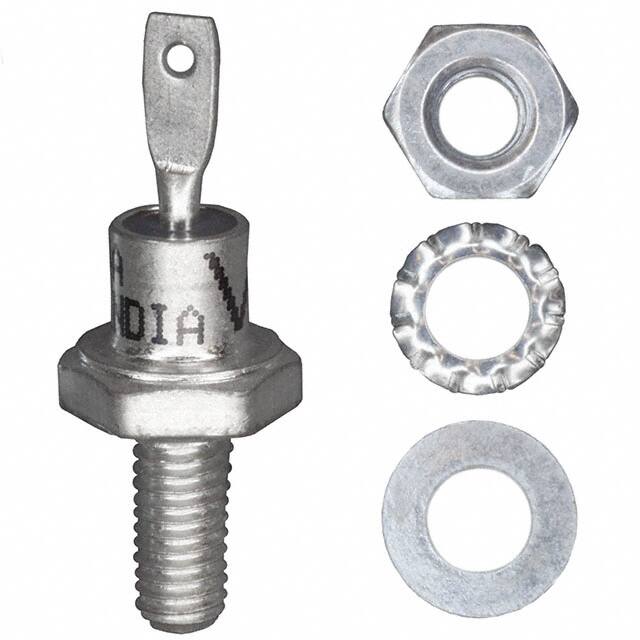

VS-1N1204ADIODE GEN PURP 400V 12A DO203AA |
80 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 1.5 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|

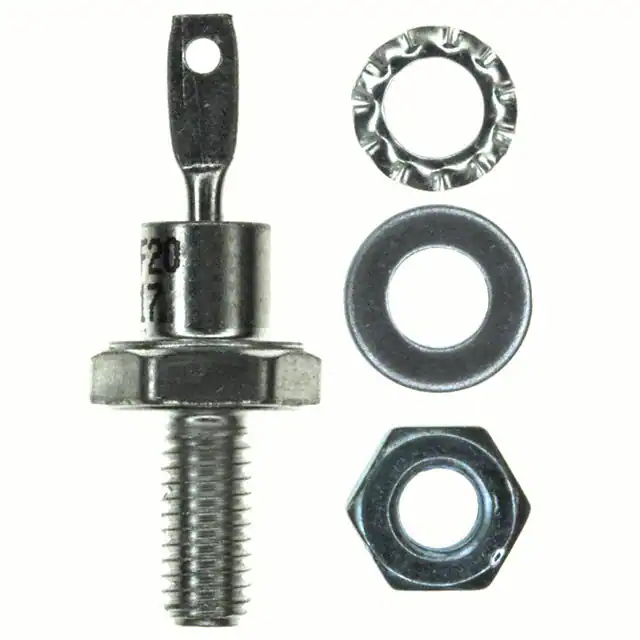

VS-12F20DIODE GEN PURP 200V 12A DO203AA |
73 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-12FR60DIODE GEN PURP 600V 12A DO203AA |
45 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

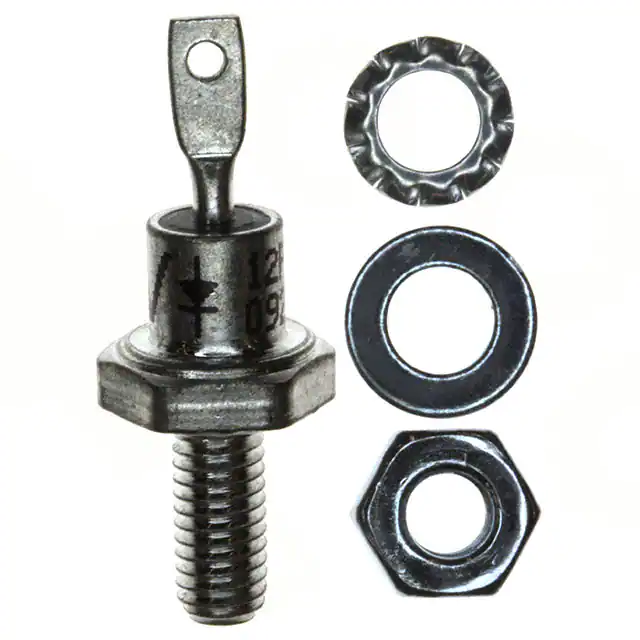

VS-12F60DIODE GEN PURP 600V 12A DO203AA |
100 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-25F40DIODE GEN PURP 400V 25A DO203AA |
69 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-1N1206ADIODE GEN PURP 600V 12A DO203AA |
74 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|

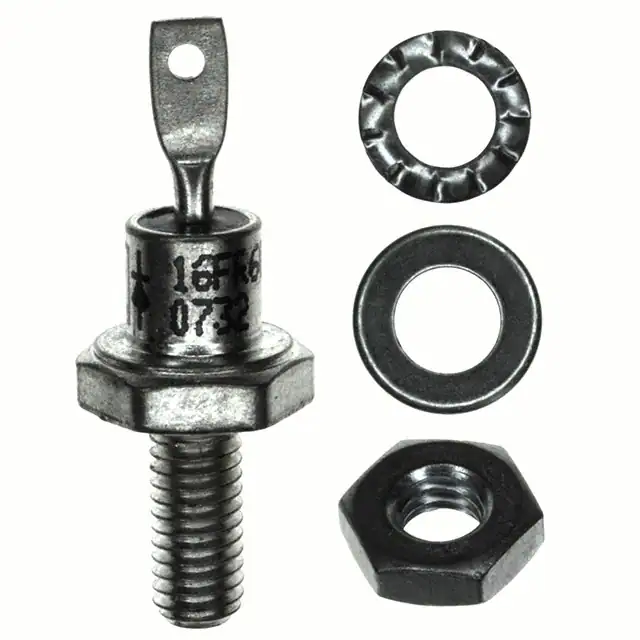

VS-16FR60DIODE GEN PURP 600V 16A DO203AA |
60 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-1N1183RDIODE GEN PURP 50V 35A DO203AB |
63 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 50 V | 35A | 1.7 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
40,80,120(W)-Series.jpg "VS-80PFR80W")
|
VS-80PFR80WDIODE GP REV 800V 80A DO203AB |
87 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|
VS-80PF80WDIODE GEN PURP 800V 80A DO203AB |
75 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
