Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V15PM6-M3/HDIODE SCHOTTKY 60V 15A TO277A |
875 |
|
Datasheet | eSMP®, TMBS® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | Schottky | 60 V | 15A | 640 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.2 mA @ 60 V | 2300pF @ 4V, 1MHz | - | - | Surface Mount | TO-277A (SMPC) | -40°C ~ 175°C |
|
VS-6EWH06FN-M3DIODE GEN PURP 600V 6A DPAK |
530 |
|
Datasheet | FRED Pt® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 6A | 2.1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 27 ns | 50 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -65°C ~ 175°C |
|
VS-ETX0806FP-M3DIODE GP 600V 8A TO220-2FP |
90 |
|
Datasheet | FRED Pt® | TO-220-2 Full Pack | Bulk | Active | Standard | 600 V | 8A | 3.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 17 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-220-2 Full Pack | -65°C ~ 175°C |
|
FES8JT-E3/45DIODE GEN PURP 600V 8A TO220AC |
77 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 150°C |
|
RGP30D-E3/73DIODE GEN PURP 200V 3A DO201AD |
1,071 |
|
Datasheet | SUPERECTIFIER® | DO-201AD, Axial | Cut Tape (CT) | Active | Standard | 200 V | 3A | 1.3 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 200 V | - | - | - | Through Hole | DO-201AD | -65°C ~ 175°C |
|
|
VS-MBR1035-M3DIODE SCHOTTKY 35V 10A TO220AC |
29 |
|
Datasheet | - | TO-220-2 | Tube | Active | Schottky | 35 V | 10A | 840 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 35 V | 600pF @ 5V, 1MHz | - | - | Through Hole | TO-220AC | -65°C ~ 150°C |
|
VS-E5TH3006S2L-M3DIODE GEN PURP 600V 30A TO263AB |
96 |
|
Datasheet | FRED Pt® G5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 41 ns | 20 µA @ 600 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 175°C |
|
VS-16F20DIODE GEN PURP 200V 16A DO203AA |
91 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

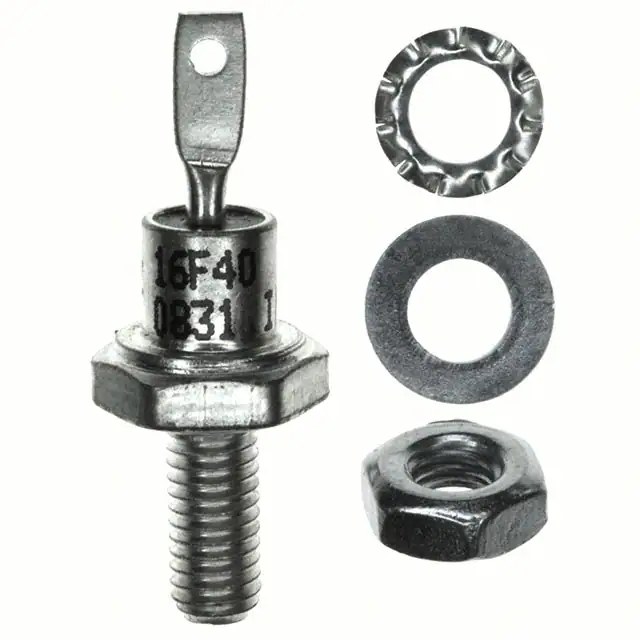

VS-16F40DIODE GEN PURP 400V 16A DO203AA |
88 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-16FR10DIODE GEN PURP 100V 16A DO203AA |
31 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
