Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-60EPU02-N3DIODE GP 200V 60A TO247AC |
554 |
|
Datasheet | FRED Pt® | TO-247-2 | Tube | Active | Standard | 200 V | 60A | 1.08 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 28 ns | 50 µA @ 200 V | - | - | - | Through Hole | TO-247AC Modified | -55°C ~ 175°C |
|

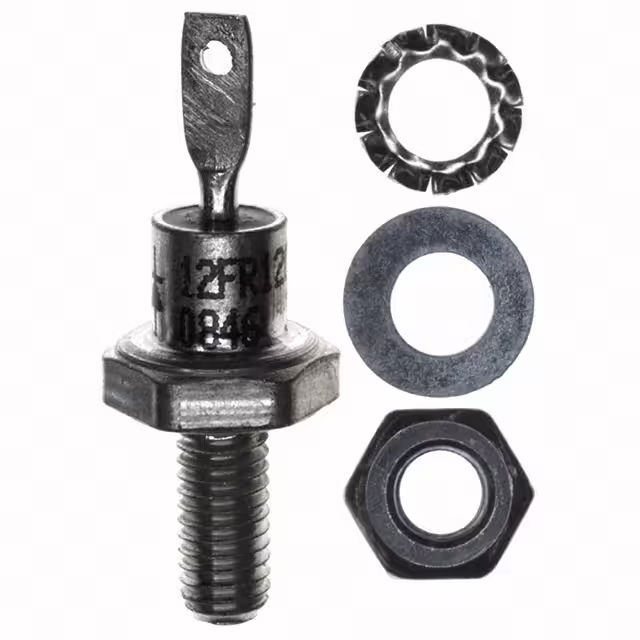

VS-12FR120DIODE GEN PURP 1.2KV 12A DO203AA |
475 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1200 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

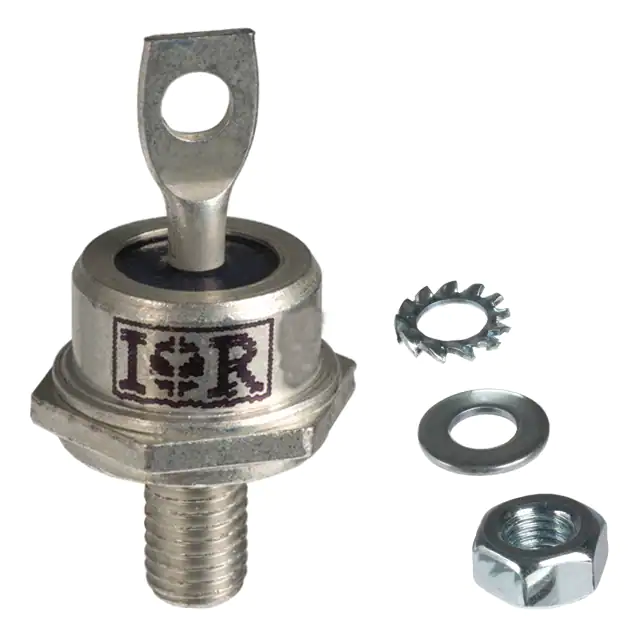

VS-40HF40DIODE GEN PURP 400V 40A DO203AB |
221 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HF60DIODE GEN PURP 600V 40A DO203AB |
139 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-60APF12-M3DIODE GEN PURP 1.2KV 60A TO247AC |
627 |
|
Datasheet | - | TO-247-3 | Tube | Active | Standard | 1200 V | 60A | 1.4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 480 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AC | -40°C ~ 150°C |
|
|
VS-1N2128ADIODE GEN PURP 50V 60A DO203AB |
102 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 50 V | 60A | 1.3 V @ 188 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
VS-HFA30PB120-N3DIODE GP 1.2KV 30A TO247AC |
154 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 1200 V | 30A | 4.1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 170 ns | 40 µA @ 1200 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AC Modified | -55°C ~ 150°C |
|
|
VS-70HFL100S05DIODE GEN PURP 1KV 70A DO203AB |
244 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 70A | 1.85 V @ 219.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 100 µA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-85HFR60DIODE GEN PURP 600V 85A DO203AB |
120 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 85A | 1.2 V @ 267 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
VS-T40HF60DIODE GEN PURP 600V 40A D-55 |
124 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 600 V | 40A | - | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 600 V | - | - | - | Chassis Mount | D-55 | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
