Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

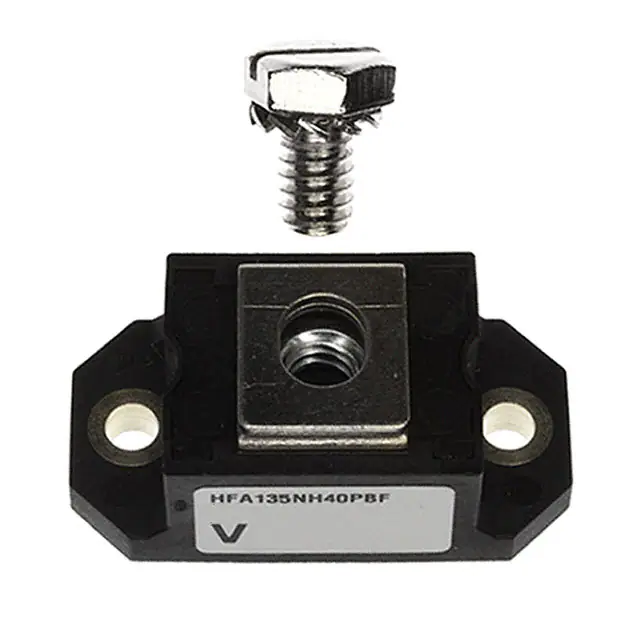

VS-HFA135NH40PBFDIODE GEN PURP 400V 275A D-67 |
136 |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Active | Standard | 400 V | 275A | 2 V @ 270 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 3 mA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

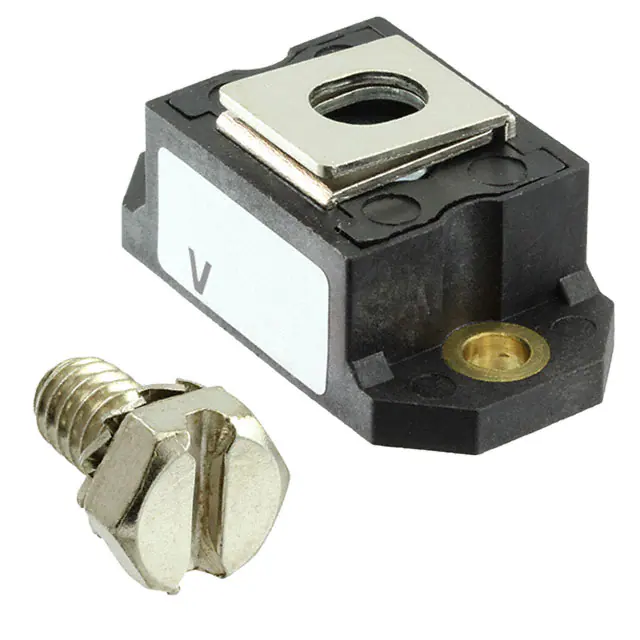

VS-243NQ100PBFDIODE SCHOTTKY 100V 240A D-67 |
168 |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Active | Schottky | 100 V | 240A | 950 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | 5500pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | -55°C ~ 175°C |
|
VS-T85HFL100S05DIODE GEN PURP 1KV 85A D-55 |
368 |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 1000 V | 85A | - | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 20 mA @ 1000 V | - | - | - | Chassis Mount | D-55 | - |
|
VS-400UR120DDIODE GP REV 1.2KV 400A DO205AB |
28 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Last Time Buy | Standard, Reverse Polarity | 1200 V | 400A | 1.62 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1200 V | - | - | - | Stud Mount | DO-205AB (DO-9) | -40°C ~ 200°C |
|
BAV20-TRDIODE GEN PURP 150V 250MA DO35 |
49,217 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 150 V | 250mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 150 V | 1.5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
1N4154TRDIODE GEN PURP 25V 150MA DO35 |
48,553 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 25 V | 150mA | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 25 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
BAW76-TAPDIODE GEN PURP 50V 300MA DO35 |
43,756 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | Standard | 50 V | 300mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 50 V | 2pF @ 0V, 1MHz | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
|
1N4448TRDIODE GEN PURP 100V 150MA DO35 |
22,705 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 8 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
BAS16-E3-18DIODE GEN PURP 75V 150MA SOT23-3 |
6,978 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 1 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 | -55°C ~ 150°C |
|
|
BAS20-E3-18DIODE GP 150V 200MA SOT23-3 |
6,716 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 150 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 150 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 | -55°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
