Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BY228GP-E3/54DIODE GP 1.5KV 2.5A DO201AD |
5,804 |
|
Datasheet | SUPERECTIFIER® | DO-201AD, Axial | Tape & Reel (TR) | Active | Standard | 1500 V | 2.5A | 1.6 V @ 2.5 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 5 µA @ 1500 V | 40pF @ 4V, 1MHz | - | - | Through Hole | DO-201AD | -65°C ~ 150°C |
|
VS-20L15TS-M3DIODE SCHOTTKY 15V 20A TO263AB |
560 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Schottky | 15 V | 20A | 410 mV @ 19 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | 2000pF @ 5V, 1MHz | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 125°C |
|
V30100S-M3/4WDIODE SCHOTTKY 100V 30A TO220-3 |
8,000 |
|
Datasheet | TMBS® | TO-220-3 | Tube | Active | Schottky | 100 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 100 V | - | - | - | Through Hole | TO-220-3 | -40°C ~ 150°C |
|
VS-HFA04SD60S-M3DIODE GEN PURP 600V 4A DPAK |
1,286 |
|
Datasheet | HEXFRED® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Standard | 600 V | 4A | 1.8 V @ 4 A | - | - | 3 µA @ 600 V | - | - | - | Surface Mount | TO-252AA (DPAK) | -55°C ~ 150°C |
|
VS-ETH3007-M3DIODE GEN PURP 650V 30A TO220AC |
622 |
|
Datasheet | FRED Pt® | TO-220-2 | Tube | Active | Standard | 650 V | 30A | 2.1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 37 ns | 30 µA @ 650 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|
|
VS-8EWF12SLHM3DIODE GEN PURP 1.2KV 8A DPAK |
792 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Standard | 1200 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 270 ns | 100 µA @ 1200 V | - | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) | -40°C ~ 150°C |
|
VS-15ETH06FP-N3DIODE GP 600V 15A TO220-2FP |
383 |
|
Datasheet | FRED Pt® | TO-220-2 Full Pack | Tube | Active | Standard | 600 V | 15A | 2.2 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 29 ns | 40 µA @ 600 V | - | - | - | Through Hole | TO-220-2 Full Pack | -65°C ~ 175°C |
|
|
VBT4045BP-E3/8WDIODE SCHOTTKY 45V 40A TO263AB |
12,534 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Schottky | 45 V | 40A | 670 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | 200°C (Max) |
|

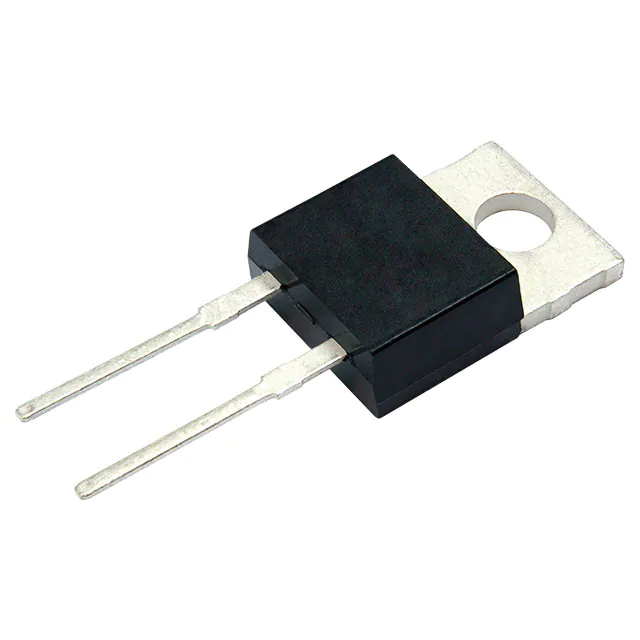

VS-E5TH3006-M3DIODE GEN PURP 600V 30A TO220AC |
5,784 |
|
Datasheet | FRED Pt® | TO-220-2 | Tube | Active | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 20 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|
|
VS-ETH3006-M3DIODE GEN PURP 600V 30A TO220AC |
3,296 |
|
Datasheet | FRED Pt® | TO-220-2 | Tube | Active | Standard | 600 V | 30A | 2.65 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 26 ns | 30 µA @ 600 V | - | - | - | Through Hole | TO-220AC | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
