Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3480DIODE GEN PURP 800V 45A DO203AB |
10 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 45A | 1.15 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 800 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
JANTX1N3070-1DIODE GEN PURP 175V 100MA DO7 |
3 |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Active | Standard | 175 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 175 V | - | Military | MIL-PRF-19500/169 | Through Hole | DO-7 | -65°C ~ 175°C |
|

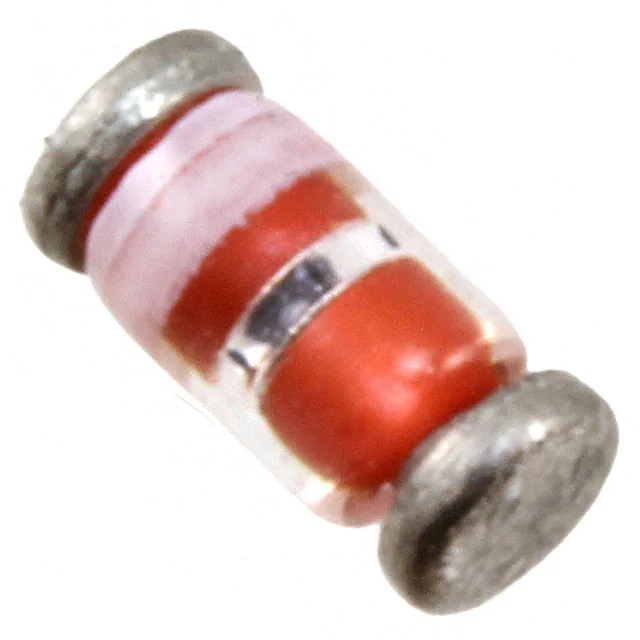

CDS5711UR-1DIODE SCHOTTKY DO-213AA |
23 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JANTX1N6663DIODE GEN PURP 600V 500MA DO35 |
2 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 600 V | 500mA | 1 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 nA @ 600 V | - | Military | MIL-PRF-19500/587 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N6779DIODE GEN PURP 600V 15A TO257 |
17 |
|
Datasheet | - | TO-257-3 | Bulk | Active | Standard | 600 V | 15A | 1.6 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 480 V | 300pF @ 5V, 1MHz | Military | MIL-PRF-19500/647 | Through Hole | TO-257 | 150°C (Max) |
|

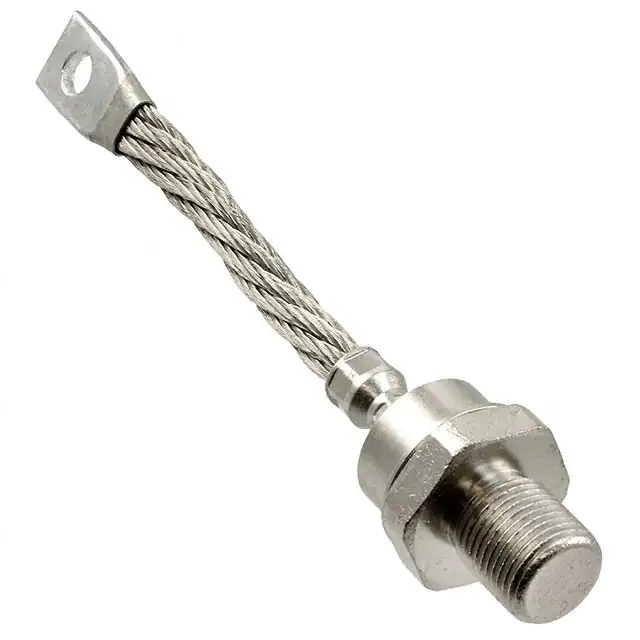

JAN1N3174DIODE GP 1KV 300A DO205AB DO9 |
3 |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1000 V | 300A | 1.55 V @ 940 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 1000 V | - | Military | MIL-PRF-19500/211 | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
|
|
JANTX1N4148UR-1DIODE GEN PURP 75V 200MA DO213AA |
4,141 |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
1N5614DIODE GEN PURP 200V 1A AXIAL |
8,128 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 200 V | - | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|
JANTX1N5618DIODE GEN PURP 600V 1A AXIAL |
2 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 600 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
1N5806DIODE GEN PURP 150V 1A A AXIAL |
6,263 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 150 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
