Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT15DQ120KGDIODE GP 1.2KV 15A TO220 |
718 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 1200 V | 15A | 3.3 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
APT15D60KGDIODE GP 600V 15A TO220 |
88 |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 600 V | 15A | 1.8 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 250 µA @ 600 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
MSC010SDA070KDIODE SIL CARB 700V 10A TO220-2 |
55 |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 10A | 1.5 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
JANTX1N6638DIODE GEN PURP 125V 300MA D5B |
80 |
|
Datasheet | - | D, Axial | Bulk | Active | Standard | 125 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 125 V | - | Military | MIL-PRF-19500/578 | Through Hole | D-5D | -65°C ~ 175°C |
|
JANTX1N5418DIODE GEN PURP 400V 3A AXIAL |
75 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5550DIODE GEN PURP 200V 5A AXIAL |
83 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 200 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5553DIODE GEN PURP 800V 5A AXIAL |
91 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|

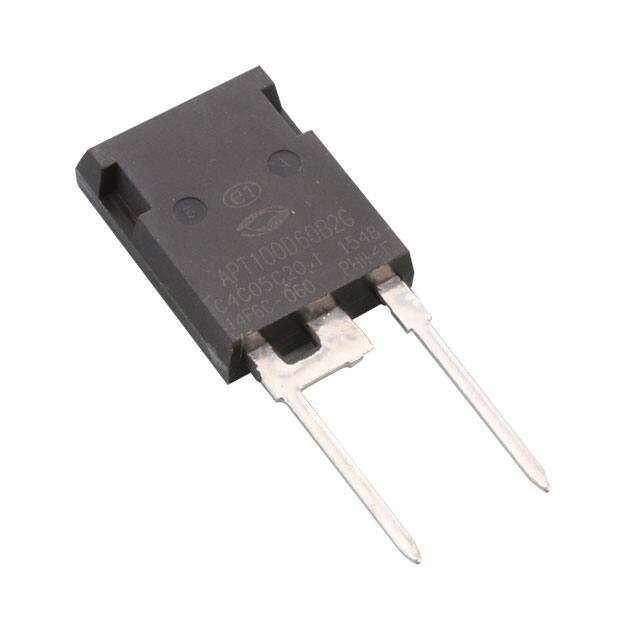

APT100D60B2GDIODE GEN PURP 600V 100A TO247 |
46 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 100A | - | - | - | - | - | - | - | Through Hole | TO-247 | - |
|
MSC020SDA120BDIODE SIL CARB 1.2KV 49A TO247 |
37 |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|
|
MSC050SDA070BDIODE SIL CARBIDE 700V 50A TO247 |
59 |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 50A | 1.5 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
