Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6621USDIODE GEN PURP 440V 1.2A A-MELF |
38 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 440 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 440 V | 10pF @ 10V, 1MHz | - | - | Surface Mount | A-MELF | -65°C ~ 150°C |
|
MSC030SDA120BCTDIODE SIL CARB 1.2KV 65A TO247-3 |
24 |
|
Datasheet | - | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 65A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 141pF @ 400V, 1MHz | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
UES1306DIODE GEN PURP 400V 3A AXIAL |
45 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.25 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 20 µA @ 400 V | - | - | - | Through Hole | B, Axial | -55°C ~ 150°C |
|
|
MSC030SDA170BDIODE SIL CARB 1.7KV 82A TO247 |
44 |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 82A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1700 V | 2070pF @ 1V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|

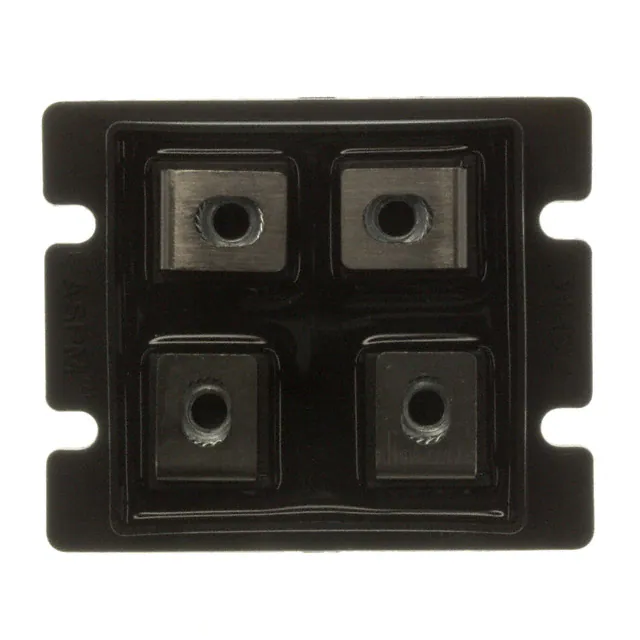

APTDF500U40GDIODE GEN PURP 400V 500A LP4 |
10 |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 400 V | 500A | 1.5 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 2.5 mA @ 400 V | - | - | - | Chassis Mount | LP4 | - |
|
APT30D30BGDIODE GP 300V 30A TO247 |
44 |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 300 V | 30A | 1.4 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 250 µA @ 300 V | - | - | - | Through Hole | TO-247 [B] | -55°C ~ 175°C |
|
|
1N5818-1DIODE SCHOTTKY 30V 1A DO41 |
91 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | Schottky | 30 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | - | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 150°C |
|
1N5616USDIODE GEN PURP 400V 1A D-5A |
92 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 400 V | - | - | - | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
1N5553USDIODE GEN PURP 800V 3A B SQ-MELF |
40 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 800 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
MSC030SDA120SDIODE SIL CARB 1.2KV 30A D3PAK |
84 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 30A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Surface Mount | D3PAK | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
