Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N914UR/TRSIGNAL OR COMPUTER DIODE |
104 |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.2 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JAN1N5615DIODE GEN PURP 200V 1A AXIAL |
853 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 175°C |
|
APT60D120SGDIODE GEN PURP 1.2KV 60A D3 |
156 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | Standard | 1200 V | 60A | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 250 µA @ 1200 V | - | - | - | Surface Mount | D3PAK | -55°C ~ 175°C |
|
|
1N3600UR/TRSIGNAL OR COMPUTER DIODE |
177 |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 75 V | 300mA | 1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 50 V | 2.5pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JAN1N5809DIODE GEN PURP 100V 6A AXIAL |
117 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 6A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTX1N914URDIODE GEN PURP 75V 200MA DO213AA |
233 |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
1N3070-1DIODE GEN PURP 175V 100MA DO7 |
257 |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Active | Standard | 175 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | - | - | - | - | Through Hole | DO-7 | -65°C ~ 175°C |
|
|
1N3070UR-1/TRSIGNAL OR COMPUTER DIODE |
135 |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 175 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 175 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JANTX1N5809USDIODE GEN PURP 100V 3A B SQ-MELF |
108 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|

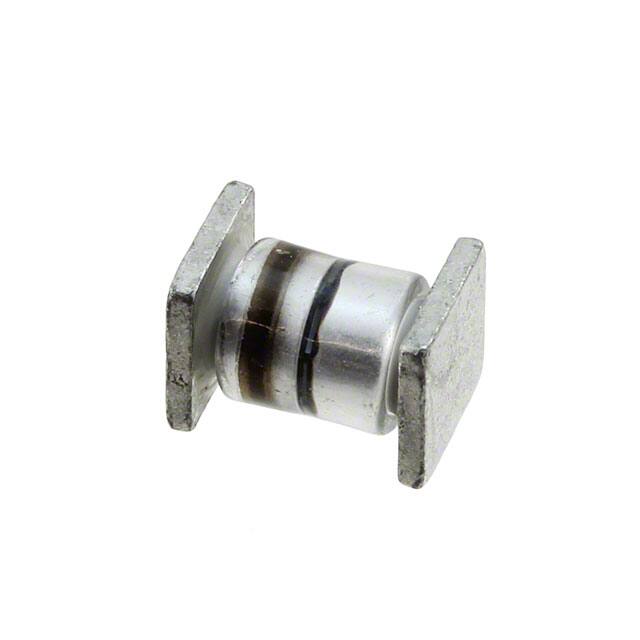

1N5418USDIODE GEN PURP 400V 3A D-5B |
102 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
