Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5711-1DIODE SCHOTTKY 70V 33MA DO35 |
836 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 70 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|

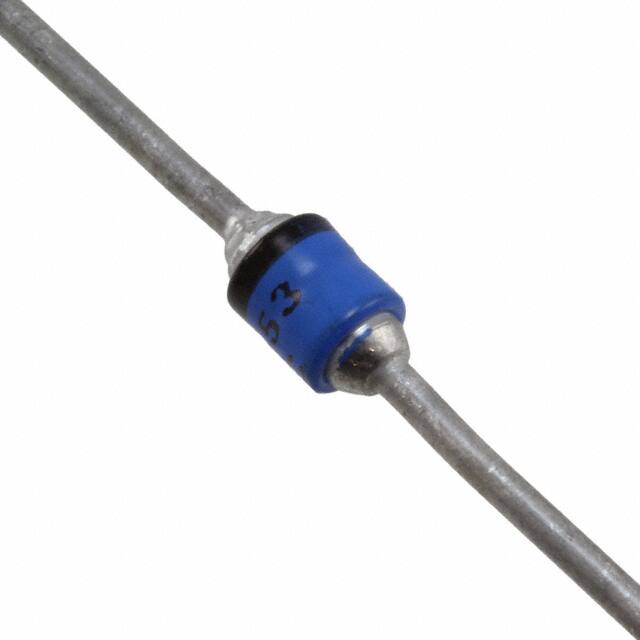

1N5553DIODE GEN PURP 800V 3A AXIAL |
251 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 800 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5551USDIODE GEN PURP 400V 3A D-5B |
165 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 400 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | - | - | Surface Mount | D-5B | -65°C ~ 175°C |
|
MSC030SDA070BDIODE SIL CARBIDE 700V 60A TO247 |
118 |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 60A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 700 V | 1200pF @ 1V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|

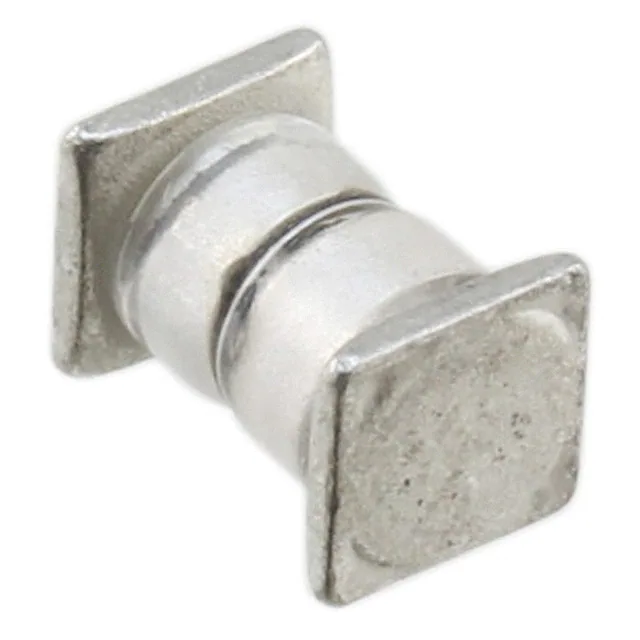

1N3595USDIODE GEN PURP 4A B SQ-MELF |
158 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | - | 4A | 1 V @ 200 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 1 nA @ 125 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
CDLL5711DIODE SCHOTTKY 50V 33MA DO213AA |
265 |
|
Datasheet | - | DO-213AA | Bulk | Active | Schottky | 50 V | 33mA | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 150°C |
|

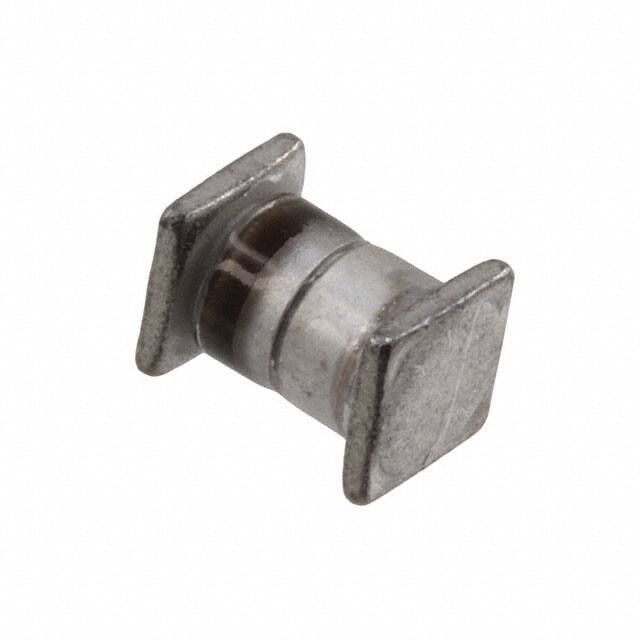

1N5416USDIODE GEN PURP 100V 3A D-5B |
111 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 100 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 100 V | - | - | - | Surface Mount | D-5B | -65°C ~ 175°C |
|
MSC030SDA120BDIODE SIL CARB 1.2KV 30A TO247 |
1,046 |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 30A | 1.5 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
|
|
MSC020SDA120SDIODE SIL CARB 1.2KV 49A D3PAK |
869 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Surface Mount | D3PAK | -55°C ~ 175°C |
|
JANTX1N5190DIODE GEN PURP 600V 3A AXIAL |
189 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
