Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4247DIODE GEN PURP 600V 1A AXIAL |
338 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 600 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
1N3595UR-1DIODE GP 125V 150MA DO213AA |
624 |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|

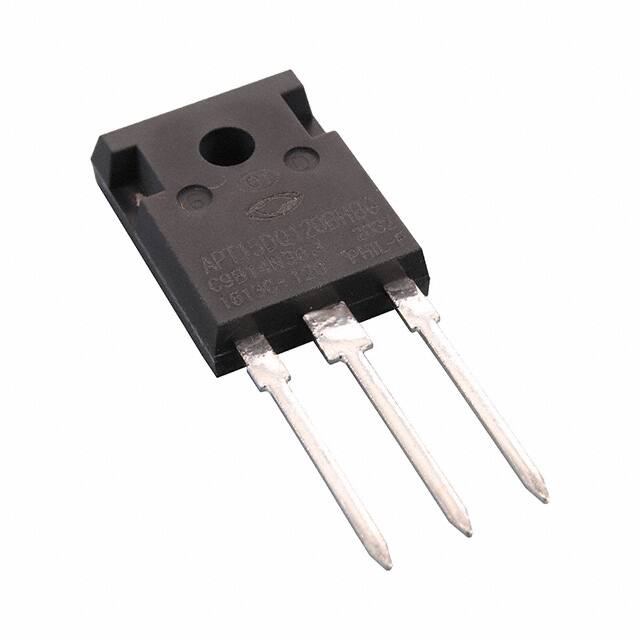

APT15DQ120BHBGDIODE GEN PURP 1.2KV 15A TO247-3 |
101 |
|
Datasheet | - | TO-247-3 | Tube | Active | Standard | 1200 V | 15A | 3.5 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
MSC030SDA070KDIODE SIL CARB 700V 30A TO220-2 |
119 |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 30A | 1.5 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
MSC015SDA120BDIODE SCHOTTKY 1.2KV 15A TO247 |
134 |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 15A | 1.5 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
|
JANTX1N3595UR-1DIODE GP 125V 150MA DO213AA |
141 |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | Military | MIL-S-19500-241 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
MSC020SDA120KDIODE SIL CARB 1.2KV 49A TO220-2 |
105 |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
UES1104DIODE GEN PURP 200V 1A AXIAL |
105 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 200 V | - | - | - | Through Hole | A, Axial | -55°C ~ 150°C |
|
|
MNS1N6627US/TRDIODE GEN PURP 440V 1.75A E-MELF |
483 |
|
Datasheet | - | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 440 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | - | - | - | Surface Mount | E-MELF | -65°C ~ 150°C |
|
|
1N4153UR/TRSIGNAL OR COMPUTER DIODE |
610 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
