Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1284NLPULSE XFMR 155UH |
1,154 |
|
Datasheet | - | Tray | Active | - | 155µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
HX6621NLMDL SIN 1GPP 1:1 SMT TY |
4,302 |
|
Datasheet | - | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HXU6200NLXFRMR MAGNETIC 1PORT 1GIG MED |
2,217 |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | - | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
H5400NLTXFRMR MODULE QUAD 1G 1:1 BGA SMD |
3,511 |
|
Datasheet | H5400NLT | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.420" (10.67mm) | 0°C ~ 70°C | - | - |
|

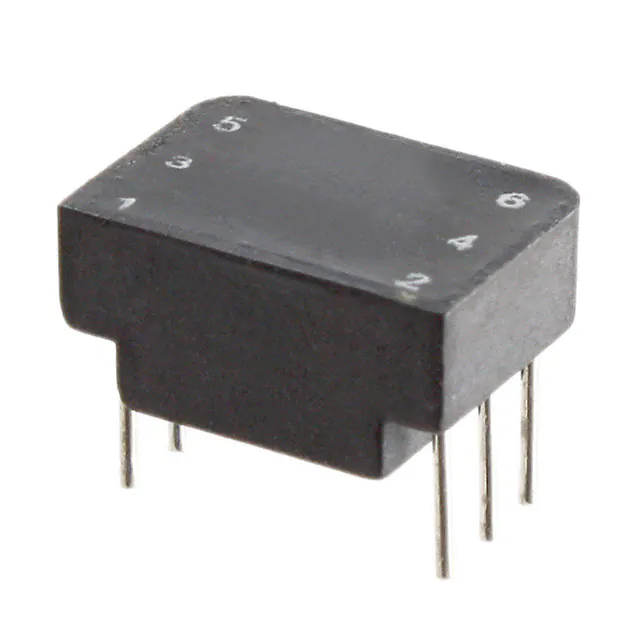

PE-65948NLXFRMR 1CT:1CT FOR ECHELON/NEURON |
1,674 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH, 6.5mH | - | 1CT:1CT | Through Hole | 0.510" L x 0.360" W (12.95mm x 9.15mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PAT6625.001NLTXMR, FLYBACK, EP17P, 19-37V INPU |
4,415 |
|
Datasheet | * | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - |
|
23Z467SMPULSE XFMR 1CT:2CT TX 1CT:1CT RX |
2,357 |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

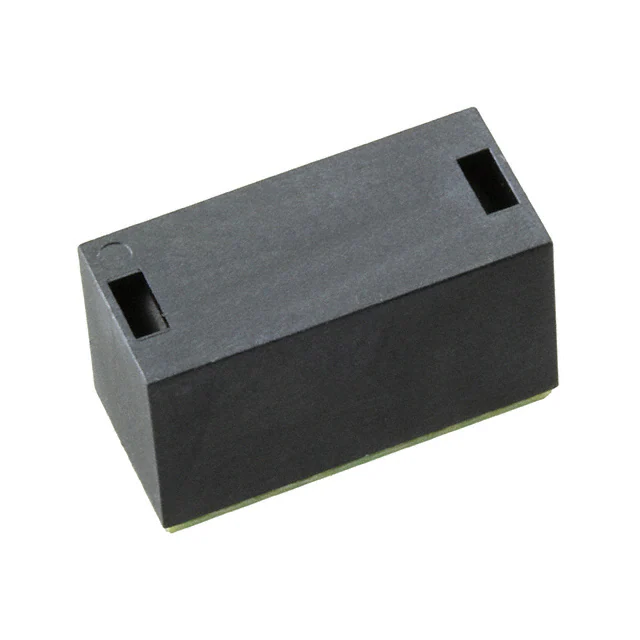

H6600NLTTRANSFORMER MODULE 10GBASE-T |
4,542 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|

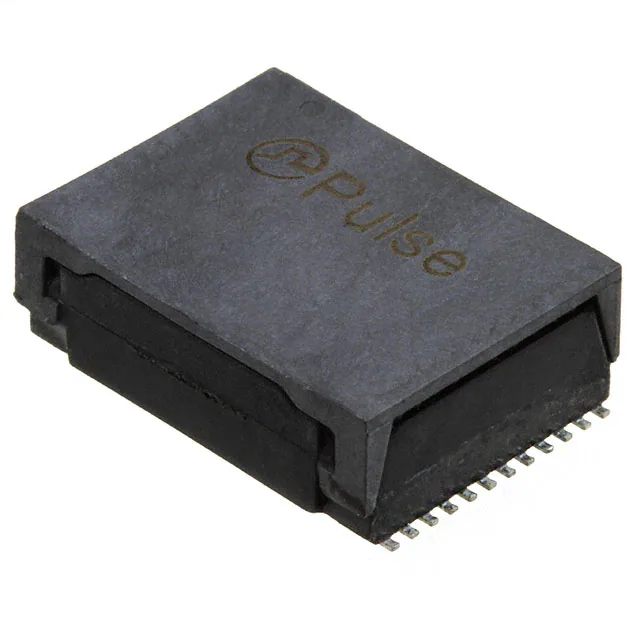

H2009FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,749 |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
|
H5009FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,840 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
