Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H5014NLMODULE DL GIGABIT ETHER LAN 48P |
2,858 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
H5020NLTRANSFORMER MODULE GIGABIT 2PORT |
2,980 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.341" (8.66mm) | 0°C ~ 70°C | - | - |
|
P5008NLPULSE XFMR 1:0.07:0.07 |
2,430 |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
P5004NLPULSE XFMR 1:0.07:0.07 |
2,410 |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9185.013NLTRANSFORMER 200UH 1:3 SMD |
4,820 |
|
Datasheet | PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

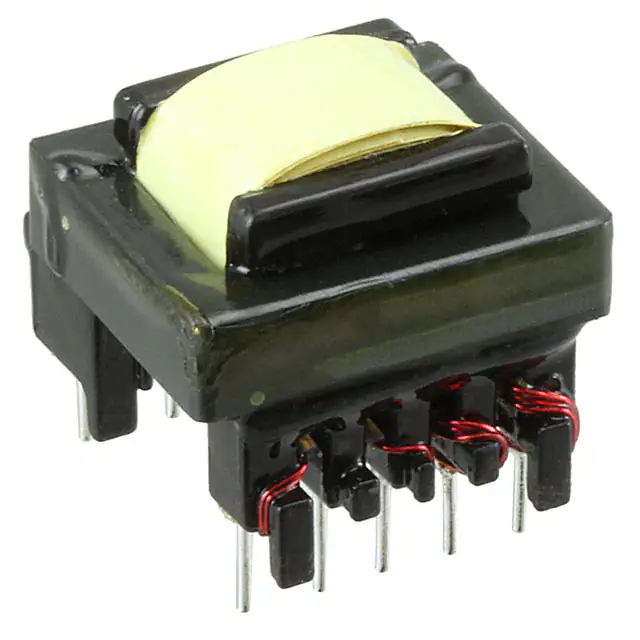

PA2653NLPULSE XFMR 910UH |
3,759 |
|
Datasheet | - | Tray | Active | - | 910µH | - | - | Through Hole | 0.920" L x 0.960" W (23.37mm x 24.38mm) | 0.810" (20.57mm) | -40°C ~ 130°C | - | - |
|
HX1217NLTPULSE XFMR 1:1 TX 1:1 RX 350UH |
4,618 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
E4001NLTXFRMR LAN ISOL 10BASE-T 1:2 SMD |
4,257 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 112µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
HX1178NLTXFRMR MODULE 1PORT 1:1 10/100 |
1,473 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H1664FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,993 |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
