Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T5007NLTXFRMR ISDN-S 1:2/1:2 22MH SMD |
1,549 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2, 1:2 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
H2009NLMODULE XFRMR VOIP DL LAN 24-SOIC |
2,132 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | 0°C ~ 70°C | - | - |
|
HDX8006NLMDL,SIN, HDBASET, 140W, SMT |
1,904 |
|
Datasheet | - | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
TX1475NLXFRMR OCTAL 1:2/1:1 1.2MH SMD |
2,564 |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1193NLMODULE 1CT:2CT 1.2MH SMD |
1,300 |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

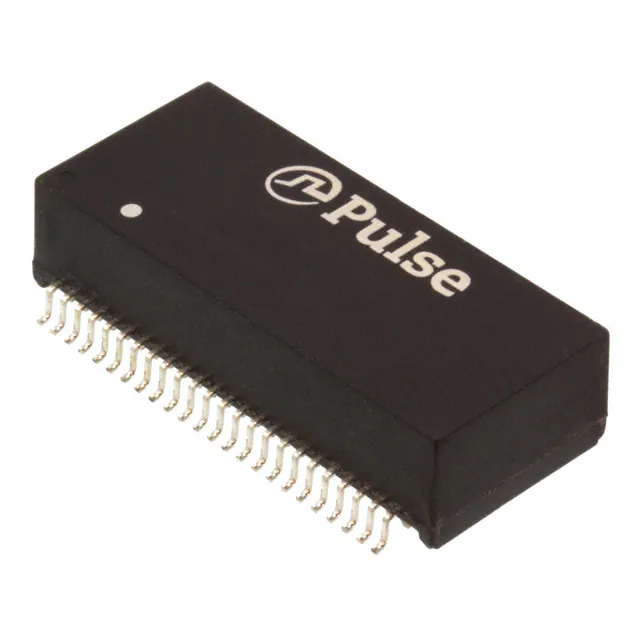

H5014NLTTRANSFORMER MODULE GIGABIT 2PORT |
4,383 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
H2017NLTXFRMR MAGNT MOD 4PORT POE 10/100 |
1,276 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
H6101NLPULSE XFMR 1CT:1CT TX/RX |
3,548 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
H6200NLPULSE XFMR 1CT:1CT TX/RX |
4,802 |
|
Datasheet | - | Tray | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
PM2180.034NLXFMR GATE-DR 3CT:4CT SM NPB |
3,362 |
|
Datasheet | PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3:4CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
