Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

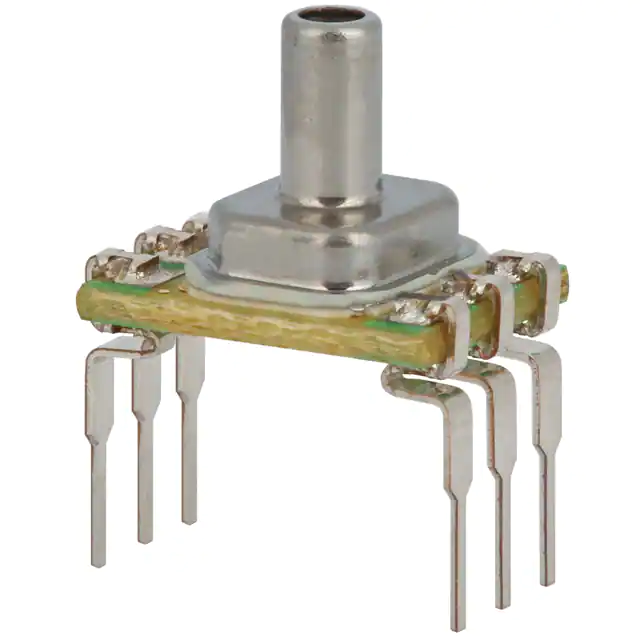

ABP2DSNT150PGAA5XXSENSOR 150PSIG 0.107" 4.5V 6DIP |
4,224 |
|
Datasheet | ABP2 | 6-DIP (0.453", 11.50mm), Top Port | Box | Active | - | Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.107" (2.72mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 240PSI (1654.74kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|

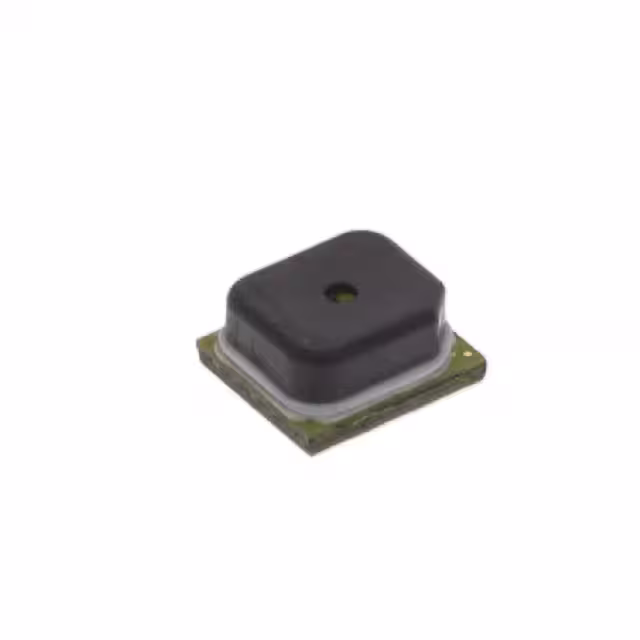

ABP2LNNT400KA2A3XXSENSOR 58.02PSIA 14BIT 6SMT |
3,740 |
|
Datasheet | ABP2 | 6-SMD, No Lead | Box | Active | - | Absolute | 58.02PSI (400kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 232.06PSI (1600kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|
NSCDRRN001PDUNVSENSOR 1PSID 0.08" .065V 8DIP |
3,212 |
|
Datasheet | TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 65 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDANN150PASA5SENSOR 150PSIA 0.19" 12BIT 8DIP |
100 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSAAN010NDAA5SENSOR 0.36PSID 0.19" 4.5V 4SIP |
4,881 |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
26PCAFA6DSENSOR 1PSID 0.2" .0167V |
1,337 |
|
Datasheet | 26PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

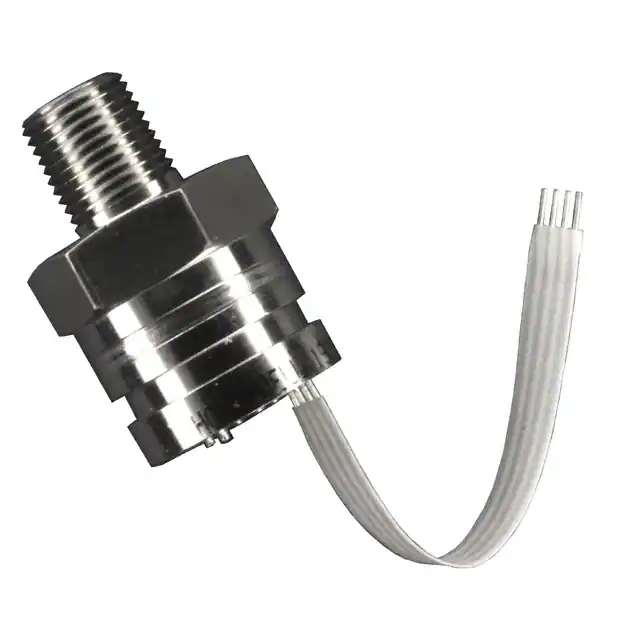

19C015PA4KSENSOR 15PSIA 1/8"NPT 0.1V |
2,464 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|

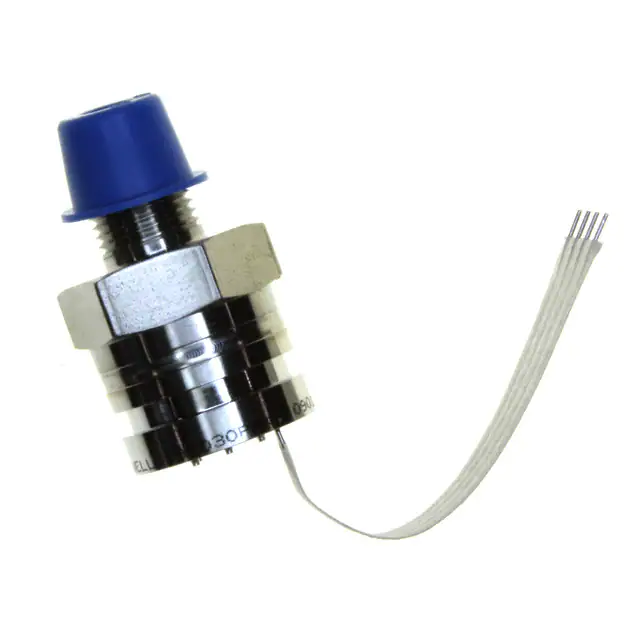

19C030PA4KSENSOR 30PSIA 1/8"NPT 0.1V |
4,256 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|

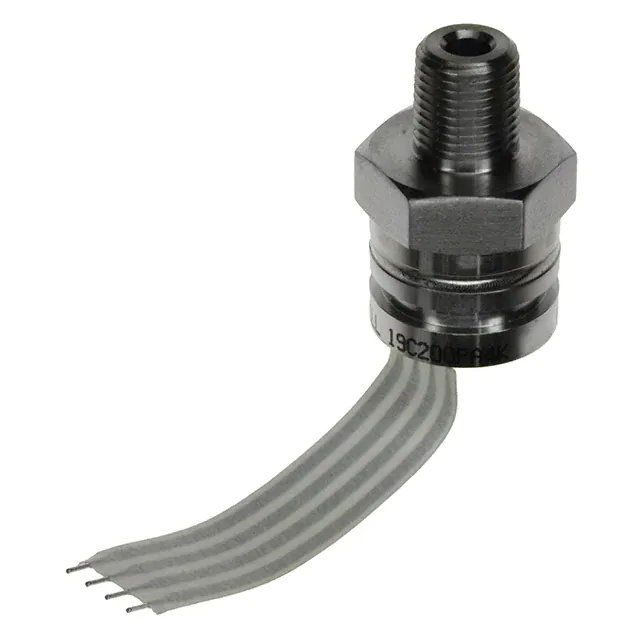

19C200PA4KSENSOR 200PSIA 1/8"NPT 0.1V |
3,229 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|

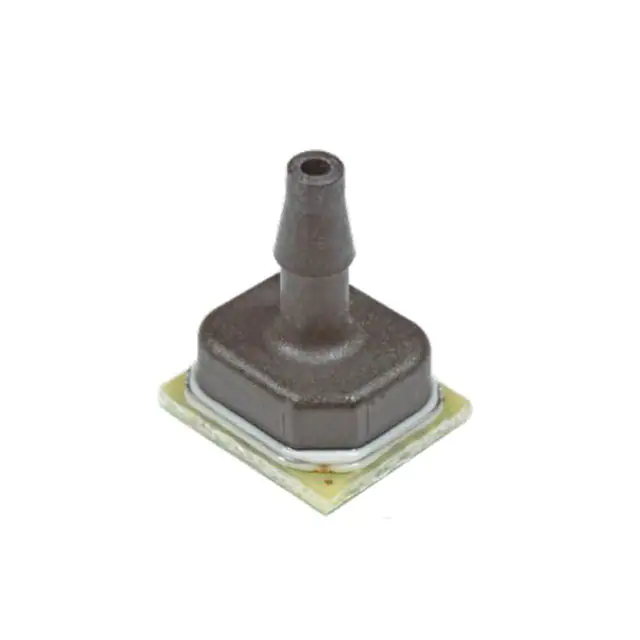

ABP2LANT001PG2A3XXSENSOR 1PSIG 0.11" 14BIT 6SMT |
2,801 |
|
Datasheet | ABP2 | 6-SMD, No Lead, Top Port | Box | Active | - | Vented Gauge | 1PSI (6.89kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
