Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19C030PA6LSENSOR 30PSIA 7/16" 0.1V |
4,803 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C005PG4KSENSOR 5PSIG 1/8"NPT .05V |
2,690 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0 mV ~ 50 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C005PG1KSENSOR 5PSIG 0.1V |
2,039 |
|
Datasheet | 19 mm | Cylinder | Bulk | Active | - | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PA5LSENSOR 100PSIA 1/4"NPT 0.1V |
1,126 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PA1LSENSOR 100PSIA 0.1V |
2,512 |
|
Datasheet | 19 mm | Cylinder | Bulk | Active | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PA2LSENSOR 200PSIA 0.1V |
4,183 |
|
Datasheet | 19 mm | Cylinder | Bulk | Active | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PG5KSENSOR 200PSIG 1/4"NPT 0.1V |
4,381 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
13C2000PA1KSENSOR 2000PSIA .102V |
4,357 |
|
Datasheet | 13 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 2000PSI (13789.51kPa) | Wheatstone Bridge | 98 mV ~ 102 mV | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 6000PSI (41368.54kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C050PA2LSENSOR 50PSIA 0.1V |
3,642 |
|
Datasheet | 19 mm | Cylinder | Bulk | Active | - | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|

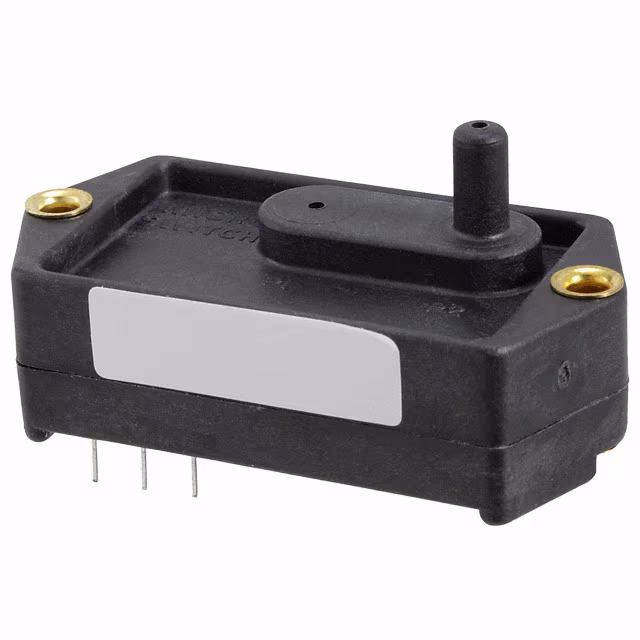

141PC15GSENSOR 15PSI 0.2" 6V |
4,140 |
|
Datasheet | 140PC | 3-SIP Module | Bulk | Active | Board Mount | Vacuum | -15PSI (-103.42kPa) | Analog Voltage | 1 V ~ 6 V | ±0.4% | 7V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | -45PSI (-310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
