Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26PCAFG6GSENSOR 1PSIG 0.09" .0167V 8SMD |
1,700 |
|
Datasheet | 26PC | 8-SMD Module | Bulk | Active | Board Mount | Vented Gauge | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.09" (2.4mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
19C030PG1LSENSOR 30PSIG 0.1V |
4,444 |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|

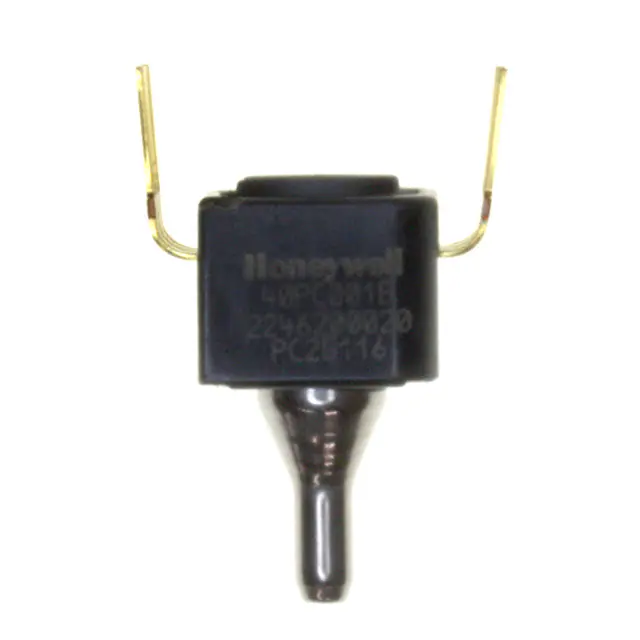

40PC001B2ASENSOR 0.97PSIC 0.18" 6.5V |
3,942 |
|
Datasheet | 40PC | 6-DIP Module | Tube | Active | Board Mount | Compound | ±0.97PSI (±6.69kPa) | Analog Voltage | 2.5 V ~ 6.5 V | ±0.8% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | ±3.29PSI (±22.68kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|

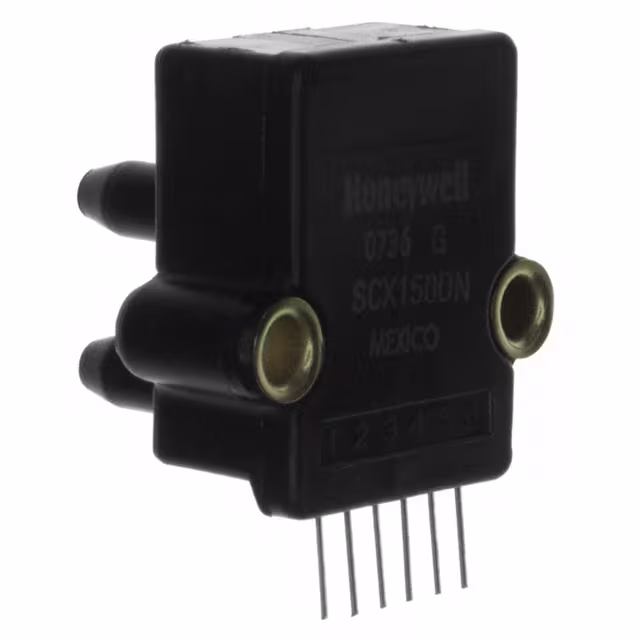

SCX150DNSENSOR 150PSID 0.19" .09V |
4,121 |
|
Datasheet | SCX | 6-SIP Module | Bulk | Obsolete | Board Mount | Differential | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 20V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

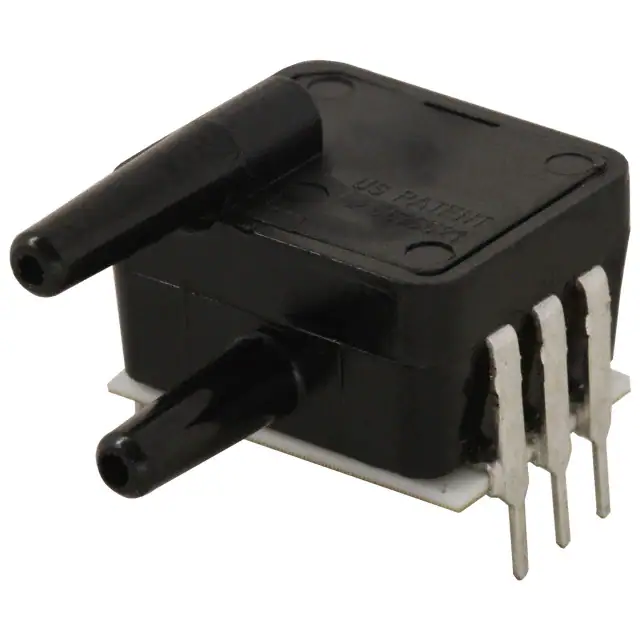

SDX01D4SENSOR 1PSID 0.09" .018V |
2,273 |
|
Datasheet | SDX | 6-DIP Module | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 20V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

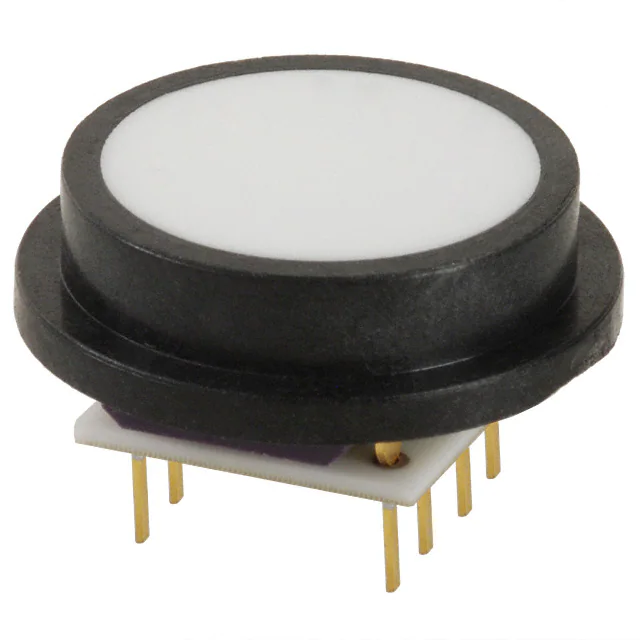

1865-05G-KDNSENSOR 25PSIG 7.5V |
2,004 |
|
Datasheet | 1865 | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 25PSI (172.37kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -28°C ~ 54°C | - | - | Through Hole | - |
|
|
13C1000PA1LSENSOR 1000PSIA .102V |
2,201 |
|
Datasheet | 13 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 1000PSI (6894.76kPa) | Wheatstone Bridge | 98 mV ~ 102 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 3000PSI (20684.27kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C010PG1LSENSOR 10PSIG 0.1V |
4,846 |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 10PSI (68.95kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C500PA1LSENSOR 500PSIA 0.1V |
2,133 |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 1200PSI (8273.71kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
26PCBFG5G38SENSOR 5PSIG 0.25" .05V |
3,128 |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Obsolete | - | Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.25" (6.35mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
