Power Transformers

Explore Power Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Voltage - Primary	Voltage - Secondary (Full Load)	Current - Output (Max)	Primary Winding(s)	Secondary Winding(s)	Center Tap	Power - Max	Mounting Type	Termination Style	Size / Dimension	Height - Seated (Max)	Voltage - Isolation	Weight

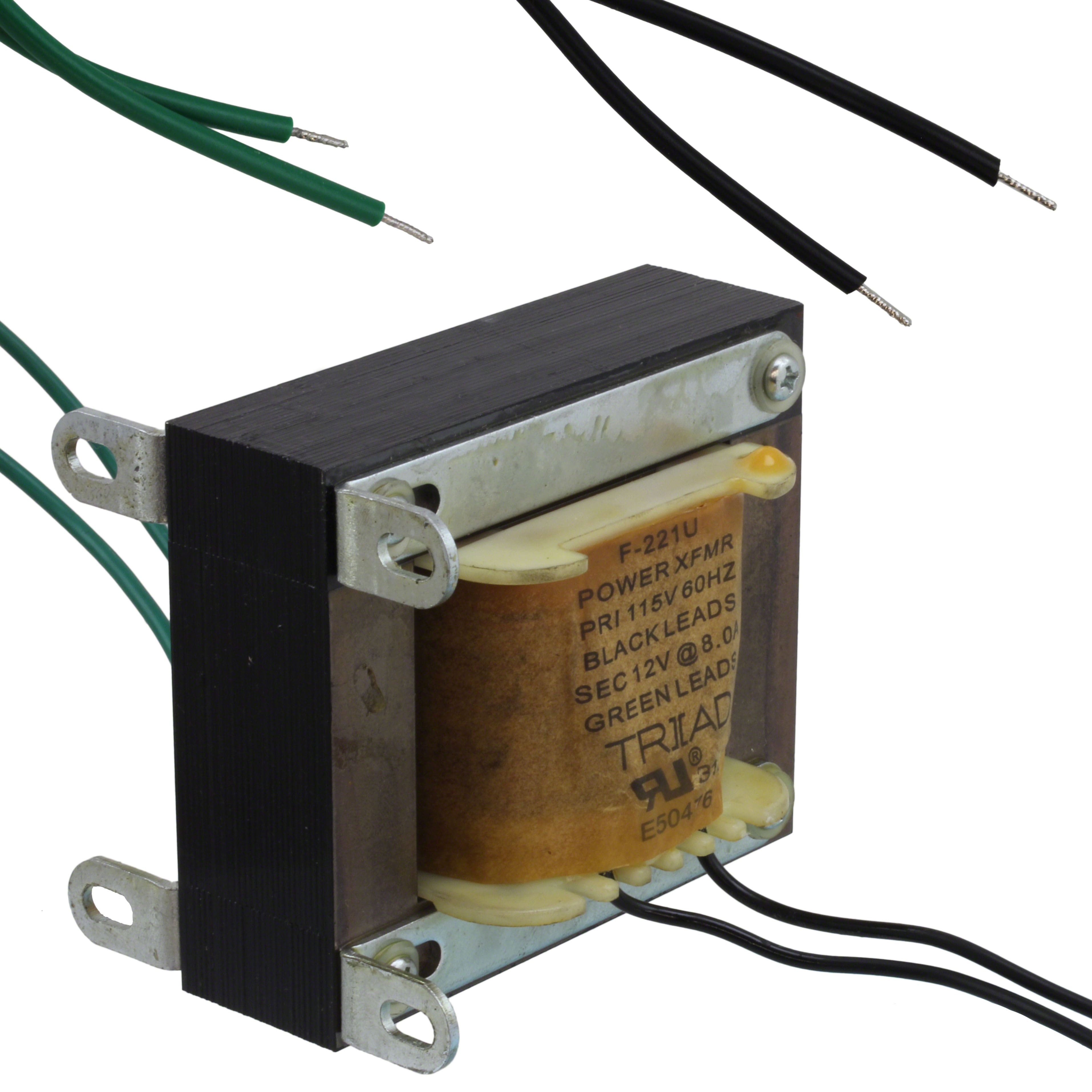

F-221U PWR XFMR LAMINATED 96VA CHAS MT Triad Magnetics	1,078	37.86	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	12V	8A	Single	Single	No	96VA	Chassis Mount	Wire Leads	79.38mm L x 63.50mm W	96.82mm	1500Vrms	4 lbs (1.8 kg)

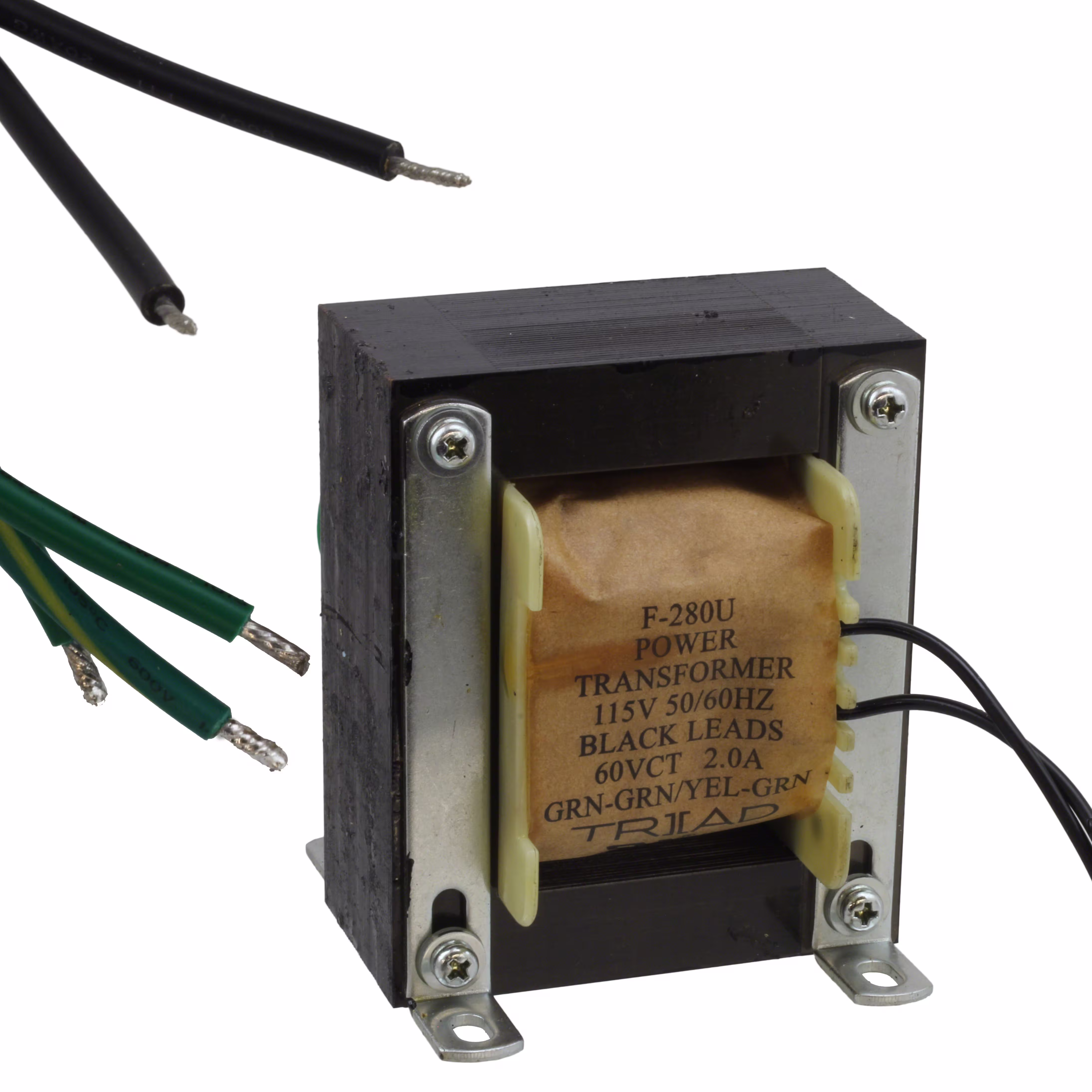

F-280U PWR XFMR LAMINATED 120VA CHAS MT Triad Magnetics	1,605	37.86	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	60V	2A	Single	Single	Yes	120VA	Chassis Mount	Wire Leads	85.73mm L x 79.38mm W	95.25mm	1500Vrms	5.6 lbs (2.5 kg)
185E230 PWR XFMR LAMINATED 80VA CHAS MT Hammond Manufacturing	1,198	37.12	RFQ	Datasheet	185	Bulk	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 700mA, Series 350mA	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 66.29mm W	76.20mm	4000Vrms	2.5 lbs (1.1 kg)
PHC25JGA PWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing	2,512	42.74	RFQ	Datasheet	PHC	Box	Active	Laminated Core	120V	24V	1.04A	Single	Single	No	25VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	58.67mm	-	1.4 lbs (635 g)
166Q6 PWR XFMR LAMINATED 37.8VA CHAS Hammond Manufacturing	4,737	38.79	RFQ	Datasheet	166	Bulk	Active	Laminated Core	115V	6.3V	6A	Single	Single	Yes	37.8VA	Chassis Mount	Wire Leads	93.73mm L x 50.80mm W	58.67mm	2000Vrms	1.7 lbs (771.1 g)
A41-130-28 PWR XFMR LAMINATED 130VA CHAS MT Signal Transformer	2,001	40.94	RFQ	Datasheet	All-4-One™	Box	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 9.2A, Series 4.6A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 76.20mm W	85.70mm	4000Vrms	4.1 lbs (1.9 kg)
F-214U PWR XFMR LAMINATED 96VA CHAS MT Triad Magnetics	3,742	40.26	RFQ	Datasheet	Control Transformers	Box	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 4A, Series 2A	Single	Dual	No	96VA	Chassis Mount	Solder Lug	80.95mm L x 71.42mm W	86.51mm	1500Vrms	3.3 lbs (1.5 kg)
F-108U PWR XFMR LAMINATED 96VA CHAS MT Triad Magnetics	4,178	41.67	RFQ	Datasheet	Control Transformers	Box	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 8A, Series 4A	Dual	Dual	No	96VA	Chassis Mount	Solder Lug	71.42mm L x 63.50mm W	86.51mm	1500Vrms	3.5 lbs (1.6 kg)
166M12B PWR XFMR LAMINATED 37.8VA CHAS Hammond Manufacturing	1,248	21.46	RFQ	Datasheet	166	Box	Active	Laminated Core	117V	12.6V	3A	Single	Single	Yes	37.8VA	Chassis Mount	Wire Leads	-	-	2000Vrms	-
A41-130-16 PWR XFMR LAMINATED 130VA CHAS MT Signal Transformer	3,866	40.94	RFQ	Datasheet	All-4-One™	Box	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 16.2A, Series 8.1A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 76.20mm W	85.70mm	4000Vrms	4.1 lbs (1.9 kg)
166P18 PWR XFMR LAMINATED 90VA CHAS MT Hammond Manufacturing	2,633	42.68	RFQ	Datasheet	166	Bulk	Active	Laminated Core	115V	18V	5A	Single	Single	Yes	90VA	Chassis Mount	Wire Leads	102.36mm L x 63.50mm W	66.80mm	2000Vrms	3 lbs (1.4 kg)
166M24 PWR XFMR LAMINATED 72VA CHAS MT Hammond Manufacturing	3,975	42.68	RFQ	Datasheet	166	Box	Active	Laminated Core	115V	24V	3A	Single	Single	Yes	72VA	Chassis Mount	Wire Leads	102.36mm L x 57.15mm W	66.80mm	2000Vrms	2.5 lbs (1.1 kg)
VPT18-5560 PWR XFMR TOROIDAL 100VA CHAS MT Triad Magnetics	2,194	39.75	RFQ	Datasheet	Chassis Mount: World Series™	Box	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 11.12A, Series 5.56A	Dual	Dual	No	100VA	Chassis Mount	Wire Leads	87.00mm Dia x 47.00mm W	51.0mm	4000Vrms	2.2 lbs (997.9 g)
167N6 PWR XFMR LAMINATED 25.2VA CHAS Hammond Manufacturing	3,647	38.30	RFQ	Datasheet	167	Bulk	Active	Laminated Core	115V	6.3V	4A	Single	Single	Yes	25.2VA	Chassis Mount	Wire Leads	47.75mm L x 61.98mm W	63.50mm	2000Vrms	1.3 lbs (589.7 g)
VPS12-14000 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	1,296	40.47	RFQ	Datasheet	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 28A, Series 14A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms	5.5 lbs (2.5 kg)
VPS36-4800 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	4,481	40.47	RFQ	Datasheet	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 9.6A, Series 4.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms	5.5 lbs (2.5 kg)
VPS20-8800 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	1,033	40.47	RFQ	Datasheet	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 17.6A, Series 8.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms	5.5 lbs (2.5 kg)
A41-175-36 PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	1,769	40.92	RFQ	Datasheet	All-4-One™	Box	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 9.6A, Series 4.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 79.70mm W	95.30mm	4000Vrms	5.5 lbs (2.5 kg)
A41-175-230 PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	3,359	40.92	RFQ	Datasheet	All-4-One™	Box	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.52A, Series 760mA	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 79.70mm W	95.30mm	4000Vrms	5.5 lbs (2.5 kg)
VPM240-210 PWR XFMR TOROIDAL 50VA CHAS MT Triad Magnetics	4,612	49.81	RFQ	Datasheet	Toroidal Medical, VPM	Box	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 120V, Series 240V	Parallel 420mA, Series 210mA	Dual, Multiple Taps	Dual	No	50VA	Chassis Mount	Wire Leads	92.00mm Dia	38.00mm	4000Vrms	1.6 lbs (725.7 g)

FAQ

Frequently Asked Questions

What are Power Transformers components used for?

Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Power Transformers part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
