Power Transformers

Explore Power Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Voltage - Primary	Voltage - Secondary (Full Load)	Current - Output (Max)	Primary Winding(s)	Secondary Winding(s)	Center Tap	Power - Max	Mounting Type	Termination Style	Size / Dimension	Height - Seated (Max)	Voltage - Isolation	Weight
FD8-12 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	1,094	26.82	RFQ	Datasheet	Quick Pack	Box	Active	Laminated Core	115V, 230V	12.6V	8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC	2.8 lbs (1.3 kg)

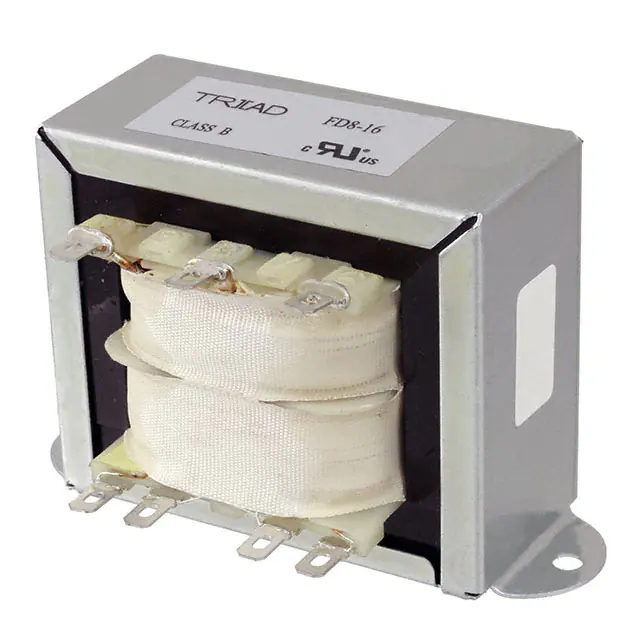

FD8-16 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	4,006	26.82	RFQ	Datasheet	Quick Pack	Box	Active	Laminated Core	115V, 230V	16V	6.25A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC	2.8 lbs (1.3 kg)
162J24 PWR XFMR LAMINATED 36VA TH Hammond Manufacturing	2,218	25.94	RFQ	Datasheet	162	Bulk	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 3A, Series 1.5A	Dual	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.70mm	2500Vrms	1.1 lbs (499 g)
241-8-120 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	1,566	28.72	RFQ	Datasheet	Two-4-One™	Bulk	Active	Laminated Core	115V	120V	850mA	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
62050 PWR XFMR TOROIDAL 15VA CHAS MT Talema Group LLC	1,642	26.87	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 7V, Series 14V	Parallel 2.142A, Series 1.071A	Dual	Dual	No	15VA	Chassis Mount	Wire Leads	-	24.00mm	4000Vrms	0.578 lb (262.18 g)
IF-18-230 PWR XFMR SEMI-TORO 18VA TH Signal Transformer	2,375	27.92	RFQ	Datasheet	IF	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 160mA, Series 80mA	Dual	Dual	No	18VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	27.60mm	4000Vrms	0.882 lb (400.07 g)
166E6 PWR XFMR LAMINATED 0.95VA CHAS Hammond Manufacturing	1,223	27.08	RFQ	Datasheet	166	Bulk	Active	Laminated Core	115V	6.3V	150mA	Single	Single	Yes	0.95VA	Chassis Mount	Wire Leads	53.32mm L x 31.75mm W	30.23mm	2000Vrms	0.3 lb (136.08 g)
241-8-48 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,704	28.72	RFQ	Datasheet	Two-4-One™	Bulk	Active	Laminated Core	115V	48V	2A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
62061 PWR XFMR TOROIDAL 25VA CHAS MT Talema Group LLC	1,401	28.76	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 2.754A, Series 1.377A	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	-	34.50mm	4000Vrms	0.856 lb (388.28 g)
166C50 PWR XFMR LAMINATED 3.75VA CHAS Hammond Manufacturing	1,855	27.80	RFQ	Datasheet	166	Bulk	Active	Laminated Core	115V	50V	75mA	Single	Single	Yes	3.75VA	Chassis Mount	Wire Leads	60.45mm L x 35.05mm W	35.05mm	2000Vrms	0.4 lb (181.44 g)
62055 PWR XFMR TOROIDAL 15VA CHAS MT Talema Group LLC	2,107	28.05	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 22V, Series 44V	Parallel 682mA, Series 341mA	Dual	Dual	No	15VA	Chassis Mount	Wire Leads	-	24.00mm	4000Vrms	0.578 lb (262.18 g)
DP-241-8-48 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,621	29.44	RFQ	Datasheet	Two-4-One™	Bulk	Active	Laminated Core	115V, 230V	48V	2A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
DP-241-8-36 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,606	29.44	RFQ	Datasheet	Two-4-One™	Box	Active	Laminated Core	115V, 230V	36V	2.8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
160H40 PWR XFMR LAMINATED 24VA TH Hammond Manufacturing	2,456	28.24	RFQ	Datasheet	160	Bulk	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 1.2A, Series 600mA	Dual	Single, Multiple Taps	No	24VA	Through Hole	PC Pin	41.40mm L x 57.15mm W	35.05mm	2000Vrms	0.8 lb (362.87 g)
62063 PWR XFMR TOROIDAL 25VA CHAS MT Talema Group LLC	4,910	28.48	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 1.664A, Series 832mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	-	34.50mm	4000Vrms	0.856 lb (388.28 g)
DP-241-8-12 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,651	29.44	RFQ	Datasheet	Two-4-One™	Box	Active	Laminated Core	115V, 230V	12.6V	8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
62064 PWR XFMR TOROIDAL 25VA CHAS MT Talema Group LLC	3,608	28.60	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 1.388A, Series 694mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	-	34.50mm	4000Vrms	0.856 lb (388.28 g)
62065 PWR XFMR TOROIDAL 25VA CHAS MT Talema Group LLC	2,699	28.64	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 22V, Series 44V	Parallel 1.136A, Series 568mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	-	34.50mm	4000Vrms	0.856 lb (388.28 g)
62062 PWR XFMR TOROIDAL 25VA CHAS MT Talema Group LLC	4,898	28.68	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 2.082A, Series 1.041A	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	-	34.50mm	4000Vrms	0.856 lb (388.28 g)
A41-80-20 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	3,819	30.35	RFQ	Datasheet	All-4-One™	Box	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 8A, Series 4A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms	2.8 lbs (1.3 kg)

FAQ

Frequently Asked Questions

What are Power Transformers components used for?

Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Power Transformers part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
