Power Transformers

Explore Power Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Voltage - Primary	Voltage - Secondary (Full Load)	Current - Output (Max)	Primary Winding(s)	Secondary Winding(s)	Center Tap	Power - Max	Mounting Type	Termination Style	Size / Dimension	Height - Seated (Max)	Voltage - Isolation	Weight
A41-80-12 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	1,453	30.35	RFQ	Datasheet	All-4-One™	Box	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 12.6A, Series 6.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms	2.8 lbs (1.3 kg)
DP-241-8-120L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,440	30.45	RFQ	Datasheet	Two-4-One™	Bulk	Active	Laminated Core	115V, 230V	120V	850mA	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms	2.8 lbs (1.3 kg)
VPS10-13000 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	3,610	35.71	RFQ	Datasheet	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 26A, Series 13A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.73mm	4000Vrms	4.1 lbs (1.9 kg)
L01-6370 PWR XFMR TOROIDAL 35VA TH Amgis, LLC	2,049	31.59	RFQ	Datasheet	L01	Tray	Active	Toroidal	115V, 230V	Parallel 7V, Series 14V	Parallel 5A, Series 2.5A	Dual	Dual	No	35VA	Through Hole	PC Pin	72.00mm L x 72.00mm W	37.50mm	4000Vrms	1.3 lbs (589.7 g)
L01-6371 PWR XFMR TOROIDAL 35VA TH Amgis, LLC	1,162	31.59	RFQ	Datasheet	L01	Tray	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 3.888A, Series 1.944A	Dual	Dual	No	35VA	Through Hole	PC Pin	72.00mm L x 72.00mm W	37.50mm	4000Vrms	1.3 lbs (589.7 g)
187F28 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	1,016	30.65	RFQ	Datasheet	187	Box	Active	Laminated Core	115V	28V	3.57A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms	2.7 lbs (1.2 kg)
IF-30-24 PWR XFMR SEMI-TORO 30VA TH Signal Transformer	3,317	32.81	RFQ	Datasheet	IF	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	30VA	Through Hole	PC Pin	68.00mm L x 57.50mm W	35.30mm	4000Vrms	1.3 lbs (589.7 g)
IF-30-20 PWR XFMR SEMI-TORO 30VA TH Signal Transformer	3,573	32.81	RFQ	Datasheet	IF	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 3A, Series 1.5A	Dual	Dual	No	30VA	Through Hole	PC Pin	68.00mm L x 57.50mm W	35.30mm	4000Vrms	1.3 lbs (589.7 g)
166M16 PWR XFMR LAMINATED 48VA CHAS MT Hammond Manufacturing	4,757	31.34	RFQ	Datasheet	166	Bulk	Active	Laminated Core	115V	16V	3A	Single	Single	Yes	48VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	58.67mm	2000Vrms	2 lbs (907.2 g)
IF-30-230 PWR XFMR SEMI-TORO 30VA TH Signal Transformer	1,075	32.81	RFQ	Datasheet	IF	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 260mA, Series 130mA	Dual	Dual	No	30VA	Through Hole	PC Pin	68.00mm L x 57.50mm W	35.30mm	4000Vrms	1.3 lbs (589.7 g)

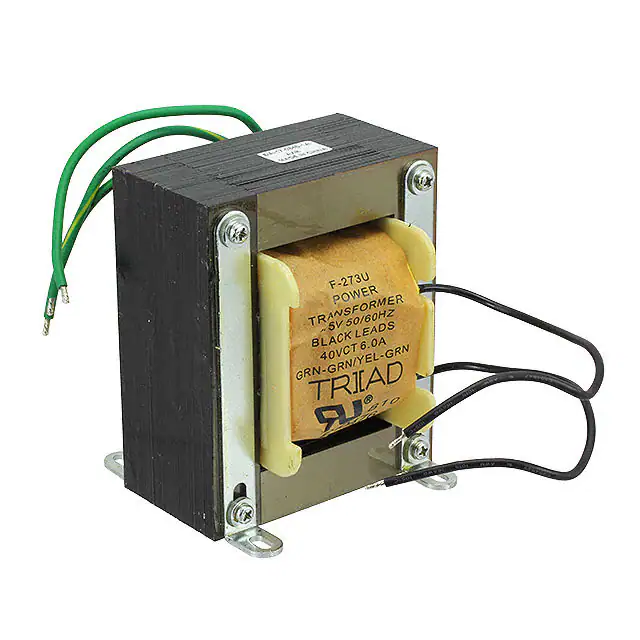

F-273U PWR XFMR LAMINATED 240VA CHAS MT Triad Magnetics	4,548	38.17	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	40V	6A	Single	Single	Yes	240VA	Chassis Mount	Wire Leads	95.25mm L x 101.60mm W	114.30mm	1500Vrms	10 lbs (4.5 kg)
62071 PWR XFMR TOROIDAL 35VA CHAS MT Talema Group LLC	3,124	32.60	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 3.888A, Series 1.944A	Dual	Dual	No	35VA	Chassis Mount	Wire Leads	-	-	4000Vrms	1 lb (453.59 g)
62070 PWR XFMR TOROIDAL 35VA CHAS MT Talema Group LLC	2,092	32.62	RFQ	Datasheet	Standard Mini	Tray	Active	Toroidal	115V, 230V	Parallel 7V, Series 14V	Parallel 5A, Series 2.5A	Dual	Dual	No	35VA	Chassis Mount	Wire Leads	-	-	4000Vrms	1 lb (453.59 g)
229D10 PWR XFMR SEMI-TORO 48VA TH Hammond Manufacturing	1,075	33.14	RFQ	Datasheet	229	Bulk	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 9.6A, Series 4.8A	Dual	Dual	No	48VA	Through Hole	PC Pin	63.50mm L x 79.25mm W	35.05mm	1750Vrms	1.3 lbs (589.7 g)
VPM12-2080 PWR XFMR TOROIDAL 25VA CHAS MT Triad Magnetics	4,016	39.04	RFQ	Datasheet	Toroidal Medical, VPM	Box	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 6V, Series 12V	Parallel 4.16A, Series 2.08A	Dual, Multiple Taps	Dual	No	25VA	Chassis Mount	Wire Leads	84.00mm Dia	37.00mm	4000Vrms	1.1 lbs (499 g)
VPM24-1040 PWR XFMR TOROIDAL 25VA CHAS MT Triad Magnetics	2,630	39.04	RFQ	Datasheet	Toroidal Medical, VPM	Box	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 12V, Series 24V	Parallel 2.08A, Series 1.04A	Dual, Multiple Taps	Dual	No	25VA	Chassis Mount	Wire Leads	84.00mm Dia	37.00mm	4000Vrms	1.1 lbs (499 g)
VPS230-570 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	3,597	35.71	RFQ	Datasheet	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.14A, Series 570mA	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	60.45mm L x 68.33mm W	85.85mm	4000Vrms	4.1 lbs (1.9 kg)
VPS36-3600 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	4,094	35.71	RFQ	Datasheet	Chassis Mount: World Series™	Box	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 7.2A, Series 3.6A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.85mm	4000Vrms	4.1 lbs (1.9 kg)

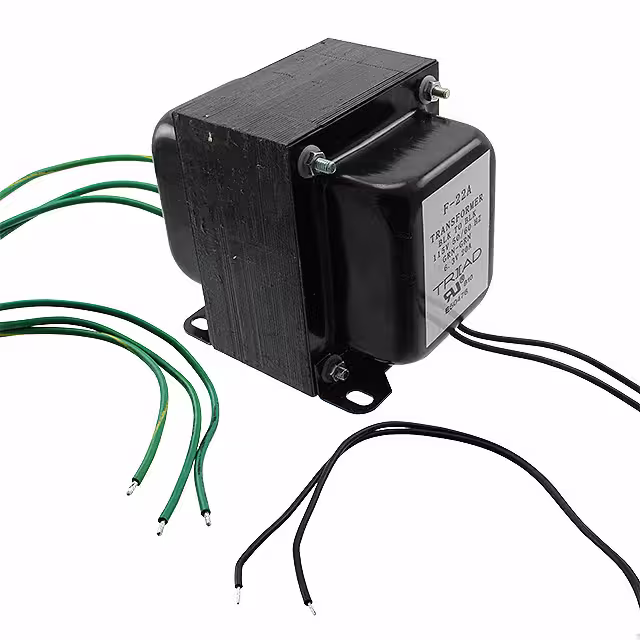

F-22A PWR XFMR LAMINATED 126VA CHAS MT Triad Magnetics	2,540	39.68	RFQ	Datasheet	Single Secondary	Box	Active	Laminated Core	115V	6.3V	20A	Single	Single	Yes	126VA	Chassis Mount	Wire Leads	83.33mm L x 104.77mm W	98.43mm	2000Vrms	7 lbs (3.2 kg)
167G120 PWR XFMR LAMINATED 60VA CHAS MT Hammond Manufacturing	3,246	52.93	RFQ	Datasheet	167	Bulk	Active	Laminated Core	115V	120V	500mA	Single	Single	Yes	60VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms	2.4 lbs (1.1 kg)

FAQ

Frequently Asked Questions

What are Power Transformers components used for?

Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Power Transformers part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
