Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BA15DD0TIC REG LINEAR 1.5V 2A TO220FP-3 |
497 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 25V | 1.5V | - | 0.7V @ 2A | 2A | 120 µA | - | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP |
|
TLE72732GV33XUMA1IC REG LINEAR 3.3V 180MA DSO14 |
2,500 |
|
Datasheet | OPTIREG™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.5V @ 180mA | 180mA | 36 µA | - | 60dB (100Hz) | Enable, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
MAX8863SEUK+TIC REG LIN POS ADJ 120MA SOT23-5 |
2,245 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 6.5V | 1.25V (2.84V) | 6.5V | 0.12V @ 50mA | 120mA | 150 µA | 80 µA | 62dB (300Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
BA90JC5TIC REG LINEAR 9V 1.5A TO220FP-3 |
476 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Active | Positive | Fixed | 1 | 16V | 9V | - | 0.5V @ 500mA | 1.5A | 0.5 mA | 900 µA | 52dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP |
|
MAX17651ATT+50MA, 60V, LOW IQ LINEAR REGULAT |
301 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tray | Active | Positive | Adjustable | 1 | 60V | 0.6V | 58V | 1.1V @ 100mA | 100mA | 15 µA | - | - | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-TDFN (3x3) |
|
TPS7A4515KTTRIC REG LINEAR 1.5V 1.5A DDPAK |
488 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.45V @ 1.5A | 1.5A | 1.5 mA | 90 mA | 68dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TL750L05CKTTRIC REG LIN 5V 150MA DDPAK/TO263 |
960 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
SC4211HSTRTIC REG LIN POS ADJ 1A 8SOIC |
2,098 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Not For New Designs | Positive | Adjustable (Fixed) | 1 | 6V | 0.5V | 5.5V | 0.5V @ 1A | 1A | 50 µA | 3 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC, EDP |
|
LT3065IDD-1.5#PBFIC REG LINEAR 1.5V 500MA 10DFN |
4,861 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 1.5V | - | 0.51V @ 500mA | 500mA | 110 µA | 25 mA | 78dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
TPL6305AD-ES1R-SIC REG LINEAR ADJ 3A 8-ESOP |
4,000 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.5V | 5.2V | 0.3V @ 3A | 3A | 15 mA | 15 mA | 63dB ~ 35dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-ESOP |
|
TPL9208AD-DF5R-SLINEAR VOLTAGE REGULATOR IC POSI |
3,918 |
|
Datasheet | - | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 5.2V | 0.2V @ 2A | 2A | 15 mA | 15 mA | 63dB ~ 60dB (1kHz ~ 1MHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x2.5) |
|
REG1117FA-1.8KTTTIC REG LIN 1.8V 1A DDPAK/TO263-3 |
1,182 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 1.8V | - | 1.55V @ 1A | 1A | 10 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
RTQ2539AGQWFIC LDO LOW NOISE ADJ 3A WQFN-12 |
1,488 |
|
Datasheet | - | 12-WFQFN | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 5.5V | 0.18V @ 3A | 3A | 4 mA | 5.5 mA | 42dB ~ 25dB (10kHz ~ 500kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-WQFN (FC) (2.2x2.5) |
|
BA50BC0WTIC REG LINEAR 5V 1A TO220-5 |
498 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 16V | 5V | - | - | 1A | 0.5 mA | 900 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C | - | - | Through Hole | TO-220FP-5 |
|
TPS7A5310AQWRTJRQ1AUTOMOTIVE, 3-A, LOW-VIN 5.6-VRM |
2,988 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1V | - | 0.29V @ 3A | 3A | 1.3 mA | - | 70dB ~ 27dB (1kHz ~ 3MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 20-WQFN (4x4) |
|
MAX1726EUK18+TIC REG LINEAR 1.8V 20MA SOT23-5 |
2,170 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.8V | - | - | 20mA | 4.5 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MIC5239-2.5YMM-TRIC REG LINEAR 2.5V 500MA 8MSOP |
4,398 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 2.5V | - | 0.35V @ 500mA (Typ) | 500mA | 45 µA | 15 mA | - | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|

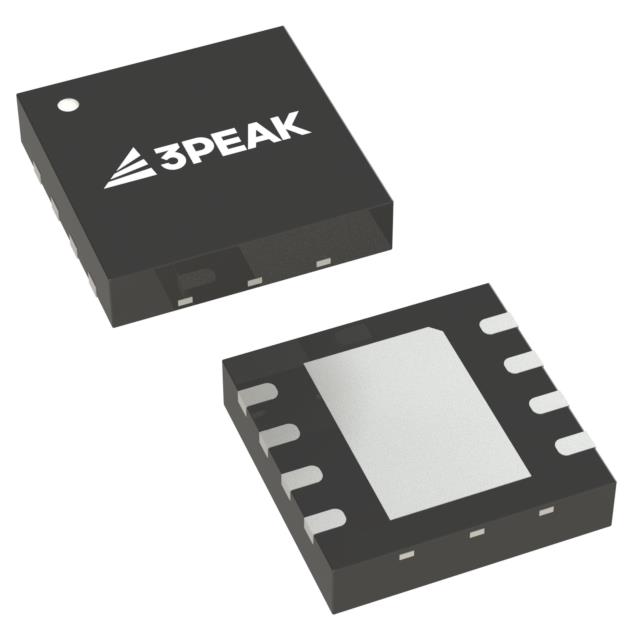

TPL8151AD-DF9RLINEAR VOLTAGE REGULATOR IC ADJU |
2,873 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 29V | 1.25V | 25V | 1.5V @ 1.5A | 1.5A | 10 mA | - | 77dB ~ 35dB (120Hz ~ 100kHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (4x4) |
|
|
BA033CC0WTIC REG LINEAR 3.3V 1A TO220-5 |
493 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 3.3V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA09CC0WTIC REG LINEAR 9V 1A TO220-5 |
490 |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 9V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
