Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX15006BASA/V+IC REG LINEAR 5V 50MA 8SOIC |
353 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.525V @ 50mA | 50mA | 17 µA | 150 µA | 66dB (100Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
RTQ2540HN-TAIC LDO LOW NOISE ADJ 4A WQFN-12 |
1,000 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPS78630KTTTIC REG LIN 3V 1.5A DDPAK/TO263-5 |
136 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.55V @ 1.5A | 1.5A | 385 µA | - | 59dB ~ 32dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
TPS78628KTTTIC REG LINEAR 2.8V 1.5A DDPAK |
2,722 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.58V @ 1.5A | 1.5A | 385 µA | - | 59dB ~ 32dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TPL8151ADQ-ES1R-SLINEAR VOLTAGE REGULATOR IC POSI |
4,000 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-ESOP |
|
TPL9308AD-QF6R-SLINEAR VOLTAGE REGULATOR IC POSI |
3,986 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 5.2V | 0.3V @ 3A | 3A | 15 mA | 15 mA | 65dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (3.5x3.5) |
|
LT3009ESC8-2.5#TRPBFIC REG LINEAR 2.5V 20MA SC70-8 |
2,432 |
|
Datasheet | - | 8-VFSOP (0.049", 1.25mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-8 |
|
TPS78601DRBTIC REG LINEAR POS ADJ 1.5A 8SON |
250 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | 0.47V @ 1.5A | 1.5A | 385 µA | - | 59dB ~ 32dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
TPS76750QPWPRQ1IC REG LINEAR 5V 1A 20HTSSOP |
1,986 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.38V @ 1A | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
ADP3309ARTZ-3.6-R7IC REG LINEAR 3.6V 100MA SOT23-5 |
3,000 |
|
Datasheet | anyCAP® | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.6V | - | 0.25V @ 100mA | 100mA | 300 µA | 2 mA | - | Error Flag, Shutdown | Over Temperature | -20°C ~ 80°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
MAX16910CASA9+TIC REG LIN POS ADJ 200MA 8SOIC |
2,290 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
BD50FD0WFP2-E22A 5V, FIXED OUTPUT, HIGH-ACCURA |
500 |
|
Datasheet | BDxxFD0 | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 32V | 5V | - | 0.55V @ 1A | 2A | 1 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | - | - | Surface Mount | TO-263-5 |
|
|
MAX16910CASA8+TIC REG LIN POS ADJ 200MA 8SOIC |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
BD50C0AFP2-CE235V VOLTAGE RESISTANCE 1A, HIGH- |
415 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 5V | - | 0.5V @ 500mA | 1A | 2.5 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TO-263-3F |
|
|
MAX38903CANL+TIC REG LIN POS PROG 1A 9WLP |
2,101 |
|
Datasheet | - | 9-XFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Programmable | 1 | 5.5V | 0.6V | 5V | 0.3V @ 1A | 1A | 2 mA | - | 70dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 9-WLP (1.37x1.34) |
|
BD3570FP-E2IC REG LINEAR 3.3V 500MA TO252-3 |
1,492 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 36V | 3.3V | - | - | 500mA | 30 µA | 50 µA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252 |
|
MAX8860EUA25+TIC REG LIN POS ADJ 300MA 8UMAX |
2,445 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 6.5V | 1.25V (2.5V) | 6.5V | 0.155V @ 300mA (Typ) | 300mA | 270 µA | - | - | Enable, Fault Output | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
BD50C0AWFP2-CE235V VOLTAGE RESISTANCE 1A, HIGH- |
500 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 5V | - | 0.5V @ 500mA | 1A | 2.5 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
|

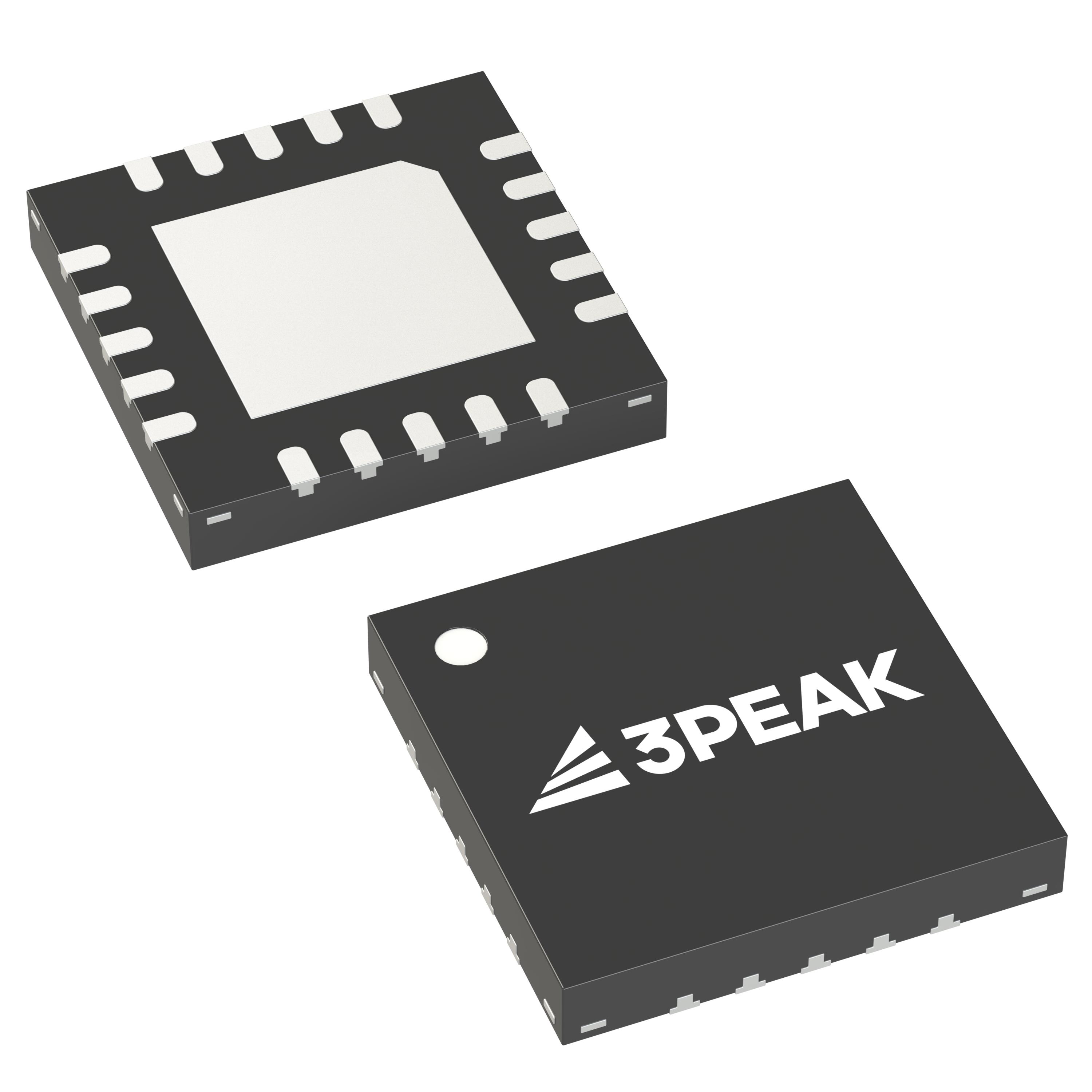

TPL9208AD-QF7R-SLINEAR VOLTAGE REGULATOR IC POSI |
2,900 |
|
Datasheet | - | 20-WQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 5.2V | 0.2V @ 2A | 2A | 15 mA | 15 mA | 63dB ~ 60dB (1kHz ~ 1MHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (5x5) |
|
MAX15006BATT+IC REG LINEAR 5V 50MA 6TDFN |
352 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tube | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.525V @ 50mA | 50mA | 17 µA | 150 µA | 66dB (100Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-TDFN (3x3) |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
