Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX8840ELT29+TIC REG LINEAR 2.85V 150MA 6UDFN |
2,500 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.9V | - | 0.135V @ 120mA (Typ) | 150mA | 90 µA | - | 78dB ~ 54dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-uDFN (1.5x1.0) |
|
MAX8840ELT30+TIC REG LINEAR 3V 150MA 6UDFN |
2,420 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.12V @ 120mA (Typ) | 150mA | 90 µA | - | 78dB ~ 54dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-uDFN (1.5x1.0) |
|
|
MAX8841ELT18+TIC REG LINEAR 1.8V 150MA 6UDFN |
1,815 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | - | 150mA | 90 µA | - | 72dB ~ 46dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|
MAX5024SASA/V+IC REG LIN POS ADJ 150MA 8SOIC |
2,638 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 1 | 65V | 2.5V (3.3V) | 11V | 1.5V @ 150mA | 150mA | 140 µA | - | 54dB (100Hz) | Enable, Hold, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
MPQ2013DGJE-5-AEC1-P40V, 100MA, LOW QUIESCENT CURREN |
500 |
|
Datasheet | - | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.9V @ 100mA | 100mA | 10 µA | 50 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013DGJE-25-AEC1-P40V, 100MA, LOW QUIESCENT CURREN |
500 |
|
Datasheet | - | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 2.5V | - | 0.9V @ 100mA | 100mA | 10 µA | 40 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013DGJE-AEC1-P40V, 100MA, LOW QUIESCENT CURREN |
500 |
|
Datasheet | - | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 0.9V @ 100mA | 100mA | 9 µA | 50 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013DGJE-33-AEC1-P40V, 100MA, LOW QUIESCENT CURREN |
460 |
|
Datasheet | - | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.9V @ 100mA | 100mA | 10 µA | 50 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
NCV4299CD250R2GIC REG LINEAR 5V 150MA 14SOIC |
2,500 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 90 µA | 2 mA | 66dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
TPS76815QDIC REG LINEAR 1.5V 1A 8SOIC |
290 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 10V | 1.5V | - | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
RTQ2538HN-TAIC LDO LOW NOISE ADJ 2A WQFN-12 |
1,350 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NCV57152MNADJTYGIC REG LINEAR POS ADJ 1.5A 8DFN |
3,703 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 13.5V | 1.24V | 13V | 0.52V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-DFN (4x4) |
|
TPL9053AD-DF4R-SIC REG LINEAR ADJ 500MA 8-DFN |
3,000 |
|
Datasheet | TPL9053-S | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5.3V | 0.3V @ 500mA | 500mA | 180 µA | - | 89dB (1kHz), 82dB ~ 55dB (100Hz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
LP38869MHE/NOPBIC REG LIN POS ADJ 1A 16HTSSOP |
232 |
|
Datasheet | - | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 0.8V (2.5V) | 5V | 0.33V @ 1A | 1A | 8.5 mA | 15 mA | 54dB (100Hz) | Enable, Soft Start | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 16-HTSSOP |
|
ADP322ACPZ-135-R7IC REG LIN 1.8/2.5/3.3V 16LFCSP |
751 |
|
Datasheet | - | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 3 | 5.5V | 1.8V, 2.5V, 3.3V | - | -, 0.17V @ 200mA, 0.17V @ 200mA | 200mA, 200mA, 200mA | 160 µA | 380 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 16-LFCSP-WQ (3x3) |
|
ADM7160ACPZN2.5-R2IC REG LINEAR 2.5V 200MA 6LFCSP |
200 |
|
Datasheet | - | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.23V @ 200mA | 200mA | 20 µA | 350 µA | 54dB ~ 43dB (100kHz ~ 1MHz) | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
BA05TIC REG LINEAR 5V 1A TO220FP |
228 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Not For New Designs | Positive | Fixed | 1 | 25V | 5V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|

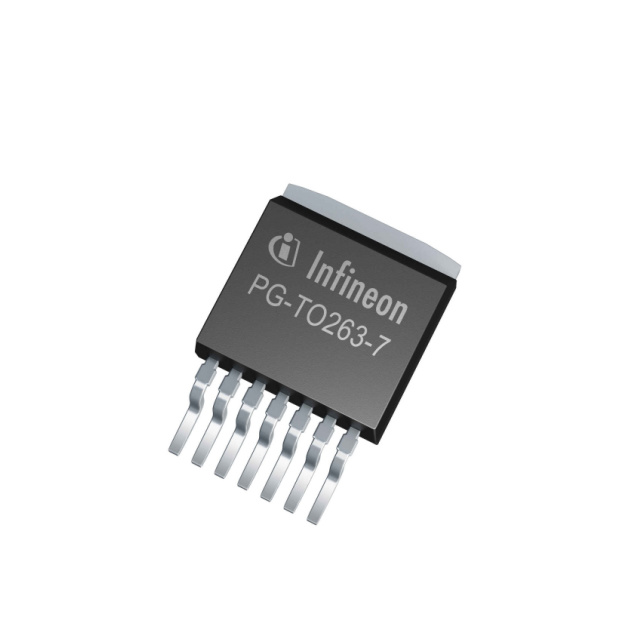

TLE42672GATMA1IC REG LINEAR 5V 400MA TO263-7-1 |
1,000 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 400mA | 400mA | 4 mA | 80 mA | 54dB (100Hz) | Inhibit, Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-1 |
|
LP2985A-29DBVRIC REG LINEAR 2.9V 150MA SOT23-5 |
2,998 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.9V | - | 0.58V @ 150mA | 150mA | 95 µA | 2.5 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
MPQ2019GN-33-AEC1-ZIC REG LINEAR 3.3V 300MA 8SOIC |
2,500 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.6V @ 300mA | 300mA | 95 µA | - | 45dB (1kHz) | Enable, Power Good | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
