Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD6836TD/33P,125IC REG LINEAR 3.3V 300MA 5TSOP |
3,784 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 300mA | 300mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
MIC94325YMT-T5IC REG LIN POS ADJ 500MA 6TDFN |
4,021 |
|
Datasheet | Ripple Blocker™ | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 3.6V | 1.2V | 3.4V | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
LM2937ES-2.5IC REG LIN 2.5V 500MA DDPAK |
3,757 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 26V | 2.5V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LM2990T-5.2IC REG LINEAR -5.2V 1.8A TO220-3 |
1,720 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -26V | -5.2V | - | 1V @ 1A | 1.8A | 1 mA | 5 mA | 58dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
LM723CNIC REG LIN POS ADJ 150MA 14DIP |
4,330 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | - | - | 86dB ~ 74dB (50Hz ~ 10kHz) | Current Limit, Frequency Control | Short Circuit | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
LM9076S-3.3IC REG LINEAR 3.3V 150MA DDPAK |
3,493 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 0.25V @ 150mA | 150mA | 45 µA | 4.5 mA | 60dB (120kHz) | Reset | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP2954AISIC REG LIN 5V 250MA DDPAK/TO263 |
3,473 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 250mA | 250mA | 150 µA | 33 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LP2957AITIC REG LINEAR 5V 250MA TO220-5 |
1,885 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 250mA | 250mA | 200 µA | 33 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
ISL9003IECZ-TIC REG LINEAR 1.8V 150MA SC70-5 |
2,009 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.8V | - | - | 150mA | 39 µA | 56 µA | 90db ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
ISL9003IEKZ-TIC REG LINEAR 2.85V 150MA SC70-5 |
3,390 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.85V | - | 0.325V @ 150mA | 150mA | 39 µA | 56 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
ISL9003IEMZ-TIC REG LINEAR 3V 150MA SC70-5 |
1,921 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3V | - | 0.325V @ 150mA | 150mA | 39 µA | 56 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
ISL9003IENZ-TIC REG LINEAR 3.3V 150MA SC70-5 |
2,439 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.325V @ 150mA | 150mA | 39 µA | 56 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|

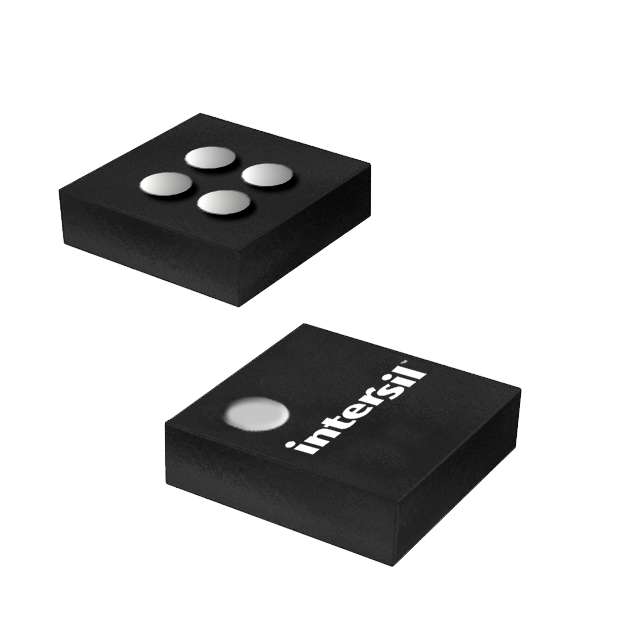

ISL9021AIIUZ-TIC REG LINEAR 3.1V 250MA 4WLCSP |
1,432 |
|
Datasheet | - | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.25V @ 250mA | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (1.16x0.98) |
|
ISL9021AIRUYZ-TIC REG LINEAR 0.9V 250MA 6UTDFN |
2,842 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.9V | - | - | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9003IEBZ-TIC REG LINEAR 1.5V 150MA SC70-5 |
4,914 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.5V | - | - | 150mA | 39 µA | 56 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
ISL9003IEFZ-TIC REG LINEAR 2.5V 150MA SC70-5 |
3,044 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.4V @ 150mA | 150mA | 39 µA | 56 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
ISL9003IEHZ-TIC REG LINEAR 2.75V 150MA SC70-5 |
3,481 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.75V | - | 0.4V @ 150mA | 150mA | 39 µA | 56 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
ISL9003IEJZ-TIC REG LINEAR 2.8V 150MA SC70-5 |
3,274 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.4V @ 150mA | 150mA | 39 µA | 56 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|

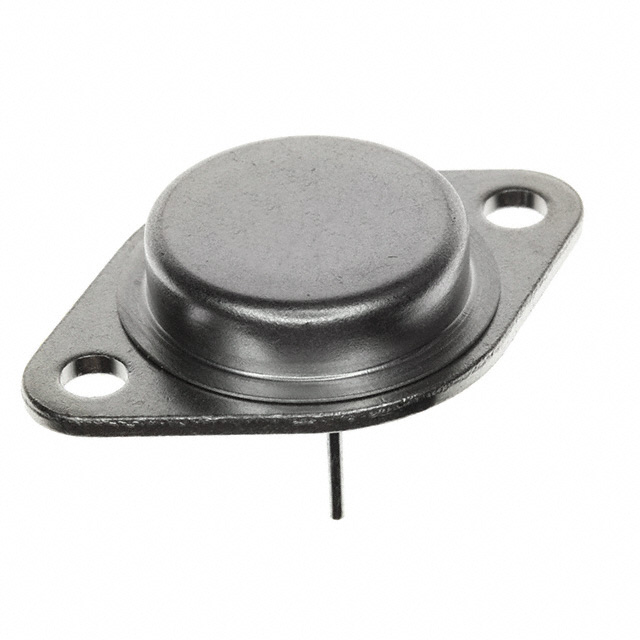

SG117AK-883BIC REG LINEAR POS ADJ 1.5A TO3 |
4,927 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
|
SG117AK-DESCIC REG LINEAR POS ADJ 1.5A TO3 |
1,812 |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
