Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP4688DSN28T1GIC REG LINEAR 2.8V 150MA SOT23-5 |
4,235 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.8V | - | 0.28V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCV33269DR2GIC REG LIN POS ADJ 800MA 8SOIC |
1,663 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.65V | 1.35V @ 800mA | 800mA | - | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
NCV85081BDS50GIC REG LINEAR 5V 250MA D2PAK-7 |
2,610 |
|
Datasheet | - | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.9V @ 150mA | 250mA | 150 µA | - | - | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-7 |
|
NCV87722D5S33R4GIC REG LINEAR 3.3V 350MA D2PAK-5 |
3,060 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 0.875V @ 350mA | 350mA | 29 µA | 30 µA | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-5 |
|
NCV87722DT50RKGIC REG LINEAR 5V 350MA DPAK-5 |
2,472 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.875V @ 350mA | 350mA | 29 µA | 30 µA | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
L4949EP-EIC REG LINEAR 5V 100MA 20SO |
2,181 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 300 µA | 5 mA | - | Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-SO |
|

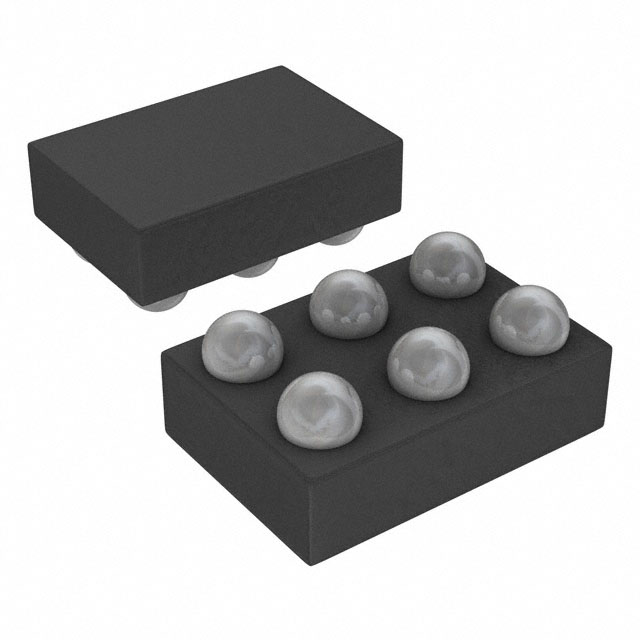

AS1374-BWLT1827IC REG LINEAR 1.8V/2.7V 6WLCSP |
2,489 |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.7V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
MIC94310-PYMT-T5IC REG LINEAR 3V 200MA 4TDFN |
4,901 |
|
Datasheet | Ripple Blocker™ | 4-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 3.6V | 3V | - | 0.1V @ 200mA | 200mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 10MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-TDFN (1.2x1.6) |
|
MIC94310-SYMT-T5IC REG LINEAR 3.3V 200MA 4TDFN |
4,039 |
|
Datasheet | Ripple Blocker™ | 4-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 3.6V | 3.3V | - | 0.1V @ 200mA | 200mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 10MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-TDFN (1.2x1.6) |
|

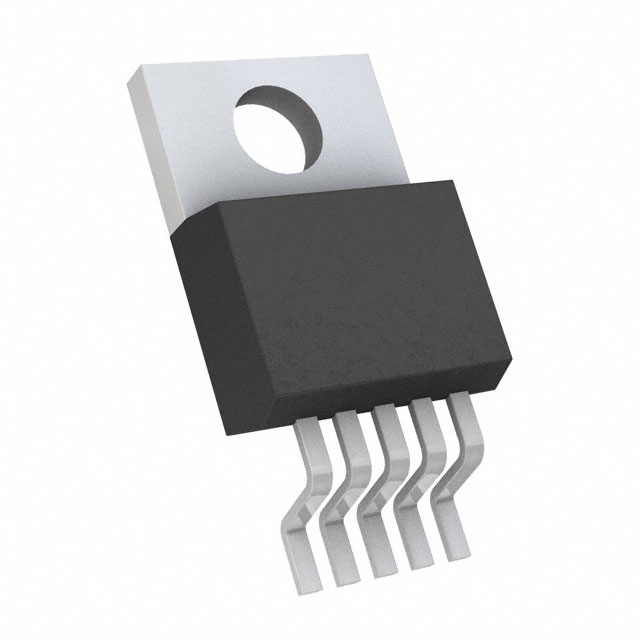

LT1764AET#33PBFIC REG LIN POS ADJ 3A TO220-5 |
4,495 |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Discontinued at Digi-Key | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 33 |
|
NCV4274ADS33R4GIC REG LINEAR 3.3V 400MA D2PAK |
1,356 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 1.27V @ 250mA | 400mA | 250 µA | 45 mA | 60dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
IFX21004TNV51AKSA1IC REG LINEAR 5V/15V TO220-5 |
4,298 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Fixed | 2 | 40V | 5V, 15V | - | 10V @ 100mA, 6V @ 30mA | 100mA, 30mA | 1 mA | 3.5 mA | 55dB (100Hz), 50dB (100Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Through Hole | PG-TO220-5 |
|

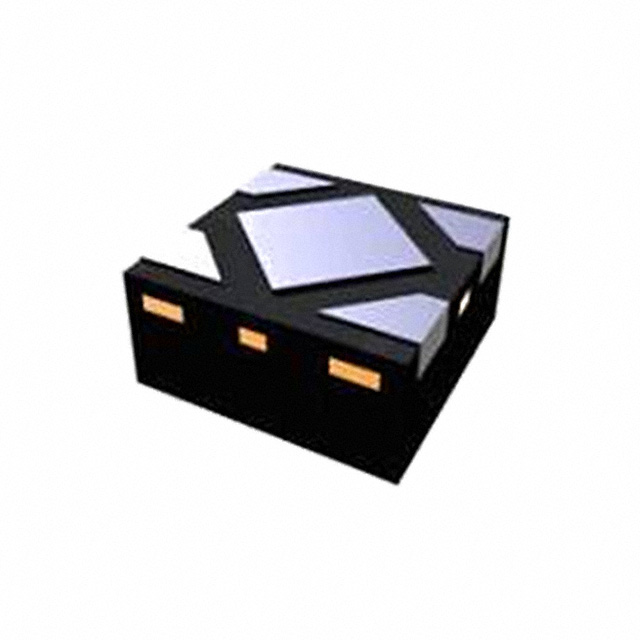

LD6805K/33H,115IC REG LIN 3.3V 150MA DFN1010C-4 |
4,421 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.25V @ 150mA | 150mA | 35 µA | 150 µA | 75dB (1kHz) | Enable | Over Current, Transient Voltage | -40°C ~ 85°C | - | - | Surface Mount | DFN1010C-4 |
|
LD6806CX4/12P,315IC REG LINEAR 1.2V 200MA 4WLCSP |
4,213 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.1V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
LD6806TD/30H,125IC REG LINEAR 3V 200MA 5TSOP |
2,803 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.13V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
|
LD6806TD/33H,125IC REG LINEAR 3.3V 200MA 5TSOP |
4,376 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.13V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
|
LD6806TD/33P,125IC REG LINEAR 3.3V 200MA 5TSOP |
4,469 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.13V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
|
LD6836CX4/18H,315IC REG LINEAR 1.8V 300MA 4WLCSP |
4,219 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.16V @ 300mA | 300mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
|
LD6836TD/33H,125IC REG LINEAR 3.3V 300MA 5TSOP |
2,690 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 300mA | 300mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
FT531GAIC REG LINEAR 2.8V 250MA SOT23-5 |
3,792 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.12V @ 100mA | 250mA | 36 µA | - | 72dB ~ 60dB (1kHz ~ 10kHz ) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
Frequently Asked Questions
What are Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components used for?
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Voltage Regulators - Linear, Low Drop Out (LDO) Regulators part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
